1696680-00 - Snapper 46"/117cm Mower Deck 46" (117cm) Mower Deck - Housing, Arbor & Blades Group Parts Diagram

46"/117cm Mower Deck

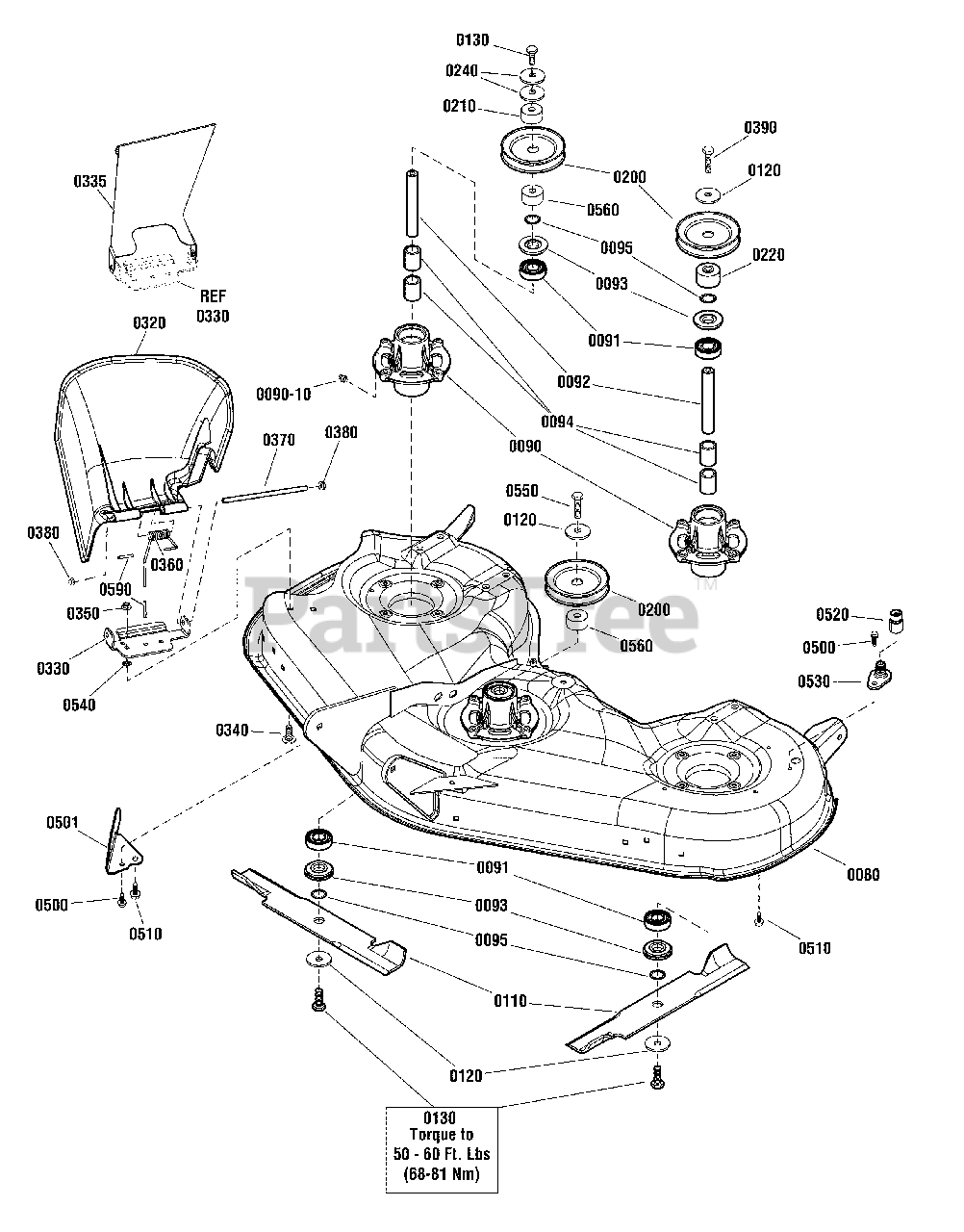

46" (117cm) Mower Deck - Housing, Arbor & Blades Group Parts Diagram

  • Title

0080

Snapper 1687461YP

HOUSING, Mower Deck, 46"
(Superseded to 1687625YP)

$564.99

$

Usually ships in 2-12 days

0

0090

Snapper 1735573YP

HOUSING, w/Lube Fittting
(Superseded to 84003654)

$43.99

$

In Stock, Qty 8

0

0090-10

Snapper 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0091

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0092

Snapper 1735326YP

SHAFT, Spindle
(Superseded to 1760276YP)

$27.99

$

In Stock, only 4 left!

0

0093

Snapper 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, only 2 left!

0

0094

Snapper 1735328YP

SPACER, Bearing

$6.49

$

In Stock, only 3 left!

0

0095

Snapper 1960766YP

RING, Self Lock

$4.49

$

In Stock, Qty 20+

0

0110

Snapper 1739889AYP

BLADE, 46" Mower

$27.99

$

In Stock, Qty 20+

0

0120

Snapper 1656916SM

WASHER, Spring, 0.475ID x 1-3/4 OD

$7.49

$

In Stock, Qty 20+

0

0130

Snapper 1920676SM

CAPSCREW, Hex Head, 7/16-14 x 1, G5

$5.49

$

In Stock, Qty 12

0

0200

Snapper 1735686YP

PULLEY, 4.6, Split

$19.99

$

In Stock, only 2 left!

0

0210

Snapper 1735579YP

SPACER, Lower Drive

$7.49

$

In Stock, only 1 left!

0

0220

Snapper 1757967YP

SPACER, Pulley"

$53.99

$

Usually ships in 2-12 days

0

0240

Snapper 1960769YP

WASHER, Belleville"

$4.99

$

In Stock, only 1 left!

0

0320

Snapper 1754745YP

DEFLECTOR, 46/52"
(Superseded to 1687750YP)

$37.99

$

In Stock, Qty 20+

0

0330

Snapper 1758935AYP

BRACKET, Hinge

$58.99

$

In Stock, only 1 left!

0

0335

Snapper 1758935AYP

SUPPORT, Deflector

$58.99

$

In Stock, only 1 left!

0

0340

Snapper 703125

BOLT, Carriage, 5/16-18 x 5/8, GR5

$3.99

$

In Stock, only 2 left!

0

0350

Snapper 703409

NUT, Flange, 5/16-18, GR5"

$5.49

$

In Stock, Qty 20+

0

0360

Snapper 1759042YP

SPRING, Torsion

$6.49

$

Usually ships in 2-12 days

0

0370

Snapper 1759064YP

ROD, Deflector

$8.49

$

Usually ships in 2-12 days

0

0380

Snapper 7012542YP

NUT, Push, 5/16"
(Superseded to 704028)

$5.49

$

In Stock, only 3 left!

0

0390

Snapper 706301

CAPSCREW, Hex Head, 7/16-14 x 2-1/2, GR5

$5.99

$

Usually ships in 2-12 days

0

0500

Snapper 703228

SCREW, Thread Roll, 5/16-18 x 3/4"

$4.49

$

In Stock, Qty 20+

0

0501

Snapper 1737279BMYP

BAFFLE, Pinchoff

$16.99

$

In Stock, only 1 left!

0

0510

Snapper 1930600SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2"

$4.99

$

In Stock, Qty 19

0

0520

Snapper 1756246YP

CONNECTOR, Washout Port

$15.99

$

In Stock, only 1 left!

0

0530

Snapper 1756247YP

ADAPTER, Washout Port"

$6.49

$

In Stock, only 1 left!

0

0540

Snapper 703297

RETAINER, 5/16, GR5

$3.99

$

In Stock, Qty 20+

0

0550

Snapper 703171

CAPSCREW, Hex Head, 7/16-14 x 1-3/4, GR5

$3.99

$

In Stock, Qty 6

0

0560

Snapper 1736445YP

SPACER, Pulley

$13.99

$

In Stock, only 1 left!

0

0590

Snapper 5023489SM

PROTECTOR, Cap

$3.99

$

Usually ships in 2-12 days

0
