1696680-00 - Snapper 46"/117cm Mower Deck 46" (117cm) Mower Deck - Height Adjustment Group Parts Diagram

46"/117cm Mower Deck

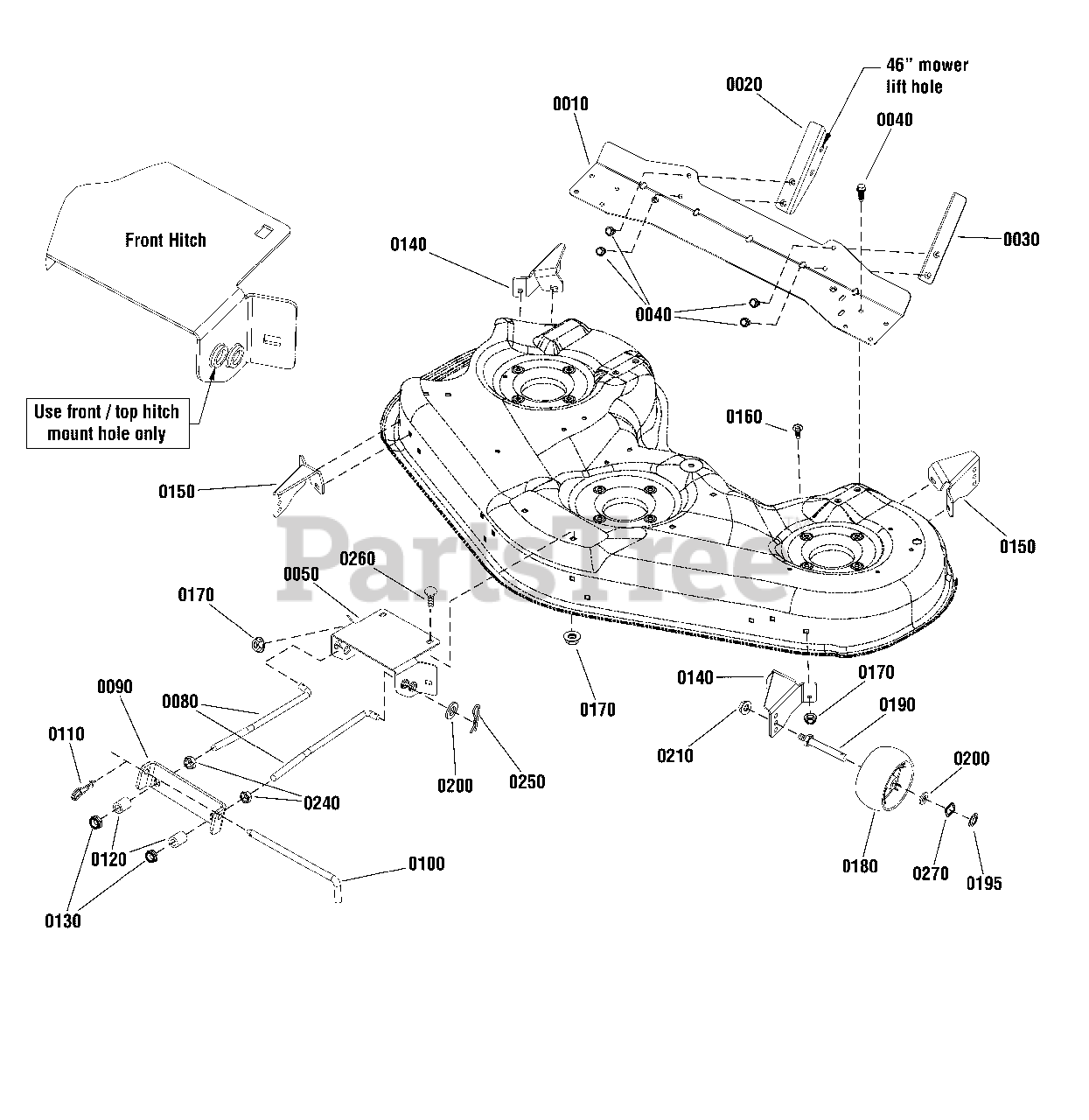

46" (117cm) Mower Deck - Height Adjustment Group Parts Diagram

  • Title
0010

Snapper 1736070BMYP

SUPPORT, Rear Cross

$82.99

$

Usually ships in 2-12 days

0

0020

Snapper 1736072AYP

BRACKET, Rear Mower Pickup

$19.99

$

Usually ships in 2-12 days

0

0030

Snapper 1736073AYP

BRACKET, Rear Mower Pickup

$11.99

$

Usually ships in 2-12 days

0

0040

Snapper 703228

SCREW, Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0050

Snapper 1736071BMYP

HITCH, Front

$29.99

$

Usually ships in 2-12 days

0

0080

Snapper 1736081YP

ROD, Front Bail

$12.99

$

Usually ships in 2-12 days

0

0090

Snapper 1737059AYP

HANGER, Front Mower

$17.99

$

Usually ships in 2-12 days

0

0100

Snapper 1731414SM

ROD, Latch, 1/2 x 9

$14.99

$

In Stock, only 1 left!

0

0110

Snapper 703852

PIN, 5/16 X 0.375, Spring Retainer

$4.49

$

In Stock, Qty 20+

0

0120

Snapper 1679166SM

SPACER, 1/2 ID x 7/8 OD x 1-3/16

$7.49

$

In Stock, only 4 left!

0

0130

Snapper 1960379SM

NUT, 1/2-13

$4.99

$

In Stock, Qty 18

0

0140

Snapper 1736074BMYP

BRACKET, Gauge Wheel

$15.99

$

Usually ships in 2-12 days

0

0150

Snapper 1736075BMYP

BRACKET, Gauge Wheel

$14.99

$

In Stock, Qty 14

0

0160

Snapper 704065

BOLT, Carriage, 5/16-18 x 7/8, G5

$4.49

$

In Stock, Qty 5

0

0170

Snapper 703409

NUT, Flange, 5/16-18, GR5

$5.49

$

In Stock, Qty 20+

0

0180

Snapper 1736896YP

WHEEL, Gauge, .505" ID, 5" OD, 2.58

$16.99

$

In Stock, Qty 6

0

0190

Snapper 1736539

BOLT, 3/8-16X.63, 3.0"X 1/2
(Superseded to 1736539YP)

$8.99

$

Usually ships in 2-12 days

0

0195

Snapper 705437

PUSHNUT, 1/2

$4.49

$

In Stock, only 2 left!

0

0200

Snapper 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0

0210

Snapper 703893

NUT, Hex Flange, 3/8-16

$6.99

$

In Stock, Qty 20+

0

0240

Snapper 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

In Stock, Qty 20+

0

0250

Snapper 703300

PIN, Hair, 3/32 x 1-5/8

$3.99

$

In Stock, Qty 20+

0

0260

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4, G5

$3.49

$

In Stock, Qty 20+

0

0270

Snapper 0020X3MA

WASHER, Spring

$4.49

$

Usually ships in 2-12 days

0
