1696680-00 - Snapper 46"/117cm Mower Deck 46" (117cm) Mower Deck - French Guard Group Parts Diagram

46"/117cm Mower Deck

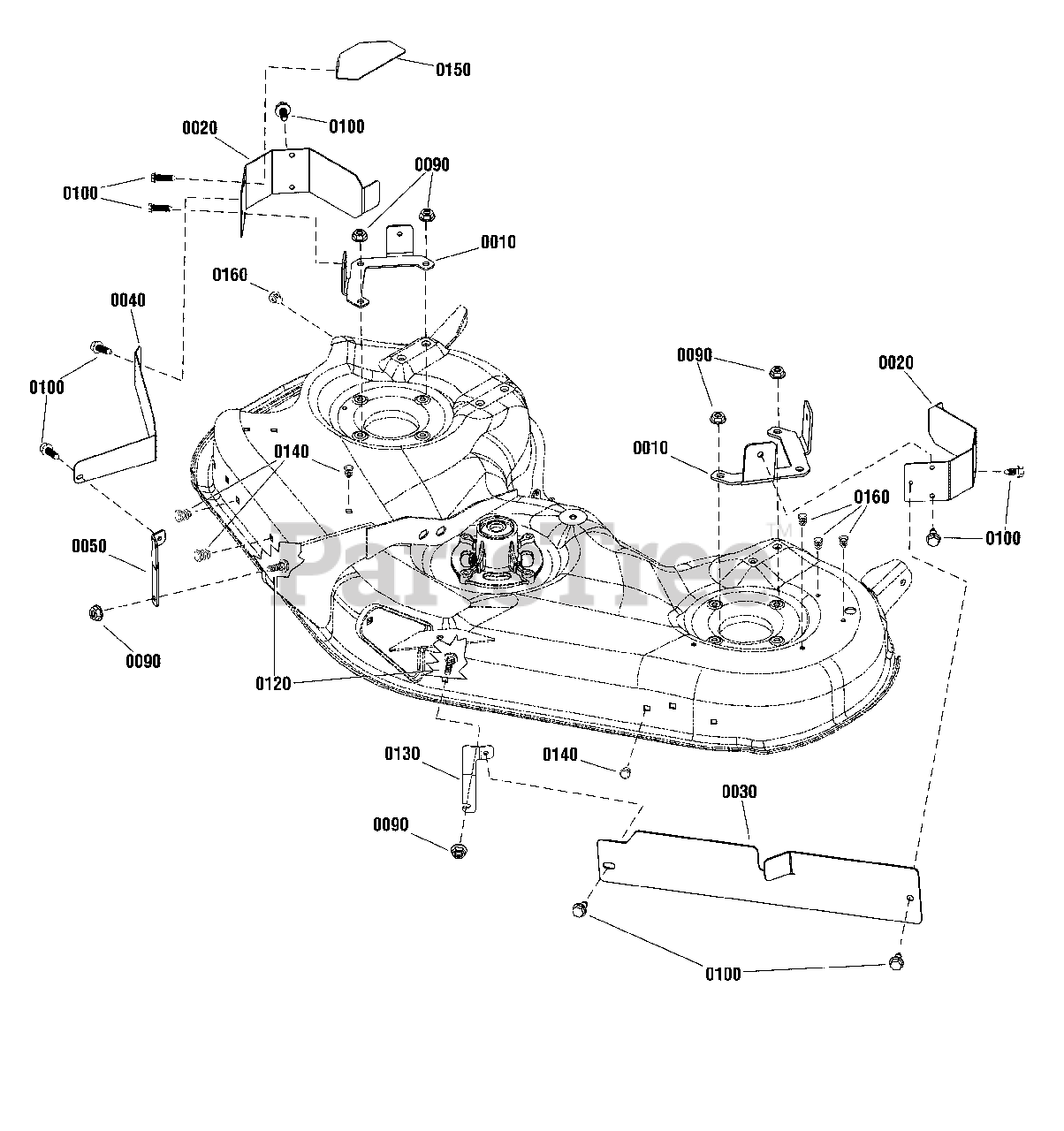

46" (117cm) Mower Deck - French Guard Group Parts Diagram

  • Title
0010

Snapper 1759800CJYP

BRACKET, Spindle

$23.99

$

In Stock, only 1 left!

0

0020

Snapper 1759801CJYP

GUARD, Spindle

$39.99

$

Usually ships in 2-12 days

0

0030

$31.99

$

Usually ships in 2-12 days

0

0040

$47.99

$

Usually ships in 2-12 days

0

0050

Snapper 1759804CJYP

SUPPORT, Front, RH

$16.99

$

Usually ships in 2-12 days

0

0090

Snapper 703409

NUT, Hex Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0100

Snapper 703235

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0120

Snapper 704065

BOLT, Carriage, 5/16-18 x 7/8

$4.49

$

In Stock, Qty 5

0

0130

Snapper 1759831CJYP

SUPPORT, Front, LH

$17.99

$

Usually ships in 2-12 days

0

0140

$4.99

$

Usually ships in 2-12 days

0

0150

Snapper 1760023CJYP

COVER, Spindle, RH

$23.99

$

Usually ships in 2-12 days

0

0160

$2.99

$

Usually ships in 2-12 days

0
