1696678-00 - Simplicity Front End Loader 2992369 - Loader Group Parts Diagram

Front End Loader

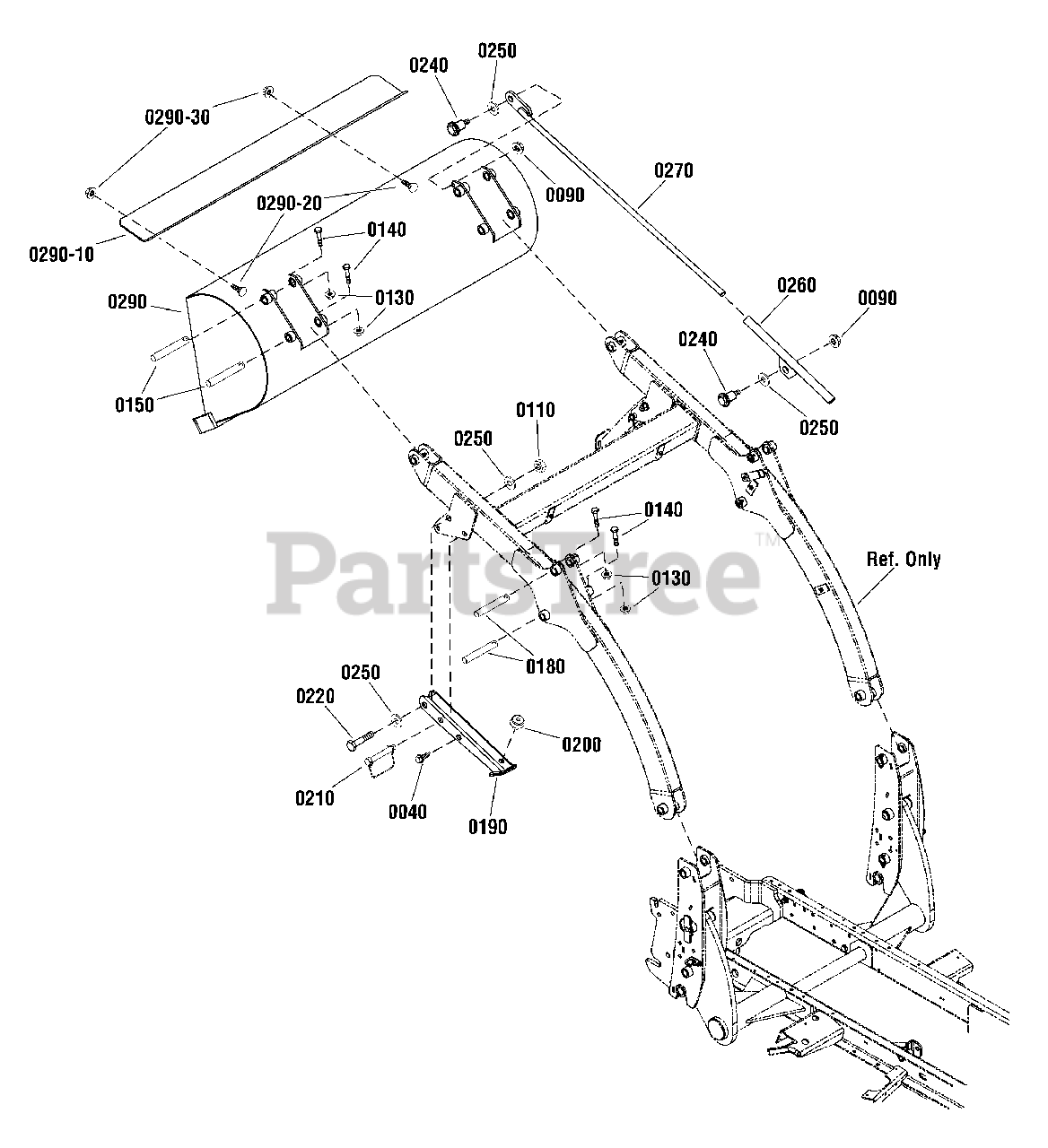

2992369 - Loader Group Parts Diagram

  • Title

0040

Simplicity 80002738

* SCREW, Taptite, 1/4-20 X 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 9

0

0090

Simplicity 80002732

* NUT, Nylock Flange, 3/8-16
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0110

Simplicity 80002731

* NUT, Lock, 12-13

$

$

Not available

0130

Simplicity 80002730

* NUT, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 80002714

* CAPSCREW, Hex Head, 1/4-20 X 1-3/4, GR5
(Superseded to 7091003YP)

$3.49

$

Usually ships in 2-12 days

0

0150

Simplicity 1760602

* PIN

$

$

Not available

0180

Simplicity 1760601

* PIN

$

$

Not available

0190

Simplicity 1760918CL

* STAND, Loader

$

$

Not available

0200

Simplicity 197546

* VIBRATION, Rubber
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

0210

Simplicity 80022471

* PIN, Snapper

$

$

Not available

0220

Simplicity 80019083

* BOLT, 1/2-13 X 3-1/2, GR5

$

$

Not available

0240

Simplicity 2172622

* BOLT, Shoulder, 3/8-16 1-11/32, GR5
(Superseded to 2172622SM)

$6.99

$

In Stock, Qty 20+

0

0250

Simplicity 80004596

* WASHER, Flat

$

$

Not available

0260

Simplicity 1760844CL

* INDICATOR, Level

$

$

Not available

0270

Simplicity 1760841

* INDICATOR, Rod Level

$

$

Not available

0290

Simplicity 1760563

* BUCKET ASSEMBLY (Incl. Ref Nos. 0290-10 thru 0290-30)

$

$

Not available

0290-10

Simplicity 1760562

* GUARD, SPLASH, BUCKET

$

$

Not available

0290-20

Simplicity 80004566

* BOLT, Carriage,3/8-16 X 1, GR5
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0290-30

Simplicity 80003660

* NUT, Hex Flange, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0
