1696678-00 - Simplicity Front End Loader 2992369 - Ballast Box Group Parts Diagram

Front End Loader

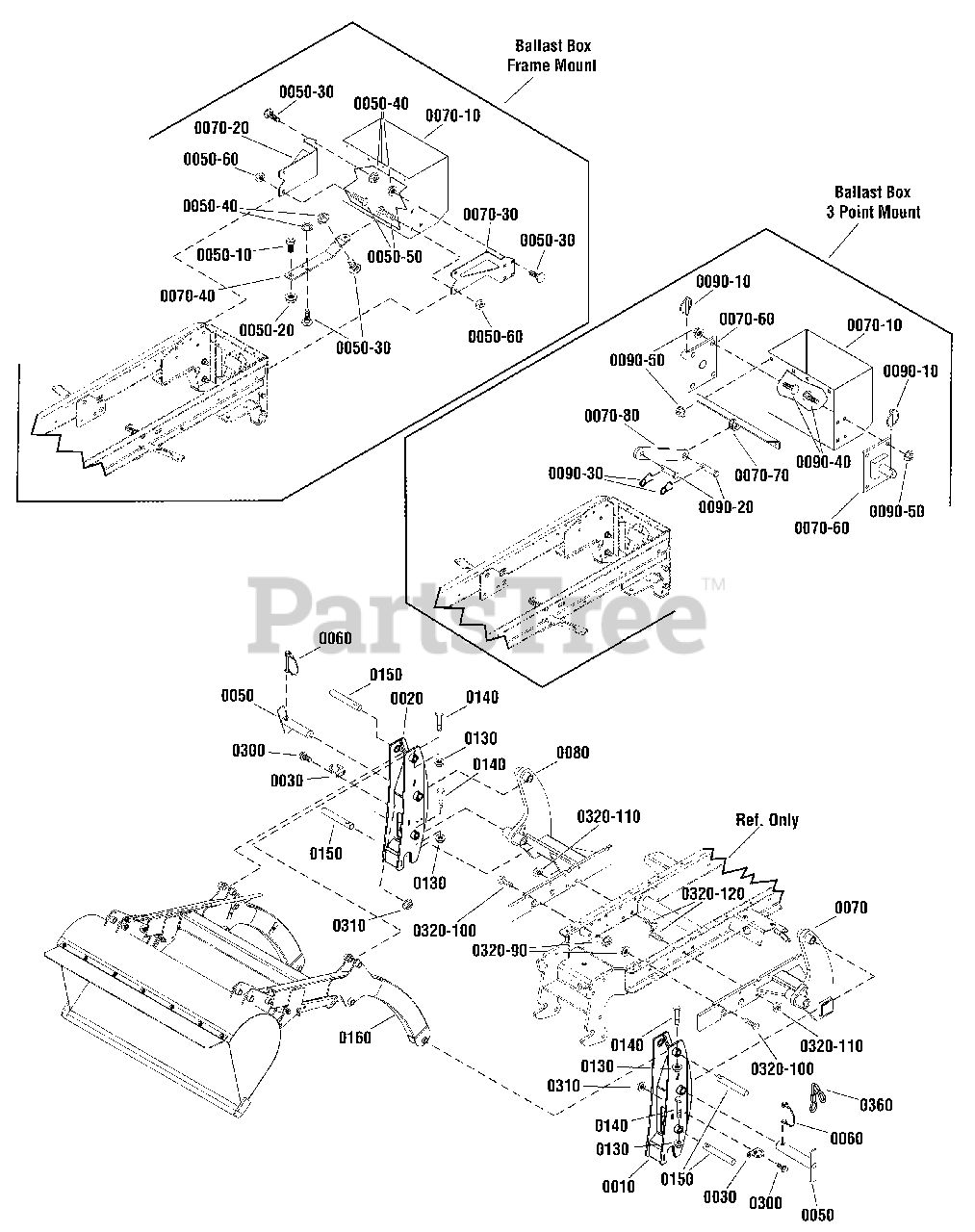

2992369 - Ballast Box Group Parts Diagram

  • Title

0010

Simplicity 1760817CL

* UPRIGHT, Loader, LH

$

$

Not available

0020

Simplicity 1760594CL

* UPRIGHT, Loader, RH

$

$

Not available

0030

Simplicity 1760596CL

* HOLDER, Pin

$

$

Not available

0050

Simplicity 1760607

* PIN, Flag

$

$

Not available

0060

Simplicity 80020693

* PIN, Snapper

$

$

Not available

0070

Simplicity 1760593CL

* MOUNT, Frame, LH

$

$

Not available

0080

Simplicity 1760592CL

* MOUNT, Frame, RH

$

$

Not available

0130

Simplicity 80002730

* NUT, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 80002714

* CAPSCREW, Hex Head, 1/4-20 X 1-3/4, GR5
(Superseded to 7091003YP)

$3.49

$

Usually ships in 2-12 days

0

0150

Simplicity 1760602

* PIN

$

$

Not available

0160

* BOOM, Loader

$

$

Not available

0070-10

Simplicity 1760623CL

* BALLAST BOX

$

$

Not available

0070-20

Simplicity 1760884

* MOUNT, Ballast, RH

$

$

Not available

0070-30

Simplicity 1760885

* MOUNT, Ballast, LH

$

$

Not available

0070-40

Simplicity 1760886

* HITCH, Ballast

$

$

Not available

0070-60

Simplicity 1760624CL

* PIN MOUNT, Ballast

$

$

Not available

0070-70

Simplicity 1760625CL

* TOP LINK MOUNT, Ballast

$

$

Not available

0070-80

Simplicity 1760635CL

* LINK, 3pt Point, Ballast

$

$

Not available

--

Simplicity 1760916

* HARDWARE BAG, Ballast Box, Frame Mounted (Incl. Ref. Nos. 0050-10 thru 0050-60)

$

$

Not available

0050-10

Simplicity 80019705

* CAPSCREW, Hex Head, 3/4-10 X 1-1/2, GR5

$

$

Not available

0050-20

Simplicity 1960691

* NUT, Hex Flange, 3/4-10
(Superseded to 1960691SM)

$7.49

$

Usually ships in 2-12 days

0

0050-30

Simplicity 80004566

* BOLT, Carriage, 3/8-16 X 1, GR 5
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0050-40

Simplicity 80003660

* NUT, Hex Flange, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0050-50

Simplicity 80004618

* CAPSCREW, Hex Head, 1/2-13 X 1-1/2, GR5

$

$

Not available

0050-60

Simplicity 80002731

* NUT, Lock, 1/2-13

$

$

Not available

--

Simplicity 1760917

* HARDWARE BAG, Ballast Box, 3 Point (Incl. Ref. Nos. 0090-10 thru 0090-50)

$

$

Not available

0090-10

Simplicity 80003533

* PIN, Klik, 1/4 X 1.380
(Superseded to 703226)

$9.99

$

In Stock, only 3 left!

0

0090-20

Simplicity 1725049

* PIN, Clevis
(Superseded to 1725049SM)

$8.99

$

In Stock, only 2 left!

0

0090-30

Simplicity 80002739

* PIN, Retainer, 5/16 X 3/8
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

0090-40

Simplicity 80004566

* BOLT, Carriage, 3/8-16 X 1, GR5
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0090-50

Simplicity 80003660

* NUT, Hex Flange, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0300

Simplicity 80002712

* CAPSCREW, Hex Head, 1/4-20 X 3/4, GR5
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

0310

Simplicity 80002730

* NUT, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

--

Simplicity 80023011

* HARDWARE BAG, Loader Mounting (Incl. Ref. Nos. 0320-90 thru 0320-120)

$

$

Not available

0320-90

Simplicity 80003660

* NUT, Hex Flange, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0320-100

Simplicity 80004479

* CAPSCREW, Hex Head, 3/8-16 X 1-1/2, GR5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

0320-110

Simplicity 80002731

* NUT, Lock, 1/2-13

$

$

Not available

0320-120

Simplicity 80004618

* CAPSCREW, Hex Head, 1/2-13 X 1-1/2, GR5

$

$

Not available

0360

Simplicity 80024008

* CABLE, Tether

$

$

Not available
