1696672-01 - Snapper 48" Bagging Boot, Blade & Baffle Bagging Boot Parts Diagram

48" Bagging Boot, Blade & Baffle

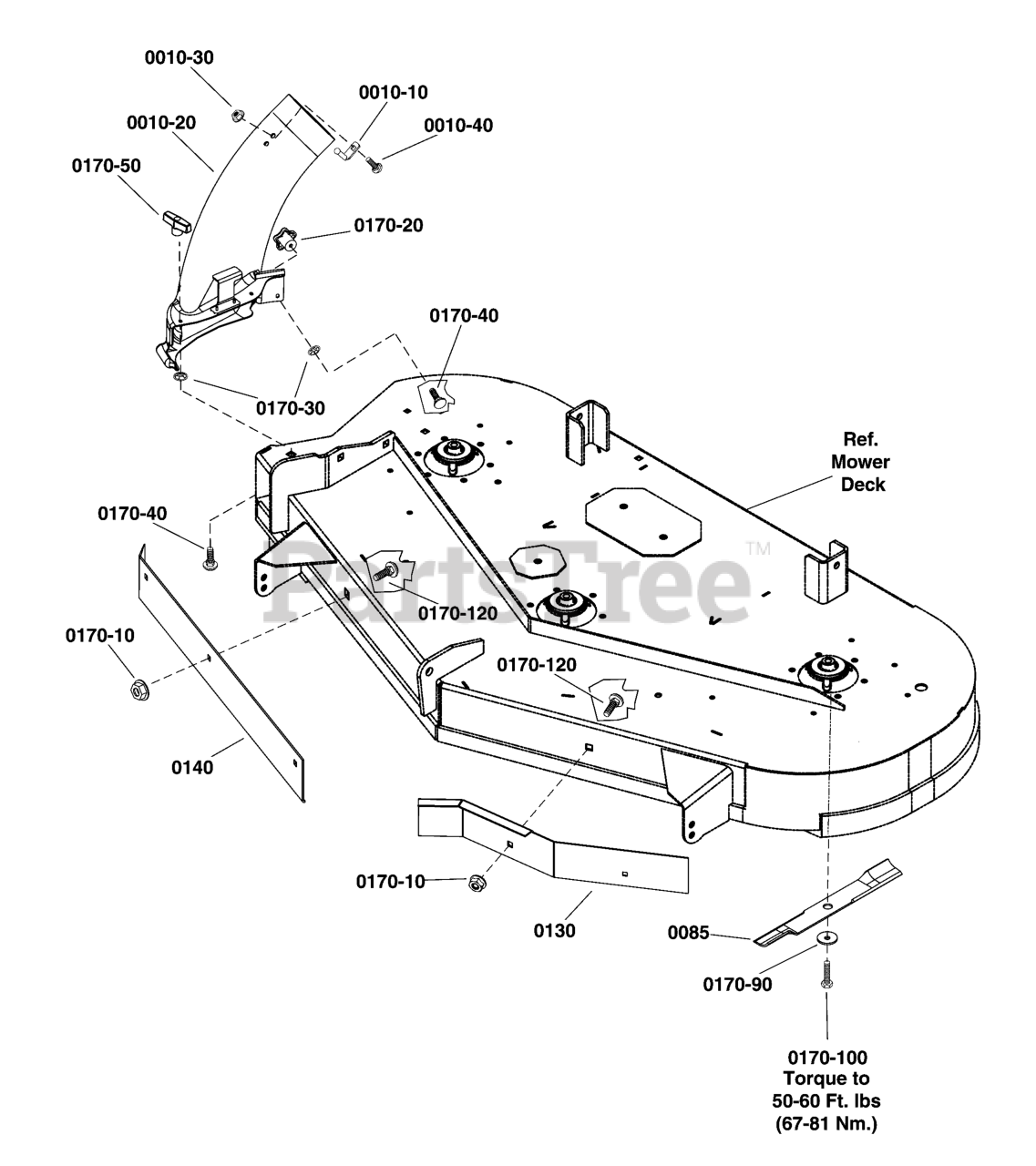

Bagging Boot Parts Diagram

  • Title

0010-10

Snapper 054563MA

PIN, Latch

$23.99

$

In Stock, only 2 left!

0

0010-20

Snapper 1759298YP

BOOT, Bagging

$463.99

$

Usually ships in 2-12 days

0

0010-30

Snapper 703916

NUT, Hex Flange, 1/4-20

$4.99

$

In Stock, only 2 left!

0

0010-40

Snapper 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

0085

Snapper 1759454YP

BLADE, 48"

$27.99

$

Usually ships in 2-12 days

0

0130

Snapper 1759458CJYP

BAFFLE, Trim Side

$120.99

$

Usually ships in 2-12 days

0

0140

Snapper 1759459CJYP

BAFFLE, Discharge

$110.99

$

In Stock, only 1 left!

0

0170-10

Snapper 703330

NUT, Hex Flange Whiz-Lock, 5/16-18

$4.99

$

In Stock, Qty 14

0

0170-20

Snapper 706490

HANDLE, 5 Prong

$14.99

$

In Stock, Qty 8

0

0170-30

Snapper 703297

RETAINER

$3.99

$

In Stock, Qty 20+

0

0170-40

Snapper 703440

BOLT, Carriage, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 8

0

0170-50

Snapper 1101106MA

NUT, Wing, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

0170-90

Snapper 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0170-100

Snapper 2820676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$4.49

$

In Stock, Qty 6

0

0170-120

Snapper 704065

BOLT, Carriage, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 5

0
