1696620-03 (M 27/1150 MD) - Brute 27" Snow Thrower, 11.5 Gross TP (2020) Handles & Controls Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

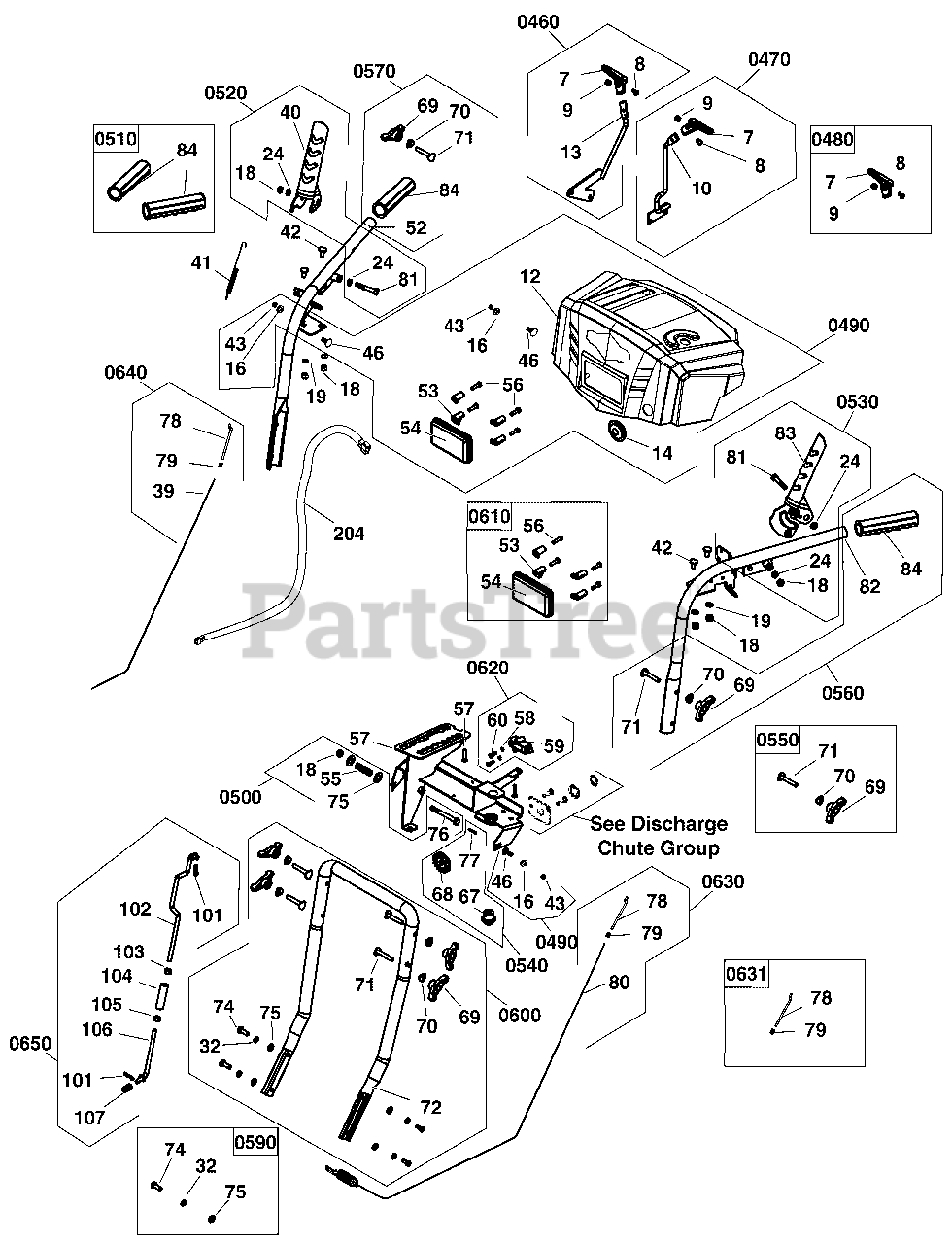

Handles & Controls Group Parts Diagram

  • Title

18

*NUT, Hex Head Lock, Non-metal

Note: (Refer to Note: *)

$

$

Not available

19

*WASHER, Flat

Note: (Refer to Note: *)

$

$

Not available

41

Briggs & Stratton 707877

SPRING, Handle

$12.99

$

Usually ships in 2-12 days

0

42

*BOLT, Square Neck Cup Head

Note: (Refer to Note: *)

$

$

Not available

57

*PANEL, Steel

Note: (Refer to Note: *)

$

$

Not available

204

Briggs & Stratton 707637

HARNESS, Wiring

$118.99

$

Usually ships in 2-12 days

0

0460

Briggs & Stratton 770081

KIT, Lever, Speed

Note: (Incl. Ref. Nos. 7, 8, 9, 13)

$14.99

$

Usually ships in 2-12 days

0

7

*KNOB

$

$

Not available

8

*BOLT, Phillips Head

$

$

Not available

9

*NUT, Hex Head Lock, Non-metal

$

$

Not available

13

*LEVER, Control, Drive Speed

$

$

Not available

0470

Briggs & Stratton 707505

KIT, Lever, Discharge Chute

Note: (Incl. Ref. Nos. 7, 8, 9, 10)

$39.99

$

Usually ships in 2-12 days

0

7

*KNOB

$

$

Not available

8

*BOLT, Phillips Head

$

$

Not available

9

*NUT, Hex Head Lock, Non-metal

$

$

Not available

10

*LEVER, Control, Discharge Chute

$

$

Not available

0480

Briggs & Stratton 707504

KIT, Knob, Lever

Note: (Incl. Ref. Nos. 7, 8, 9)

$7.49

$

Usually ships in 2-12 days

0

7

*KNOB

$

$

Not available

8

*BOLT, Phillips Head

$

$

Not available

9

*NUT, Hex Head Lock, Non-metal

$

$

Not available

0490

Briggs & Stratton PER - 770073

CASE ASSY., Transaxle (Incl. Ref. Nos. 26, 27 & 28)

Note: (Incl. Ref. Nos. 12, 14, 16, 43, 46, 53, 54, 56, 301, 302, 312, 313, 314)

$

$

Currently unavailable

12

*PANEL, Dash

$

$

Not available

14

*SLEEVE, Rubber

$

$

Not available

16

*WASHER, Flat

$

$

Not available

43

*NUT, Hex Head Lock, Non-metal

$

$

Not available

46

*BOLT, Square Neck, Cup Head

$

$

Not available

53

*BUCKLE, Lamp

$

$

Not available

54

*LAMP

$

$

Not available

56

*BOLT, Phillips Head

$

$

Not available

301

Briggs & Stratton 1751429YP

DECAL, Auger Control

Note: (Not Illustrated)

$9.99

$

Usually ships in 2-12 days

0

302

Briggs & Stratton 1751430YP

DECAL, Traction Control

Note: (Not Illustrated)

$11.99

$

In Stock, only 1 left!

0

303

*DECAL, Control Panel, Brute

Note: (Not Illustrated)

$

$

Not available

312

*DECAL, 1-6 Transmission Speed Control

Note: (Not Illustrated)

$

$

Not available

313

*DECAL, Free Hand Operation

Note: (Not Illustrated)

$

$

Not available

314

*DECAL, Chute Rotation

Note: (Not Illustrated)

$

$

Not available

0500

Briggs & Stratton 707507

KIT, Hardware, Speed & Discharge

Note: (Incl. Ref. Nos. 18, 55, 75, 76)

$9.99

$

Usually ships in 2-12 days

0

18

*NUT, Hex Head Lock, Non-metal

$

$

Not available

55

*SPRING

$

$

Not available

75

*WASHER, Flat

$

$

Not available

76

*SCREW, Hex Head

$

$

Not available

0510

Briggs & Stratton 770080

KIT, Grip, Handle

Note: (Incl. Ref. No. 84)

$20.99

$

Usually ships in 2-12 days

0

84

Grip

$

$

Not available

0520

Briggs & Stratton 707509

KIT, Right Hand Lever, Traction Drive

Note: (Incl. Ref. Nos. 18, 24, 40, 81)

$24.99

$

Usually ships in 2-12 days

0

18

*NUT, Hex Head Lock, Non-metal

$

$

Not available

24

*PAD, Small Tensioning Plate

$

$

Not available

40

*LEVER, Traction Drive Engagement Lever

$

$

Not available

81

*SCREW, Hex Head

$

$

Not available

0530

Briggs & Stratton 707508

KIT, Left Hand Lever, Auger Drive

Note: (Incl. Ref. Nos. 18, 24, 81, 83)

$22.99

$

Usually ships in 2-12 days

0

18

*NUT, Hex Head Lock, Non-metal

$

$

Not available

24

*PAD, Small Tensioning Plate

$

$

Not available

81

*SCREW, Hex Head

$

$

Not available

83

*LEVER, Auger Engagement

$

$

Not available

0540

Briggs & Stratton 770070

KIT, Bevel Gear, Chute Rotation

Note: (Incl. Ref. Nos. 68, 68, 77)

$23.99

$

Usually ships in 2-12 days

0

67

*GEAR, Bevel

$

$

Not available

68

*GEAR, Bevel, Turning

$

$

Not available

77

*PIN, Spring

$

$

Not available

0550

Briggs & Stratton 707513

KIT, Wing Knob, Handle

Note: (Incl. Ref. Nos. 69, 70, 71)

$36.99

$

In Stock, only 4 left!

0

69

*KNOB, Handle

$

$

Not available

70

*WASHER

$

$

Not available

71

*BOLT

$

$

Not available

0560

Briggs & Stratton 770075

KIT, Upper Handle, Left

Note: (Incl. Ref. Nos. 69, 70, 71, 82, 84)

$57.99

$

Usually ships in 2-12 days

0

69

*KNOB, Handle

$

$

Not available

70

*WASHER

$

$

Not available

71

*BOLT

$

$

Not available

82

*HANDLE, Upper, Left

$

$

Not available

84

*GRIP

$

$

Not available

0570

Briggs & Stratton 770076

KIT, Upper Handle, Right

Note: (Incl. Ref. Nos. 52, 69, 70, 71, 84)

$69.99

$

Usually ships in 2-12 days

0

52

*HANDLE, Upper, Right

$

$

Not available

69

*KNOB, Handle

$

$

Not available

70

*WASHER

$

$

Not available

71

*BOLT

$

$

Not available

84

*GRIP

$

$

Not available

0590

Briggs & Stratton 707517

KIT, Lower Handle Hardware

Note: (Incl. Ref. Nos. 32, 74, 75)

$15.99

$

Usually ships in 2-12 days

0

32

*WASHER

$

$

Not available

74

*SCREW, Hex Head

$

$

Not available

75

*WASHER, Flat

$

$

Not available

0600

Briggs & Stratton 707518

KIT, Lower Handle
(Superseded to 84003833)

Note: (Incl. Ref. Nos. 32, 69, 70, 71, 72, 74, 75)

$74.99

$

Usually ships in 2-12 days

0

32

*WASHER

$

$

Not available

69

*KNOB, Handle

$

$

Not available

70

*WASHER

$

$

Not available

71

*BOLT

$

$

Not available

72

*HANDLE, Lower

$

$

Not available

74

*SCREW, Hex Head

$

$

Not available

75

*WASHER, Flat

$

$

Not available

0610

Briggs & Stratton 707519

KIT, Headlight

Note: (Incl. Ref. Nos. 53, 54, 56)

$53.99

$

Usually ships in 2-12 days

0

53

*BUCKLE, Lamp

$

$

Not available

54

*LAMP

$

$

Not available

56

*BOLT, Phillips Head

$

$

Not available

0620

Briggs & Stratton 707521

KIT, Free Hand Control Assembly

Note: (Incl. Ref. Nos. 58, 59, 60)

$31.99

$

Usually ships in 2-12 days

0

58

*WASHER, Spring

$

$

Not available

59

*SELF-LOCK, Assembly

$

$

Not available

60

*SCREW, Hex Head

$

$

Not available

0630

Briggs & Stratton 707760

KIT, Cable, Auger Clutch
(Superseded to 84003856)

Note: (Incl. Ref. Nos. 78, 79, 80)

$57.99

$

In Stock, only 2 left!

0

78

*ROD, Steel

$

$

Not available

79

*NUT, Copper

$

$

Not available

80

*CABLE, Auger

$

$

Not available

0631

Briggs & Stratton 709758

KIT, Cable, Hardware

Note: (Incl. Ref. Nos 78, 79)

$9.99

$

Usually ships in 2-12 days

0

78

*ROD, Steel

$

$

Not available

79

*NUT, Copper

$

$

Not available

0640

Briggs & Stratton 707761

KIT, Cable, Traction Drive
(Superseded to 84003855)

Note: (Incl. Ref. Nos. 39, 78, 79)

$63.99

$

In Stock, only 2 left!

0

39

*ROD, Steel

$

$

Not available

78

*ROD, Steel

$

$

Not available

79

*NUT, Copper

$

$

Not available

0650

Briggs & Stratton 707526

KIT, Transaction Drive Rod

Note: (Incl. Ref. Nos. 101, 102, 103, 104, 105, 106, 107)

$45.99

$

Usually ships in 2-12 days

0

101

*BOLT

$

$

Not available

102

*ROD, Traction Drive

$

$

Not available

103

*SCREW, Hex Head

$

$

Not available

104

*ROD, Regulating Sleeve, Drive

$

$

Not available

105

*NUT

$

$

Not available

106

*ROD, Traction Drive

$

$

Not available

107

*SPRING, Regulating

$

$

Not available
