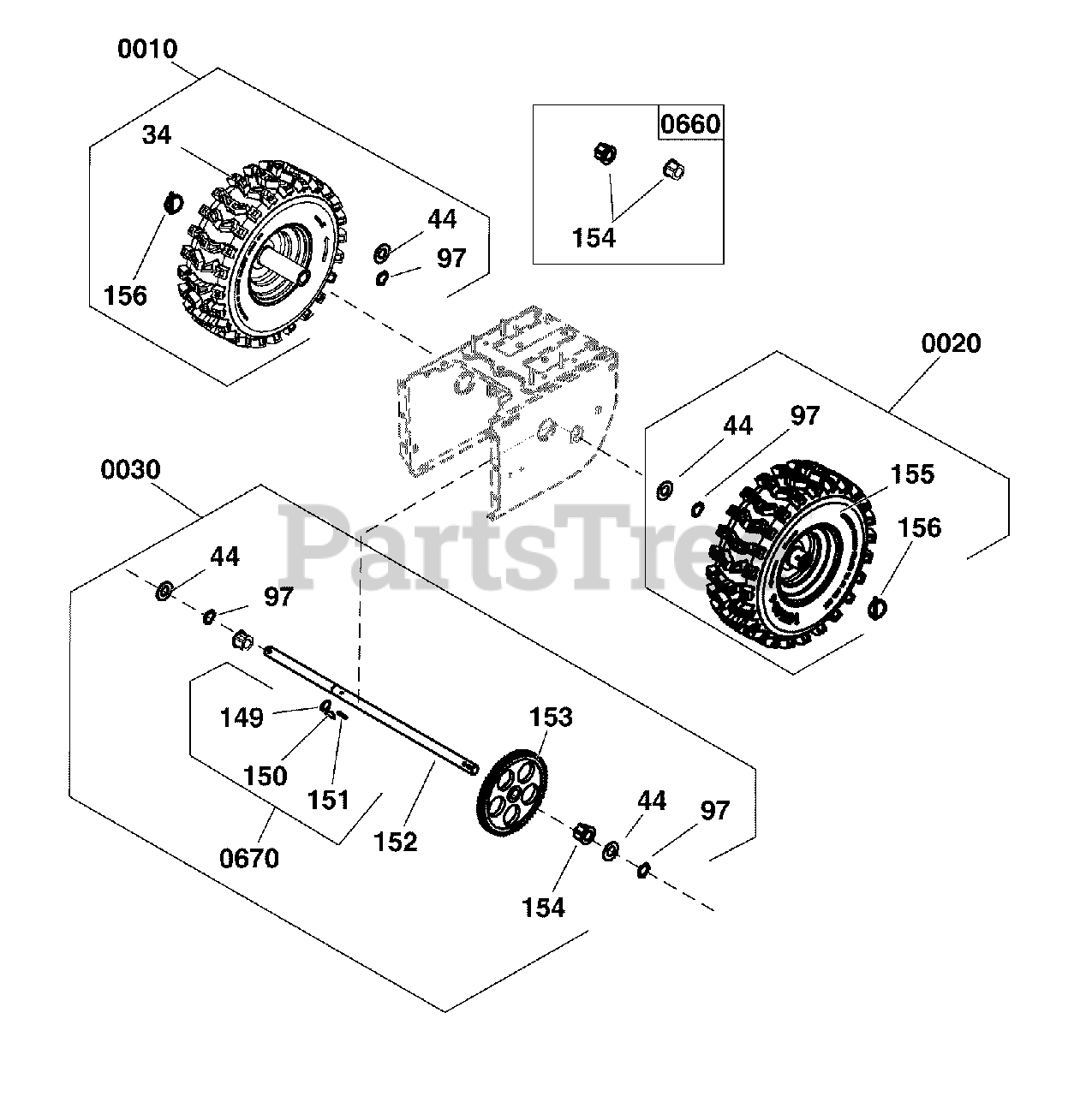

1696620-02 (M 27/1150 MD) - Brute 27" Snow Thrower, 11.5 Gross TP (2018) Wheels & Tires Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

Wheels & Tires Group Parts Diagram

  • Title

0010

Briggs & Stratton 707765

KIT, Wheel & Tire, Right

Note: (Incl. Ref. Nos. 34, 44, 97, 156)

$134.99

$

Usually ships in 2-12 days

0

34

*TIRE, Assembly, Right

$

$

Not available

44

*WASHER, Flat

$

$

Not available

97

*GASKET, Corrugated

$

$

Not available

156

Briggs & Stratton 709530

*PIN, Klik

$12.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 707764

KIT, Wheel & Tire, Left

Note: (Incl. Ref. Nos. 44, 97, 155, 156)

$134.99

$

Usually ships in 2-12 days

0

44

*WASHER, Flat

$

$

Not available

97

*GASKET, Corrugated

$

$

Not available

155

*TIRE, Assembly, Left

$

$

Not available

156

Briggs & Stratton 709530

*PIN, Klik

$12.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 770078

KIT, Axle & Sprocket

Note: (Incl. Ref. Nos. 44, 97, 149, 150, 151, 152, 153, 154)

$125.99

$

Usually ships in 2-12 days

0

44

*WASHER, Flat

$

$

Not available

97

*GASKET, Corrugated

$

$

Not available

149

*C-CLIP, Shaft

$

$

Not available

150

*KEY, Woodruff

$

$

Not available

151

*PIN, Spring

$

$

Not available

152

*SHAFT, Drive Wheel

$

$

Not available

153

*GEAR,Drive

$

$

Not available

154

*SLEEVE, Axle

$

$

Not available

0660

Briggs & Stratton 707532

KIT, AXLE SLEEVE

Note: (Incl. Ref. No. 154)

$15.99

$

Usually ships in 2-12 days

0

154

*SLEEVE, Axle

$

$

Not available

0670

Briggs & Stratton 707530

KIT, BEARING HARDWARE, AXLE

Note: (Incl. Ref. Nos. 149, 150, 151)

$9.49

$

Usually ships in 2-12 days

0

149

*C-CLIP, Shaft

$

$

Not available

150

*KEY, Woodruff

$

$

Not available

151

*PIN, Spring

$

$

Not available
