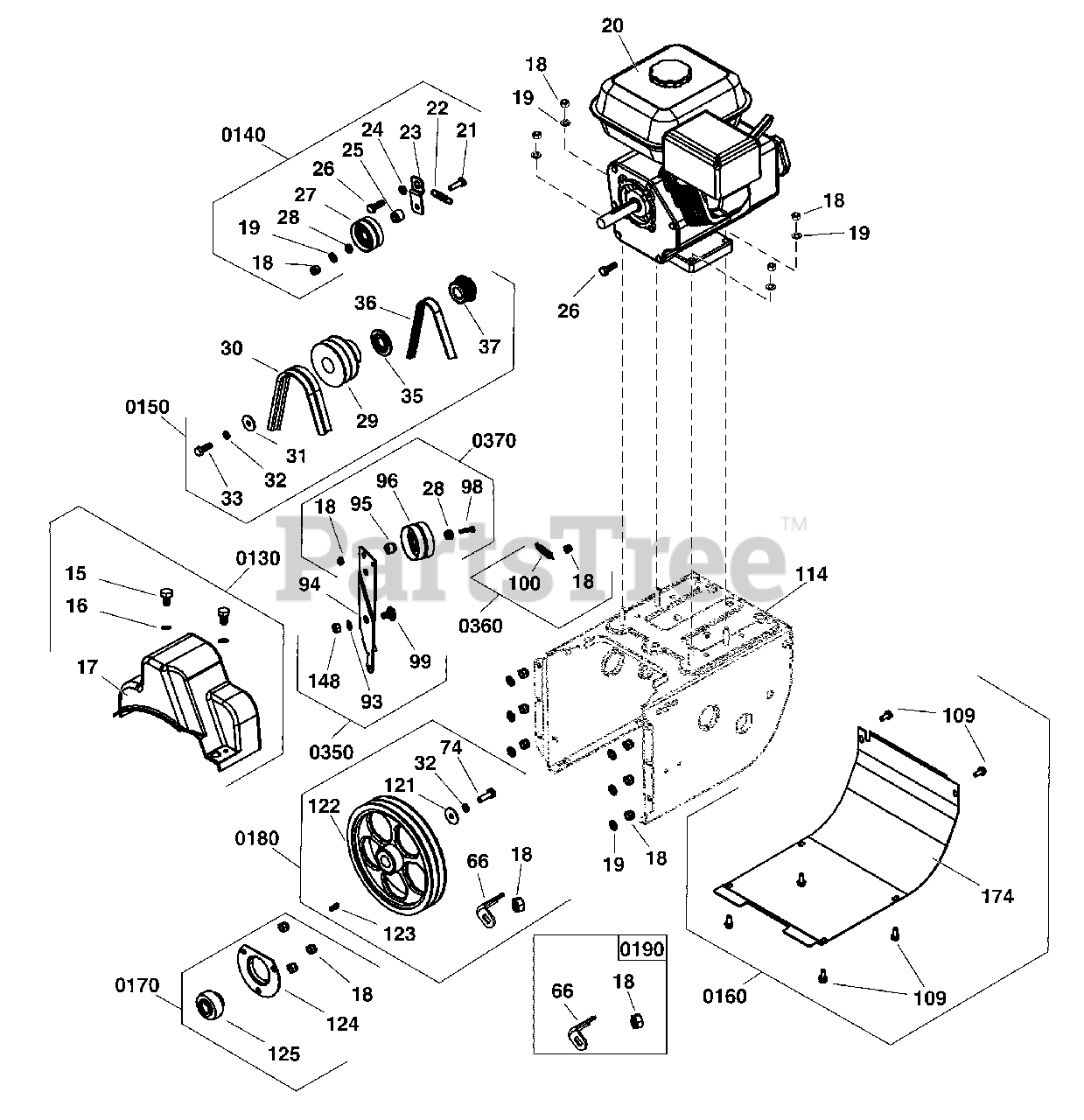

1696620-02 (M 27/1150 MD) - Brute 27" Snow Thrower, 11.5 Gross TP (2018) Engine & Frame Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

Engine & Frame Group Parts Diagram

  • Title

18

NUT, Lock, M8

$

$

Not available

19

WASHER, FLAT, 8X16X1.2

$

$

Not available

20

Briggs & Stratton 13A137-0004-F1

**ENGINE, 9.5 Gross TP Briggs & Stratton

Note: (Engine Model: 13A137-0004-F1)

$

$

Currently unavailable

26

SCREW, Hex Flange Head, M8 X 20

$

$

Not available

114

*BOX, Frame

$

$

Not available

0130

Briggs & Stratton 707567

KIT, Belt Cover
(Superseded to 84003838)

Note: (Incl. Ref. Nos. 15, 16, 17)

$42.99

$

Usually ships in 2-12 days

0

15

*SCREW, Hex Head

$

$

Not available

16

*WASHER, Flat

$

$

Not available

17

*COVER, Belt

$

$

Not available

0140

Briggs & Stratton 707568

KIT, Idler Pulley, Traction Drive

Note: (Incl. Ref. Nos. 18, 19, 21, 22, 23, 24, 25, 26, 27, 28)

$55.99

$

In Stock, only 1 left!

0

18

NUT, Lock, M8

$

$

Not available

19

WASHER, FLAT, 8X16X1.2

$

$

Not available

21

*SCREW, Hex Head

$

$

Not available

22

SPRING

$

$

Not available

23

*PLATE, Tensioning, Small

$

$

Not available

24

*PAD, Tensioning Plate, Small

$

$

Not available

25

*PAD, Tensioning Wheel, Small

$

$

Not available

26

*SCREW, Hex Head

$

$

Not available

27

*WHEEL, Tensioning Assembly, Small

$

$

Not available

28

*Washer

$

$

Not available

0150

Briggs & Stratton 770141

KIT, Engine Pulley

Note: (Incl. Ref. Nos. 29, 30, 31, 32, 33, 35, 36, 37)

$64.99

$

In Stock, only 1 left!

0

29

*PULLEY, Impeller Drive

$

$

Not available

30

Briggs & Stratton 707584

BELT, Auger Drive

$41.99

$

In Stock, Qty 11

0

31

*WASHER, Flat

$

$

Not available

32

*WASHER, Spring

$

$

Not available

33

*SCREW, Hex Head

$

$

Not available

35

*RING, Retainer, Synch-pulley

$

$

Not available

36

Briggs & Stratton 707585

BELT, Traction Drive

$22.99

$

In Stock, Qty 14

0

37

*SYNCH-PULLEY

$

$

Not available

0160

Briggs & Stratton 709538

KIT, Bottom Cover, Black

Note: (Incl. Ref. Nos. 109, 174)

$72.99

$

Usually ships in 2-12 days

0

109

*SCREW, Hex Head

$

$

Not available

174

*COVER, Motor Box, Lower

$

$

Not available

0170

Briggs & Stratton 84006464

KIT, Bearing Hardware, Auger Pulley

Note: (Incl. Ref. Nos. 18, 124, 125)

$28.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

124

RETAINER, Ball Bearing

$

$

Not available

125

BEARING, Ball

$

$

Not available

0180

Briggs & Stratton 707743

KIT, Auger Pulley

Note: (Incl. Ref. Nos. 18, 32, 66, 74, 121, 122, 123)

$45.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

32

*WASHER, Spring

$

$

Not available

66

*BAFFLE, Belt

$

$

Not available

74

*SCREW, Hex Head

$

$

Not available

121

*WASHER, Flat

$

$

Not available

122

*PULLEY, Drive

$

$

Not available

123

*KEY, Flat

$

$

Not available

0190

Briggs & Stratton 707547

KIT, BELT GUIDE, AUGER

Note: (Incl. Ref. Nos. 18, 66)

$11.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

66

*BAFFLE, Belt

$

$

Not available

0350

Briggs & Stratton 707565

KIT-HARDWARE, IDLER BRACKET

Note: (Incl. Ref. Nos. 93, 99, 148)

$8.99

$

Usually ships in 2-12 days

0

93

*WASHER, Flat

$

$

Not available

99

*SCREW, Hex Head

$

$

Not available

148

*NUT, Hex Head Lock, Non-metal

$

$

Not available

94

Briggs & Stratton 770804

IDLER, Auger

$40.99

$

Usually ships in 2-12 days

0

0360

Briggs & Stratton 707654

KIT, Spring, Idler Pulley
(Superseded to 707564)

Note: (Incl. Ref. Nos.18, 100)

$6.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

100

*SPRING

$

$

Not available

0370

Briggs & Stratton 707566

KIT-IDLER PULLEY, TENSION PLATE

Note: (Incl. Ref. Nos. 18, 28, 95, 96, 98)

$41.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

28

*WASHER

$

$

Not available

95

*SLEEVE, Washer

$

$

Not available

96

*WHEEL, Large Tensioning

$

$

Not available

98

*SCREW, Hex Head

$

$

Not available

--

Briggs & Stratton 6219MA

CORD, Electric, 10FT. 110V

Note: ( Not Illustrated )

$40.99

$

In Stock, only 2 left!

0
