1696611-01 (L 24/950) - Brute 24" Snow Thrower, 9.5 Gross TP (2017) Handles & Controls Group Parts Diagram

24" Snow Thrower, 9.5 Gross TP

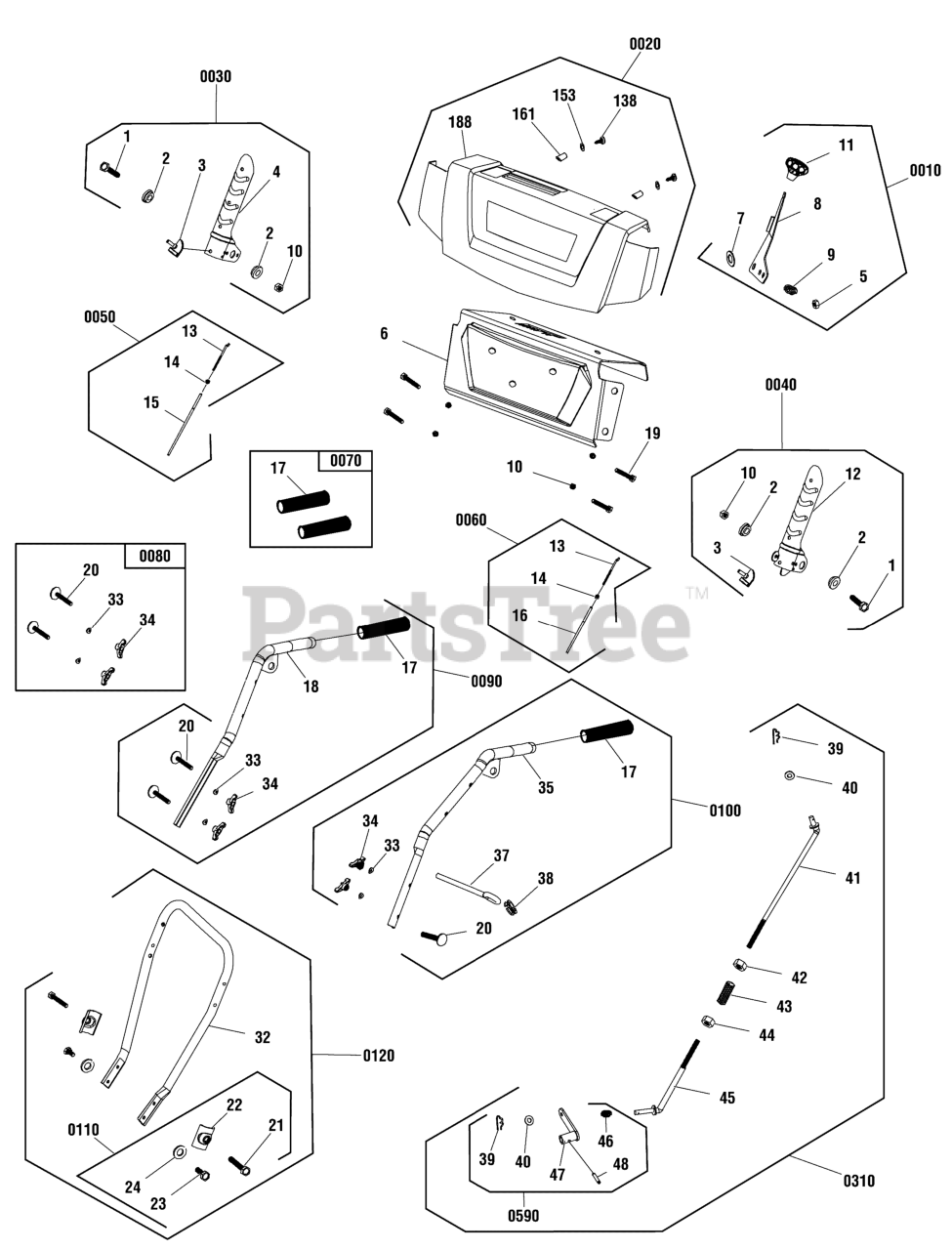

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 707794

KIT, LEVER, SPEED

Note: (Incl. Ref. Nos. 5, 7, 8, 9, 11)

$31.99

$

In Stock, only 2 left!

0

5

*NUT, Lock, Hex Head, non-metal

$

$

Not available

7

*WASHER, Flat

$

$

Not available

8

*LEVER, Speed Control

$

$

Not available

9

*SPRING, Speed Control

$

$

Not available

11

*KNOB, Speed Control Lever

$

$

Not available

0020

Murray 707797

KIT-DASH PANEL, BRUTE

Note: (Incl. Ref. Nos. 138, 153, 161, 188, 301, 302, 303, 312)

$136.99

$

Usually ships in 2-12 days

0

138

*BOLT, Phill head

$

$

Not available

153

*WASHER, Flat

$

$

Not available

161

*BUCKLE, Lamp

$

$

Not available

188

*PANEL, Dash

$

$

Not available

301

*DECAL, Auger Control

Note: (Not Illustrated) (Reference Decals Group)

$

$

Not available

302

*DECAL, Traction Control

Note: (Not Illustrated) (Reference Decals Group)

$

$

Not available

303

*DECAL, Control Panel, Brute

Note: (Not Illustrated) (Reference Decals Group)

$

$

Not available

312

*DECAL, 1-6 Transmission Speed Control

Note: (Not Illustrated) (Reference Decals Group)

$

$

Not available

0030

Murray 707800

KIT, RIGHT HAND LEVER, TRACTION DRIVE

Note: (Incl. Ref. Nos. 1, 2, 3, 4, 10)

$29.99

$

Usually ships in 2-12 days

0

1

*SCREW, Hex head

$

$

Not available

2

*PAD, small tensioning plate

$

$

Not available

3

*CAP, Rubber

$

$

Not available

4

*LEVER, Traction drive engagement

$

$

Not available

10

*NUT, Lock, Hex Head, non-metal

$

$

Not available

0040

Murray 707802

KIT, LEFT HAND LEVER, AUGER DRIVE

Note: (Incl. Ref. Nos. 1, 2, 3, 10, 12)

$29.99

$

Usually ships in 2-12 days

0

1

*SCREW, Hex head

$

$

Not available

2

*PAD, small tensioning plate

$

$

Not available

3

*CAP, Rubber

$

$

Not available

10

*NUT, Lock, Hex Head, non-metal

$

$

Not available

12

*LEVER, Auger engagement

$

$

Not available

0050

Murray 707766

KIT, CABLE, TRACTION DRIVE

Note: (Incl. Ref. Nos. 13, 14, 15)

$54.99

$

Usually ships in 2-12 days

0

13

*ROD, Steel

$

$

Not available

14

*NUT, Copper

$

$

Not available

15

*ROD, Steel

$

$

Not available

0060

Murray 707803

KIT, Cable, Auger Drive

Note: (Incl. Ref. Nos. 13, 14, 16)

$158.99

$

Usually ships in 2-12 days

0

13

*ROD, Steel

$

$

Not available

14

*NUT, Copper

$

$

Not available

16

*ROD, Steel

$

$

Not available

0070

Murray 770080

KIT, Grip, Handle

Note: (Incl. Ref. No. 17)

$20.99

$

Usually ships in 2-12 days

0

17

*GRIP

$

$

Not available

0080

Murray 707835

KIT, UPPER HANDLE HARDWARE

Note: (Incl. Ref. Nos. 20, 33, 34)

$38.99

$

Usually ships in 2-12 days

0

20

*BOLT, Blade

$

$

Not available

33

*WASHER, Blade

$

$

Not available

34

*KNOB

$

$

Not available

0090

Murray 770115

KIT, UPPER HANDLE, RIGHT

Note: (Incl. Ref. Nos. 17, 18, 20, 33, 34)

$58.99

$

Usually ships in 2-12 days

0

17

*GRIP

$

$

Not available

18

*HANDLE, Right Upper

$

$

Not available

20

*BOLT, Blade

$

$

Not available

33

*WASHER, Blade

$

$

Not available

34

*KNOB

$

$

Not available

0100

Murray 770116

KIT, UPPER HANDLE, LEFT

Note: (Incl. Ref. Nos. 17, 20, 33, 34, 35, 37, 38)

$55.99

$

Usually ships in 2-12 days

0

17

*GRIP

$

$

Not available

20

*BOLT, Blade

$

$

Not available

33

*WASHER, Blade

$

$

Not available

34

*KNOB

$

$

Not available

35

*HANDLE, Left Upper

$

$

Not available

37

*ROD, Chute Rotator

$

$

Not available

38

*RING, Rubber, Chute Rotator Rod

$

$

Not available

0110

Murray 707806

KIT, LOWER HANDLE HARDWARE

Note: (Incl. Ref. Nos. 21, 22, 23, 24)

$10.99

$

Usually ships in 2-12 days

0

21

*SCREW, Hex head

$

$

Not available

22

*WASHER

$

$

Not available

23

*SCREW, Hex head

$

$

Not available

24

*WASHER, Flat

$

$

Not available

0120

Murray 707807

KIT, LOWER HANDLE

Note: (Incl. Ref. Nos. 21, 22, 23, 24, 32)

$90.99

$

Usually ships in 2-12 days

0

21

*SCREW, Hex head

$

$

Not available

22

*WASHER

$

$

Not available

23

*SCREW, Hex head

$

$

Not available

24

*WASHER, Flat

$

$

Not available

32

*HANDLE, Lower

$

$

Not available

0310

Murray 707818

KIT, SHIFT ROD

Note: (Incl. Ref. Nos. 39, 40, 41, 42, 43, 44, 45, 46, 47, 48)

$54.99

$

Usually ships in 2-12 days

0

39

*PIN

$

$

Not available

40

*WASHER, Flat

$

$

Not available

41

*ROD, Upper, Speed Control

$

$

Not available

42

*SCREW, Hex head

$

$

Not available

43

*SLEEVE, Regulating, Drive Rod

$

$

Not available

44

*NUT, Hex head

$

$

Not available

45

*ROD, Upper, Speed Control

$

$

Not available

46

*SPRING, Regulating

$

$

Not available

47

*ARM, Shift Fork

$

$

Not available

48

*PIN, Spring

$

$

Not available

0590

Murray 709539

KIT, SHIFT ROD HARDWARE

Note: (Incl. Ref. Nos. 39, 40, 41, 46, 47, 48)

$15.99

$

Usually ships in 2-12 days

0

39

*PIN

$

$

Not available

40

*WASHER, Flat

$

$

Not available

46

*SPRING, Regulating

$

$

Not available

47

*ARM, Shift Fork

$

$

Not available

48

*PIN, Spring

$

$

Not available
