1696600-00 - Simplicity 38"/96cm Mower Deck 38" (96cm) Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

38"/96cm Mower Deck

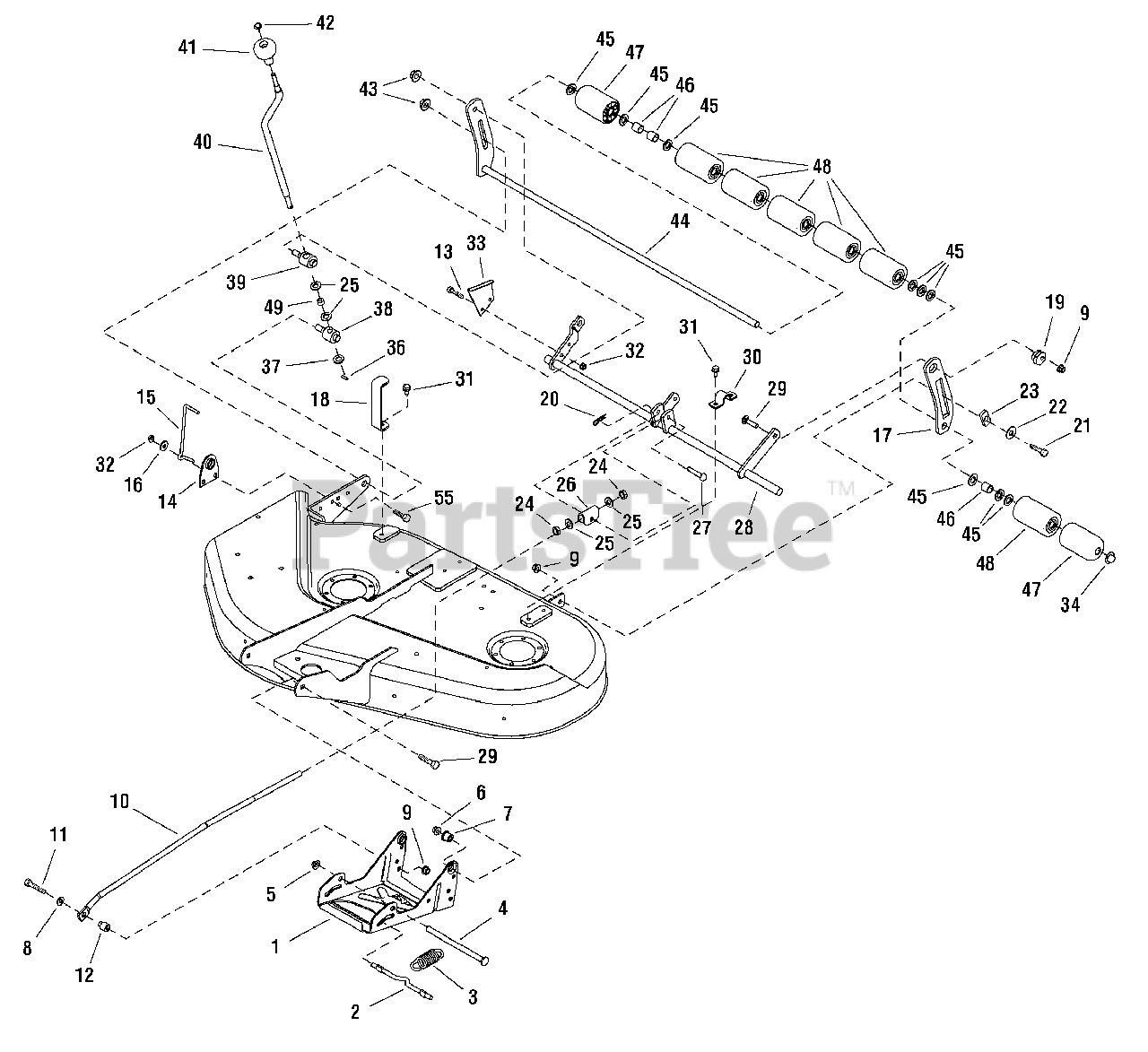

38" (96cm) Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

  • Title

1

Simplicity 1720044A

HITCH, Mower
(Superseded to 1760192AYP)

$155.99

$

In Stock, only 1 left!

0

2

Simplicity 1715759

ROD, 3/8 Diameter
(Superseded to 1715759SM)

$7.99

$

In Stock, Qty 15

0

3

Simplicity 2156302

SPRING, Extension
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

4

Simplicity 1713578

ROD, 1/2 Diameter
(Superseded to 1713578SM)

$15.99

$

In Stock, only 1 left!

0

5

Simplicity 1960519

NUT, Push for 1/2 Diameter Stud Capped
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1960687

NUT, Hex Flange 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 1732443

SPACER
(Superseded to 1732443SM)

$5.99

$

In Stock, Qty 20+

0

8

Simplicity 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 2860681

NUT, Hex Toplock Spiral Lock Flange, 3/8-16
(Superseded to 2860681SM)

$4.49

$

In Stock, Qty 11

0

10

Simplicity 1729625

ROD, E-Coat, 1/2-13 x 5.3
(Superseded to 1729625SM)

$43.99

$

In Stock, only 1 left!

0

11

Simplicity 1922606

CAPSCREW, Hex Head 3/8-16 x 1-3/4 G8
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

12

Simplicity 1706644

SPACER, 3/8 x 3/4 x 15/16
(Superseded to 1706644SM)

$8.49

$

In Stock, only 3 left!

0

13

Simplicity 1923325

CAPSCREW, Hex Head 5/16-18 x 7/8 G5
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

14

Simplicity 1704115A

PLATE, Support
(Superseded to 1704115ASM)

$11.99

$

In Stock, only 1 left!

0

15

Simplicity 1732092

ROD, 1/4 Diameter, Indicator, Cutting Height
(Superseded to 1732092SM)

$11.99

$

In Stock, only 1 left!

0

16

Simplicity 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

In Stock, only 1 left!

0

17

Simplicity 1733117A

BAR, Roller Square Slot
(Superseded to 1733117ASM)

$18.99

$

In Stock, only 1 left!

0

18

Simplicity 1733226A

UPSTOP
(Superseded to 1733226ASM)

$20.99

$

Usually ships in 2-12 days

0

19

Simplicity 1704082

NUT, Hex Adjusting
(Superseded to 1704082SM)

$5.49

$

In Stock, Qty 17

0

20

Simplicity 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 2172622

BOLT, Shoulder 3/8-16 G5
(Superseded to 2172622SM)

$6.99

$

In Stock, Qty 20+

0

22

Simplicity 1924361

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1677507

SLIDE
(Superseded to 1677507SM)

$6.99

$

In Stock, Qty 5

0

24

Simplicity 1913744

NUT, Hex Jam 1/2-13
(Superseded to 1913744SM)

$4.99

$

In Stock, Qty 20+

0

25

Simplicity 1960170

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

26

Simplicity 1704081A

TRUNNION
(Superseded to 1704081ASM)

$7.99

$

Usually ships in 2-12 days

0

27

Simplicity 2118053

PIN, Round Head Drilled, 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

28

Simplicity 1733118A

SHAFT ASSEMBLY, Rocker 38" (96cm)
(Superseded to 1733118ASM)

$110.99

$

Usually ships in 2-12 days

0

29

Simplicity 1931352

CARRIAGE BOLT, 3/8-16 x 1-1/2 G5
(Superseded to 1931352SM)

$4.49

$

In Stock, only 2 left!

0

30

Simplicity 1665374

STRAP, Roller
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

31

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 1931277

NUT, Hex Flange 5/16-18, Whiz Lock Small
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

33

Simplicity 1704116A

BRACKET, Height of Cut
(Superseded to 1704116BMYP)

$11.99

$

Usually ships in 2-12 days

0

34

Simplicity 1960520

NUT, Push for 5/8 Diameter Stud Capped
(Superseded to 1960520SM)

$3.99

$

In Stock, Qty 20+

0

36

Simplicity 2816001

PIN, Spring
(Superseded to 2816001SM)

$4.49

$

In Stock, Qty 11

0

37

Simplicity 1704097

WASHER, Detent
(Superseded to 1704097SM)

$4.49

$

In Stock, Qty 11

0

38

Simplicity 1733257

TRUNNION, 1-1/4
(Superseded to 1733257SM)

$28.99

$

Usually ships in 2-12 days

0

39

Simplicity 1733258

TRUNNION, 1-1/4
(Superseded to 1733258SM)

$

$

Not available

40

Simplicity 1719901

CRANK, Height Adjusting
(Superseded to 1719901SM)

$48.99

$

In Stock, only 1 left!

0

41

Simplicity 1714084

KNOB, Spinner
(Superseded to 1714084SM)

$12.99

$

In Stock, only 1 left!

0

42

Simplicity 1960093

NUT, Push Pal 5/8 Diameter Stud Capped
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

43

Simplicity 1930644

NUT, Hex Flange 1/2-13 Two-Way Lock
(Superseded to 1930644SM)

$3.49

$

In Stock, Qty 6

0

44

Simplicity 1733121A

SHAFT ASSEMBLY, Roller 38"
(Superseded to 1733121ASM)

$

$

Not available

45

Simplicity 1924366

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

46

Simplicity 1602946

SPACER, Split
(Superseded to 1602946SM)

$13.99

$

In Stock, Qty 20+

0

47

Simplicity 1722036

ROLLER, Rounded
(Superseded to 1722036SM)

$7.99

$

In Stock, Qty 20+

0

48

Simplicity 1668513

ROLLER
(Superseded to 1668513SM)

$10.99

$

In Stock, Qty 20+

0

49

Simplicity 1716953

SPACER
(Superseded to 1716953SM)

$13.99

$

In Stock, only 2 left!

0

55

Simplicity 1921977

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 10

0
