1696588-00 - Murray 46" Mower Deck (2015) 46" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

46" Mower Deck

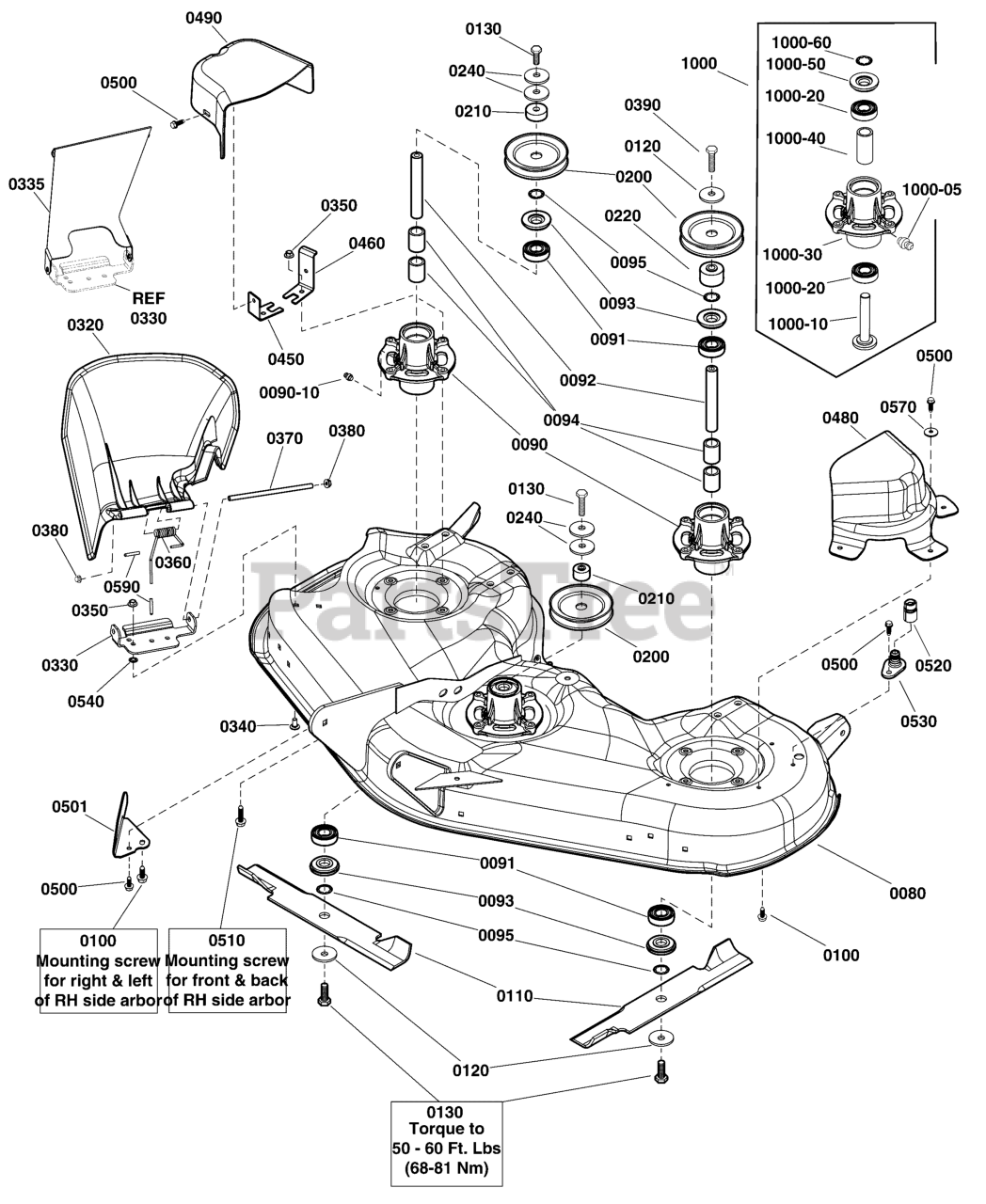

46" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0080

Murray 1687838YP

HOUSING, Mower Deck, 46", Graphite
(Superseded to 1687625YP)

$564.99

$

Usually ships in 2-12 days

0

0090

Murray 1735573YP

HOUSING, Spindle
(Superseded to 84003654)

$43.99

$

In Stock, Qty 7

0

0090-10

Murray 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0091

Murray 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0092

Murray 1735326YP

SHAFT, Spindle
(Superseded to 1760276YP)

$27.99

$

In Stock, only 3 left!

0

0093

Murray 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, only 1 left!

0

0094

Murray 1735328YP

SPACER, Bearing

$6.49

$

In Stock, only 1 left!

0

0095

Murray 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0100

Murray 704146

SCREW, 5/16-18 X 1, Hex Washer Self-Tap, GR 5 YZ

$3.99

$

In Stock, Qty 20+

0

0110

Murray 1739889AYP

BLADE, Mower

$27.99

$

In Stock, Qty 20+

0

0120

Murray 1656916SM

WASHER, Spring, 0.475ID x 1-3/4 OD

$7.49

$

In Stock, Qty 20+

0

0130

Murray 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 12

0

0200

Murray 1735686YP

PULLEY, Split, 4.6 OD

$19.99

$

In Stock, only 2 left!

0

0210

Murray 1735579YP

SPACER, Lower Drive

$7.49

$

Usually ships in 2-12 days

0

0220

Murray 1736445YP

SPACER, Pulley

$13.99

$

In Stock, only 1 left!

0

0240

Murray 1960769YP

WASHER, Belleville

$4.99

$

In Stock, only 1 left!

0

0320

Murray 1754745YP

DEFLECTOR, Discharge
(Superseded to 1687750YP)

$37.99

$

In Stock, Qty 20+

0

0330

Murray 1754868BMYP

BRACKET, Hinge

$20.99

$

Usually ships in 2-12 days

0

0335

Murray 1758935AYP

BRACKET, Support

$58.99

$

In Stock, only 1 left!

0

0340

Murray 703125

BOLT, Carriage, 5/16-18 x 5/8, G5

$3.99

$

In Stock, only 2 left!

0

0350

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0360

Murray 1759042YP

SPRING, Torsion

$6.49

$

Usually ships in 2-12 days

0

0370

Murray 1759064YP

ROD, Deflector

$8.49

$

Usually ships in 2-12 days

0

0380

Murray 704028

NUT, Push, 5/16

$5.49

$

In Stock, only 3 left!

0

0390

Murray 703171

SCREW, 7/16-14 X 1 3/4, Hex Head Cap, GR5

$3.99

$

In Stock, Qty 6

0

0450

Murray 1736518BMYP

BRACKET, Belt Cover, Front

$14.99

$

Usually ships in 2-12 days

0

0460

Murray 1736519BMYP

BRACKET, Belt Cover, Rear

$11.99

$

Usually ships in 2-12 days

0

0480

Murray 1735750YP

COVER, Belt, L.H.

$42.99

$

In Stock, only 1 left!

0

0490

Murray 1735752YP

COVER, Belt, R.H.

$29.99

$

Usually ships in 2-12 days

0

0500

Murray 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0501

Murray 1737279BMYP

BAFFLE, Pinchoff

$16.99

$

In Stock, only 1 left!

0

0510

Murray 1930600SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 19

0

0520

Murray 1756246YP

CONNECTOR, Washout Port

$15.99

$

In Stock, only 1 left!

0

0530

Murray 1756247YP

ADAPTOR, Washout Port

$6.49

$

In Stock, only 1 left!

0

0540

Murray 703297

RETAINER, 5/16, GR5 Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0570

Murray 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0

0590

Murray 5023489SM

CAP, Protector

$3.99

$

Usually ships in 2-12 days

0
