1696580-00 - Snapper 46"/117cm Mower Deck 46" & 52" Mower Deck - Height Adjustment Group Parts Diagram

46"/117cm Mower Deck

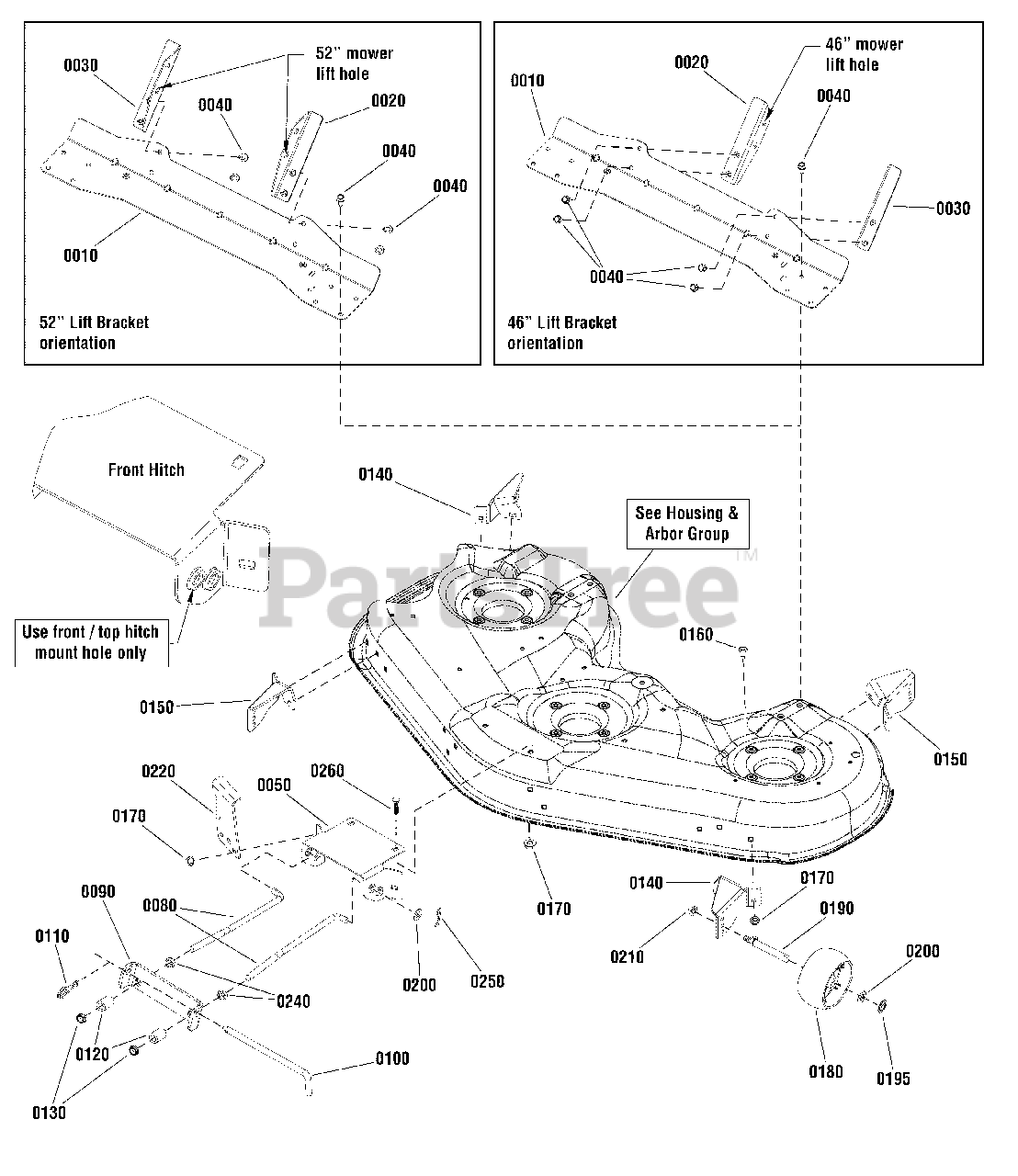

46" & 52" Mower Deck - Height Adjustment Group Parts Diagram

  • Title

0010

Snapper 1736070BMYP

SUPPORT, Rear Cross

$82.99

$

Usually ships in 2-12 days

0

0020

Snapper 1736072AYP

BRACKET, Rear Mower Pickup (52-LH, 46-RH)

$19.99

$

Usually ships in 2-12 days

0

0030

Snapper 1736073AYP

BRACKET, Rear Mower Pickup (52-RH, 46-LH)

$11.99

$

Usually ships in 2-12 days

0

0040

Snapper 703228

SCREW, 5/16-18 X .750, Washer Head Taptite, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0050

Snapper 1736071BMYP

HITCH, Front

$29.99

$

Usually ships in 2-12 days

0

0080

Snapper 1736081YP

ROD, Front Bail (1/2-13 thread) 46, 52" MWR

$12.99

$

Usually ships in 2-12 days

0

0090

Snapper 1737059AYP

HANGER, Front Mower

$17.99

$

Usually ships in 2-12 days

0

0100

Snapper 1731414SM

ROD, Latch, 1/2 x 9" Long, 42"

$14.99

$

Usually ships in 2-12 days

0

0110

Snapper 703852

PIN, 5/16 X 0.375, Spring Retainer, ZC/CL

$4.49

$

In Stock, Qty 20+

0

0120

Snapper 1679166SM

SPACER, 1/2 ID x 7/8 OD x 1-3/16 Long

$7.49

$

In Stock, only 2 left!

0

0130

Snapper 1960379SM

NUT, 1/2-13, Elastic Lock, ESNA Light Thin

$4.99

$

In Stock, Qty 18

0

0140

Snapper 1736074BMYP

BRACKET, Gauge Wheel (LH-Front; RH-Rear)

$15.99

$

In Stock, only 1 left!

0

0150

Snapper 1736075BMYP

BRACKET, Gauge Wheel (RH-Front; LH-Rear)

$14.99

$

In Stock, Qty 14

0

0160

Snapper 704065

BOLT, 5/16-18 x 7/8, G5, Carriage, ZC/CL

$4.49

$

In Stock, Qty 6

0

0170

Snapper 703409

NUT, 5/16-18, Serated Lock Flange, GR5, Zinc/Clear

$5.49

$

In Stock, Qty 20+

0

0180

Snapper 1736896YP

WHEEL, Gauge, .505" ID, 5" OD, 2.58" Wide, Black Poly

$16.99

$

In Stock, only 4 left!

0

0190

Snapper 1736539

BOLT, 3/8-16X.63, 3.0"X.5: Shank, .156 Hole, Gage Wheel
(Superseded to 1736539YP)

$8.99

$

Usually ships in 2-12 days

0

0195

Snapper 705437

PUSHNUT, .5" ID, Flat, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0200

Snapper 703853

WASHER, 0.50 (0.51 ID X 1.00 OD X .10 THK) Black

$4.99

$

In Stock, Qty 20+

0

0210

Snapper 703893

NUT, 3/8-16 Hex Flange Center Lock, Zinc Plated

$6.99

$

In Stock, Qty 20+

0

0220

Snapper 1736991AYP

Bracket, Upstop, 5.8" Tall

$12.99

$

Usually ships in 2-12 days

0

0240

Snapper 1913744SM

NUT, 1/2-13 Hex Jam, NC-2B Black

$4.99

$

In Stock, Qty 19

0

0250

Snapper 703300

PIN, Hair, 3/32 x 1-5/8, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0260

Snapper 703185

BOLT, 5/16-18X3/4 GR5, Carriage, YZ

$3.49

$

In Stock, Qty 12
