1696569-00 - Parton 27" Snow Thrower, 11.5hp (2015) Auger Housing Group Parts Diagram

27" Snow Thrower, 11.5hp

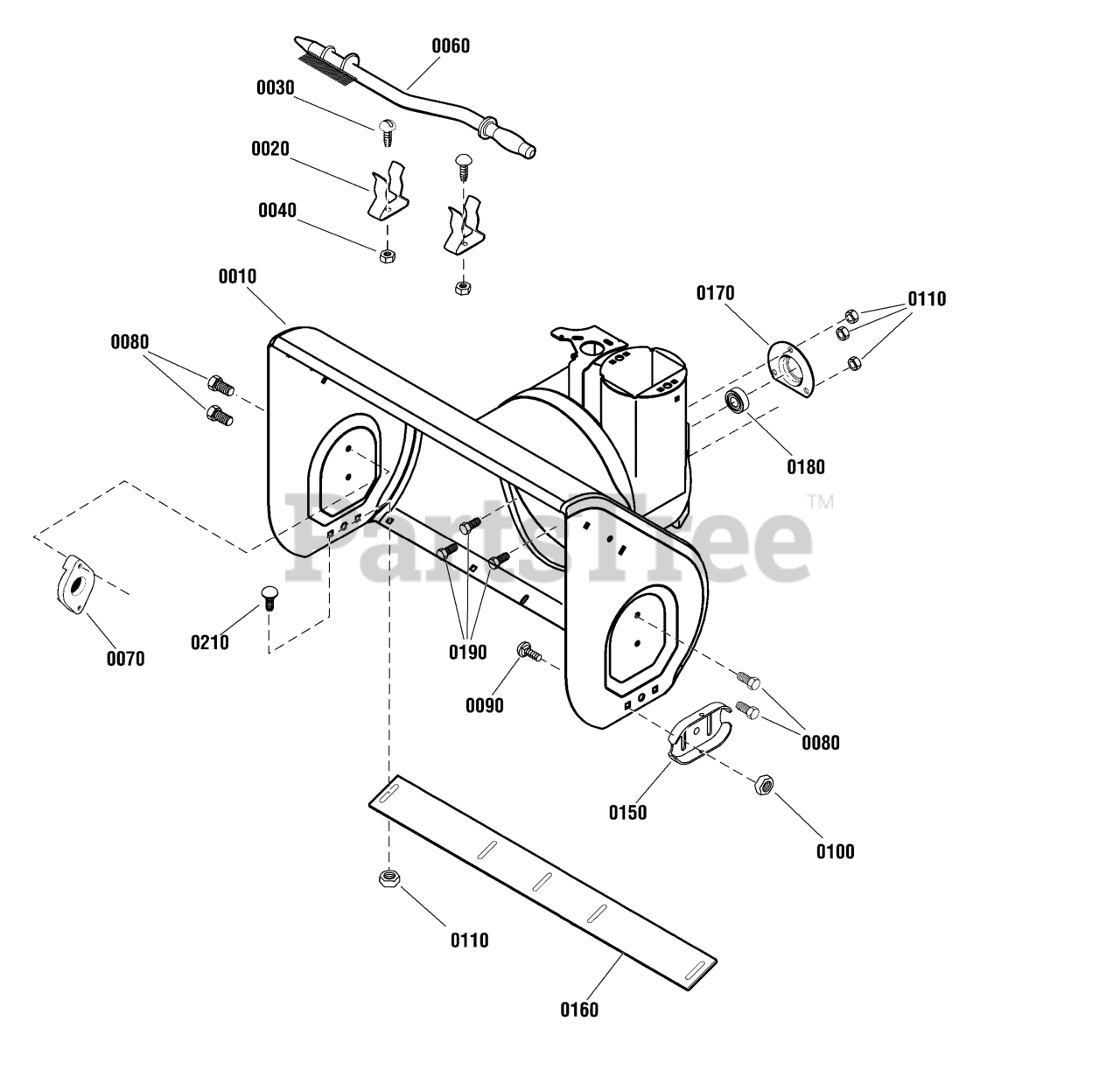

Auger Housing Group Parts Diagram

  • Title

0010

Murray 1687763YP

AUGER HOUSING KIT, 27"

$

$

Currently unavailable

0020

Murray 1736620YP

CLAMP

$6.49

$

In Stock, only 3 left!

0

0030

Murray 1960569SM

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 7091290SM

NUT, Hex Lock, Nylon, #10C
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0060

Murray 1736094YP

BRUSH, Cleanout

$34.99

$

In Stock, Qty 7

0

0070

Murray 53757MA

BEARING, Auger

$9.99

$

In Stock, only 2 left!

0

0080

Murray 25X021MA

CAPSCREW, Hex Washer Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 7091547YP

BOLT, Carriage, Short Neck, 3/8-16 x 3/4, G5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 7091619SM

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0110

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Murray 1727854ASM

SKID, Shoe Reversible
(Superseded to 1727854BMYP)

$16.99

$

In Stock, Qty 20+

0

0160

Murray 1740949AYP

BLADE, Scraper, 27"
(Superseded to 1740949BMYP)

$35.99

$

In Stock, only 2 left!

0

0170

Murray 1756809YP

RETAINER, Ball Bearing

$10.99

$

In Stock, only 4 left!

0

0180

Murray 1705897SM

BEARING, Ball

$8.49

$

In Stock, Qty 20+

0

0190

Murray 001X45MA

BOLT, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

0210

Murray 7090799SM

BOLT, Carriage, Short Neck, 5/16-18 x 5/8, G5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0
