1696568-00 - Parton 24" Snow Thrower, 9hp (2015) Handles & Controls Group Parts Diagram

24" Snow Thrower, 9hp

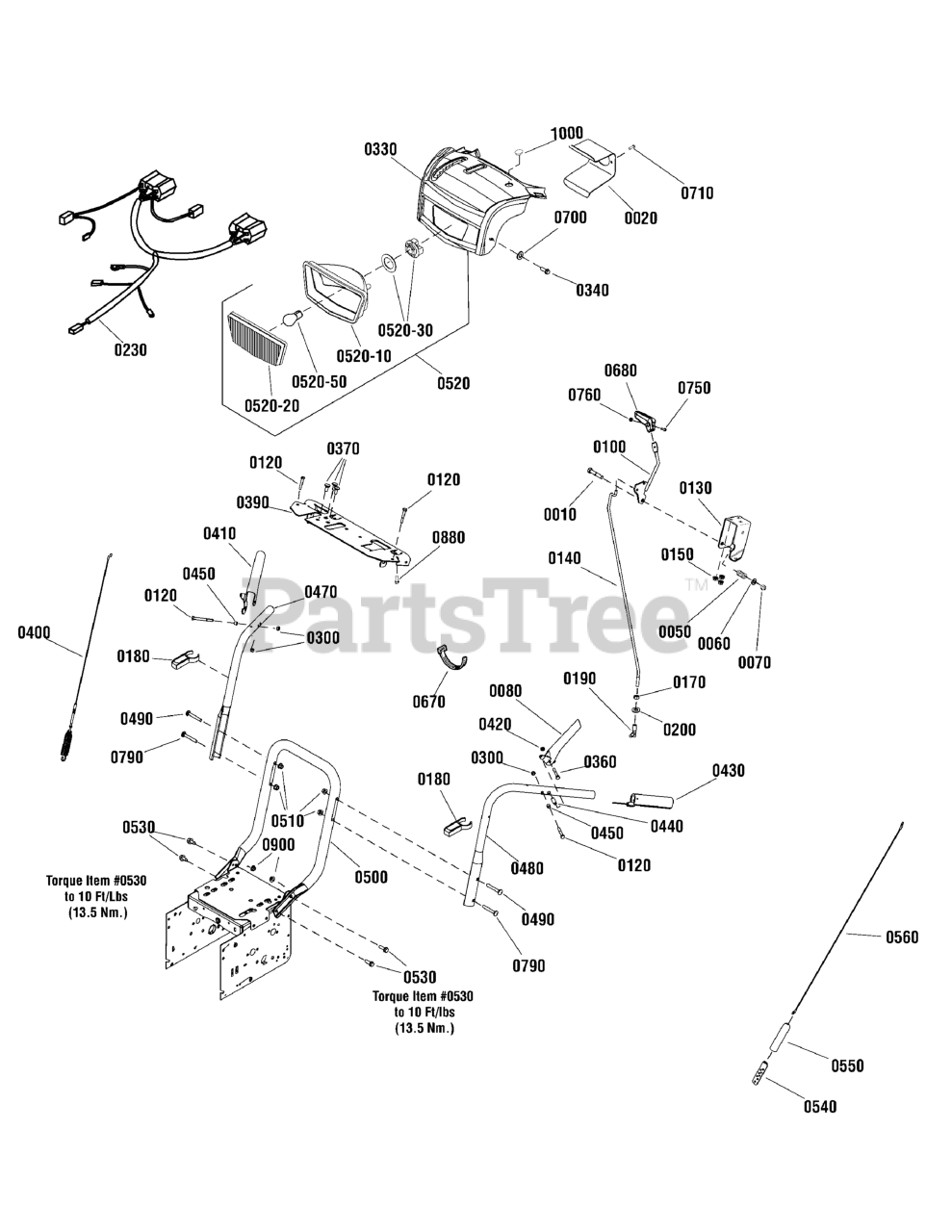

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, GR5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0020

Murray 1736305AYP

BRACKET, Light Mount

Note: (Used on 1696199 Only)

$31.99

$

Usually ships in 2-12 days

0

0050

Murray 50786MA

SPRING, 3/4"

$5.49

$

Usually ships in 2-12 days

0

0060

Murray 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0070

Murray 1919439SM

NUT, Hex Lock, ESNA LIGHT, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0080

Murray 1739782AYP

LEVER, Clutch, LH

$

$

Not available

0100

Murray 1736836YP

SPEED LEVER
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0120

Murray 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, GR5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0130

Murray 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0140

Murray 1734354SM

ROD, 25"
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

0150

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0170

Murray 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

0180

Murray 1739510YP

BRACKET, Lower Mounting

$14.99

$

Usually ships in 2-12 days

0

0190

Murray 1739290YP

BALLJOINT
(Superseded to 703224)

$21.99

$

In Stock, only 2 left!

0

0200

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0230

Murray 1750359YP

WIRING HARNESS, Headlights

Note: (Used on 1696199 Only)

$37.99

$

Usually ships in 2-12 days

0

0300

Murray 1920397SM

NUT, Hex Lock, ESNA LIGHT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0330

Murray 1753096YP

COVER ASSEMBLY, Panel
(Superseded to 1757540YP)

Note: (Used on 1696212 Only)

$109.99

$

Usually ships in 2-12 days

0

0330

Murray 1753097YP

COVER ASSEMBLY, Panel

Note: (Used on 1696199 Only)

$159.99

$

Usually ships in 2-12 days

0

0340

Murray 1960001SM

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

Usually ships in 2-12 days

0

0360

Murray 1753529YP

BOLT, Shoulder, 1/4 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

0370

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0390

Murray 1739500AYP

SUPPORT, Dash

$51.99

$

Usually ships in 2-12 days

0

0400

Murray 1737544YP

CABLE, Auger Drive
(Superseded to 703221)

$24.99

$

In Stock, only 4 left!

0

0410

Murray 1739783AYP

LEVER, Clutch, RH

$28.99

$

In Stock, only 1 left!

0

0420

Murray 1933896SM

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0430

Murray 1726317SM

GRIP

$8.49

$

In Stock, only 1 left!

0

0440

Murray 1736542YP

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0450

Murray 1678392SM

SPACER, 1/4 ID x 3/8 OD x 5/16"
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

0470

Murray 1734587ASM

HANDLE, Upper, RH

$51.99

$

Usually ships in 2-12 days

0

0480

Murray 1734586ASM

HANDLE, Upper, LH

$55.99

$

In Stock, only 1 left!

0

0490

Murray 1960273SM

BOLT, Carriage, Short Neck, 5/16-18 x 2-1/4, GR5
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

0500

Murray 1737274AYP

HANDLE, Lower

$107.99

$

Usually ships in 2-12 days

0

0510

Murray 1739305YP

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0520

Murray 1736208YP

HEADLIGHT ASSEMBLY

Note: (Used on 1696199 Only)

$42.99

$

Usually ships in 2-12 days

0

0520-10

DEFLECTOR, Light

Note: (Included with Ref. No. 0520)

$

$

Not available

0520-20

LENS

Note: (Included with Ref. No. 0520)

$

$

Not available

0520-30

Murray 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

Note: (Included with Ref. No. 0520)

$10.99

$

Usually ships in 2-12 days

0

0520-50

* BULB, Light, 12V 15W, 1156

Note: (Included with Ref. No. 0520)

$

$

Not available

0530

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, GR5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0540

Murray 313441MA

BRACKET, Cable Adjusting

$

$

Not available

0550

Murray 308146MA

BOOT, Spring End Cover

$6.49

$

Usually ships in 2-12 days

0

0560

Murray 1501124MA

CABLE, Front Drive
(Superseded to 762259MA)

$12.99

$

In Stock, only 2 left!

0

0670

Murray 1701011SM

TIE, Self Lock

Note: (Used on 1696199 Only)

$5.49

$

In Stock, only 2 left!

0

0680

Murray 1733192SM

KNOB, Slot Speed

$8.49

$

Usually ships in 2-12 days

0

0700

Murray 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0710

Murray 316042MA

SCREW, Hex Washer Head, #10-HL x 5/8

Note: (Used on 1696199 Only)

$4.49

$

Usually ships in 2-12 days

0

0750

Murray 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0760

Murray 7091290SM

NUT, Hex Lock, Nylon, #10C
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0790

Murray 1931338SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-3/4, GR5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

0880

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

0900

Murray 1960684SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703222)

Note: (Used on 1696199 Only)

$5.99

$

In Stock, only 2 left!

0

1000

Murray 1752273YP

PLUG

Note: (Used on 1696199 Only)

$3.99

$

Usually ships in 2-12 days

0
