1696568-00 - Parton 24" Snow Thrower, 9hp (2015) Auger Housing Group Parts Diagram

24" Snow Thrower, 9hp

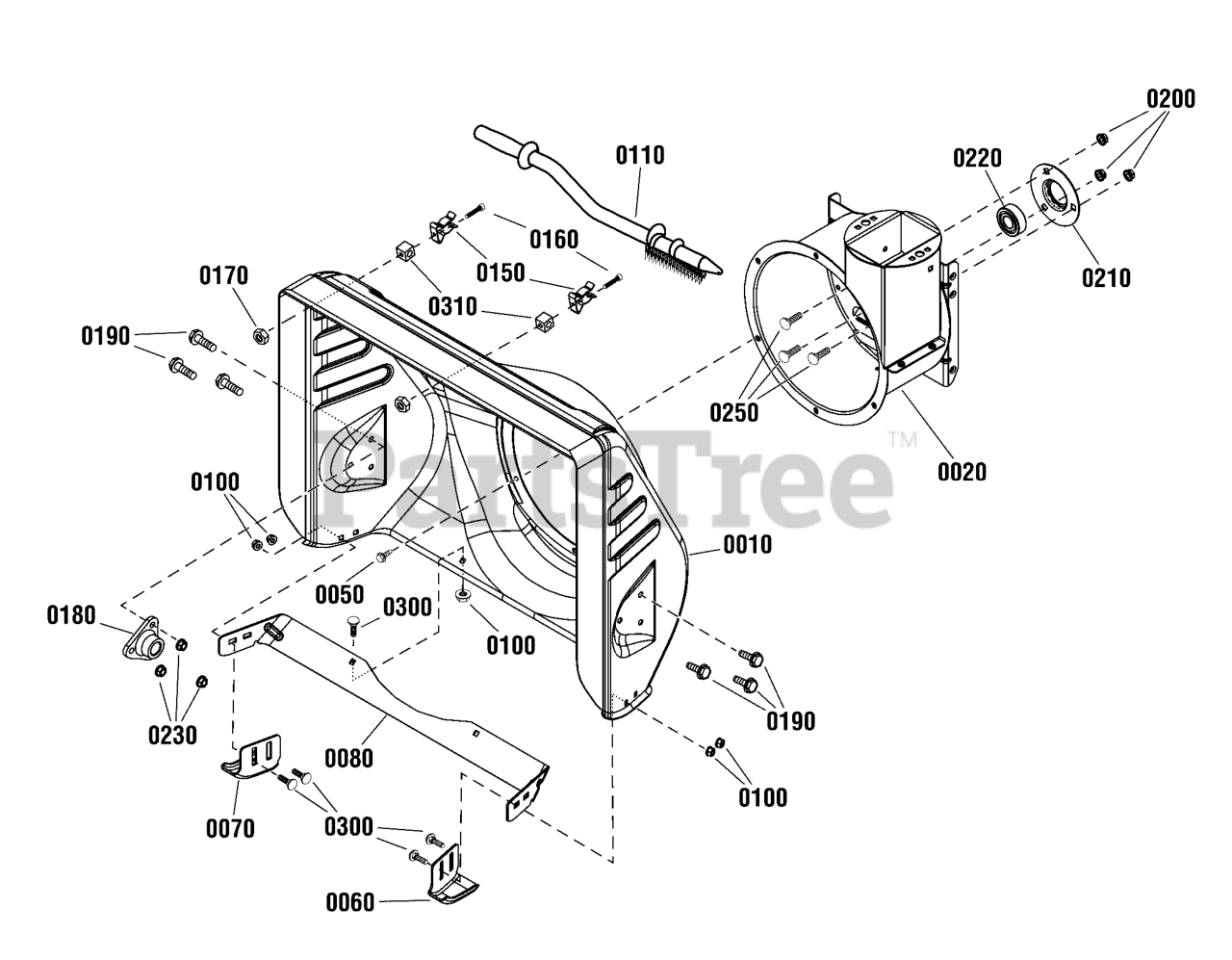

Auger Housing Group Parts Diagram

  • Title

0010

Murray 1687751YP

AUGER HOUSING KIT, Stamped, VL

$341.99

$

Usually ships in 2-12 days

0

0020

Murray 1755361ZYP

HOUSING ASSEMBLY, IMPELLER, 10"

$205.99

$

Usually ships in 2-12 days

0

0050

Murray 703583

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/8

$4.99

$

In Stock, Qty 20+

0

0060

Murray 1751407AYP

SKID SHOE, LH
(Superseded to 1751407BMYP)

$11.99

$

In Stock, only 3 left!

0

0070

Murray 1751406AYP

SKID SHOE, RH
(Superseded to 1751406BMYP)

$11.99

$

In Stock, only 4 left!

0

0080

Murray 1751418AYP

SCRAPER BAR
(Superseded to 1751418BMYP)

$

$

Not available

0100

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0110

Murray 1736094YP

STICK, Cleanout Brush, 22-1/2

$34.99

$

In Stock, only 4 left!

0

0150

Murray 1736620YP

CLAMP, Spring, Snow Brush

$6.49

$

In Stock, only 2 left!

0

0160

Murray 1750897YP

BOLT, Truss Head, 10-24 x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

0170

Murray 15X146MA

NUT, Nylock, 10 x 24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0180

Murray 9517MA

BEARING, Auger

$5.99

$

In Stock, Qty 18

0

0190

Murray 9357MA

CAPSCREW, Tapping, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

0200

Murray 1931277SM

NUT, Hex Flange, Serrated Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0210

Murray 1665982SM

RETAINER, Bearing

$6.99

$

In Stock, Qty 17

0

0220

Murray 2108202SM

BEARING, Ball, 3/4 ID x 1-3/4 OD x 5/8"

$11.99

$

In Stock, Qty 20+

0

0230

Murray 711862MA

NUT, Hex Flange, Top Lock, 5/16-18

$4.99

$

In Stock, Qty 5

0

0250

Murray 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0300

Murray 1931317SM

BOLT, Carriage, 1/4-20 x 3/4 G5
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

0310

Murray 578063MA

BLOCK, Universal Pivot

$5.49

$

In Stock, only 2 left!

0
