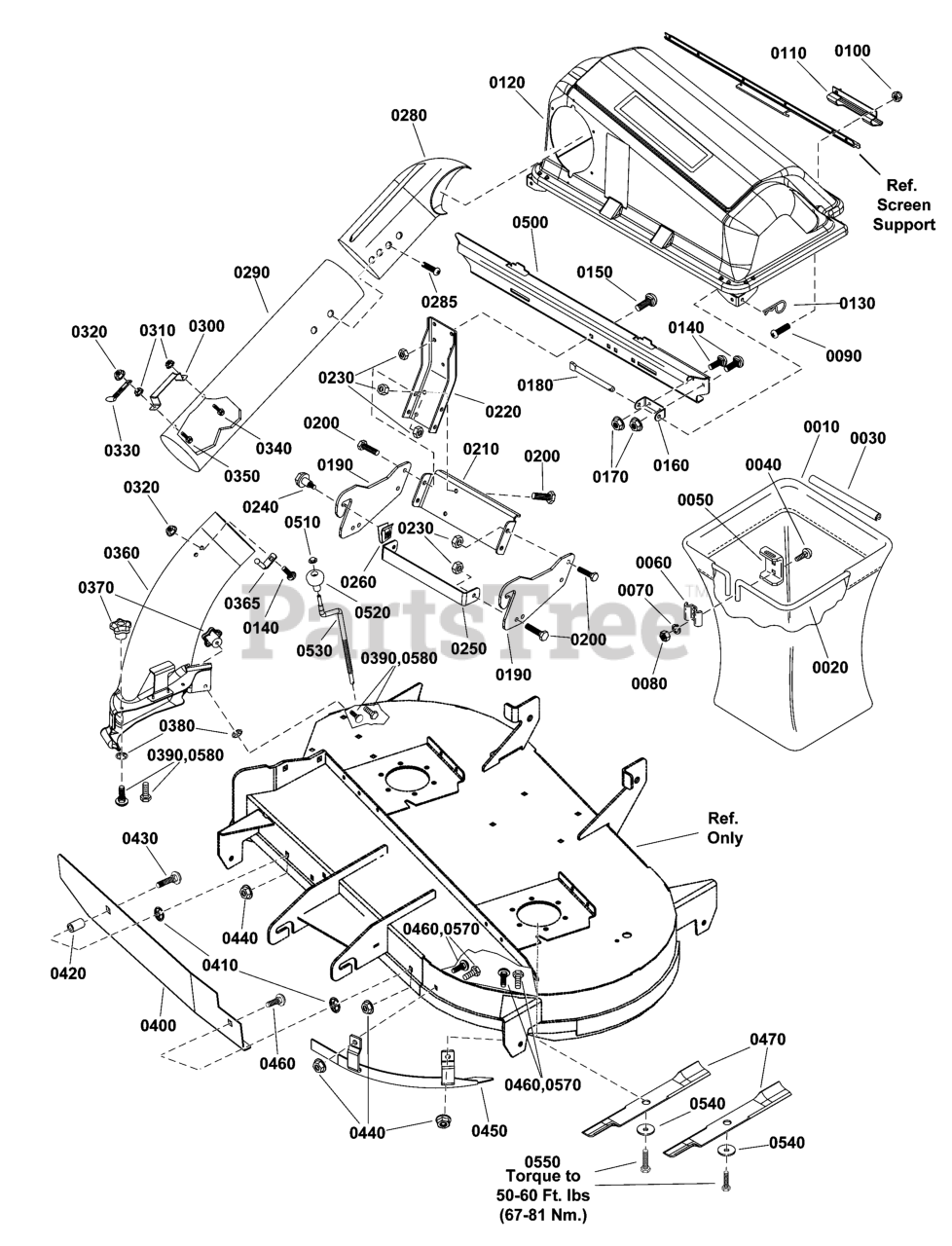

1696551A-01 - Snapper Clean Sweep Twin Grass Catcher for 42" Fab Mower Twin Catcher Assembly Parts Diagram

Clean Sweep Twin Grass Catcher for 42" Fab Mower

Twin Catcher Assembly Parts Diagram

  • Title

0010

Snapper 1703764SM

BAG, Grass, 15-1/2 x 16 x 22-1/2

$96.99

$

In Stock, Qty 7

0

0020

Snapper 1733491SM

HOOP, Twin

$146.99

$

In Stock, only 2 left!

0

0030

Snapper 1733709SM

EDGING, 12" Lg

$16.99

$

Usually ships in 2-12 days

0

0040

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0050

Snapper 1703807ASM

HANGER, Grass Bag Hoop

$21.99

$

In Stock, only 1 left!

0

0060

Snapper 1672023ASM

CLAMP

$11.99

$

Usually ships in 2-12 days

0

0070

Snapper 703116

LOCKWASHER, Split, 5/16
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

0080

Snapper 703465

NUT, 5/16-18, GR5
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 14

0

0090

Snapper 1960404SM

SCREW, Truss #10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0

0100

Snapper 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, Qty 10

0

0110

Snapper 054537MA

HANDLE, Plastic

$18.99

$

In Stock, only 2 left!

0

0120

Snapper 1736656YP

COVER & SCREEN ASSEMBLY, Twin

$

$

Not available

0130

Snapper 703796

PIN, Quick, 1-7/8 Lg

$5.49

$

In Stock, Qty 12

0

0140

Snapper 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

0150

Snapper 1931350SM

BOLT, Carriage,3/8- 16 x 1, G5
(Superseded to 703815)

$4.49

$

In Stock, only 2 left!

0

0160

Snapper 1736886AYP

PIVOT, Hinge
(Superseded to 1736886BMYP)

$34.99

$

Usually ships in 2-12 days

0

0170

Snapper 7091584SM

NUT, Serrated Flange, 1/4-20, GR5
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

0180

Snapper 054407ZMA

PIN, Cover Hinge, 3/8 Dia.x 3-3/4

$14.99

$

In Stock, Qty 7

0

0190

Snapper 1736029AYP

PLATE, Bagger Mount

$76.99

$

Usually ships in 2-12 days

0

0200

Snapper 1920415SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, G5
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 11

0

0210

Snapper 1736028AYP

BRACKET, Upright Support

$121.99

$

Usually ships in 2-12 days

0

0220

Snapper 1707526ASM

SUPPORT, Upright

$82.99

$

Usually ships in 2-12 days

0

0230

Snapper 703793

HEX, Flange Whiz, 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

0240

Snapper 1728976SM

BOLT, Shoulder, 5/16-18 x 1-5/8

$6.49

$

In Stock, only 2 left!

0

0250

Snapper 1736030AYP

BRACKET, Hitch Support

$71.99

$

Usually ships in 2-12 days

0

0260

Snapper 1960717SM

NUT, Speed, 5/16-1
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

0280

Snapper 1733885SM

ELBOW, Upper Tube

$103.99

$

Usually ships in 2-12 days

0

0285

Snapper 26X239MA

SCREW, 1/4 X 3/4

$4.49

$

Usually ships in 2-12 days

0

0290

Snapper 1734299SM

TUBE, Clear

$140.99

$

In Stock, only 3 left!

0

0300

Snapper 054416ZMA

HANDLE, Tube Connect

$20.99

$

In Stock, only 3 left!

0

0310

Snapper 1928372SM

NUT, Hex Keps, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 9

0

0320

Snapper 703916

NUT, Hex Flange, 1/4-20

$4.99

$

In Stock, only 2 left!

0

0330

Snapper 2171600SM

STRAP, Hood

$7.99

$

In Stock, Qty 20+

0

0340

Snapper 004X24MA

SCREW-Machine, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0350

Snapper 004X71MA

SCREW, Machine,1/4-20 x 1

$4.99

$

In Stock, only 4 left!

0

0360

Snapper 1759606YP

BOOT, Bagging
(Superseded to 1759298YP)

$463.99

$

Usually ships in 2-12 days

0

0365

Snapper 054563MA

PIN, Latch

$23.99

$

In Stock, only 2 left!

0

0370

Snapper 706490

KNOB, Threaded

$14.99

$

In Stock, Qty 5

0

0380

Snapper 703826

BOLT, Pushnut, 1/4

$3.49

$

In Stock, Qty 20+

0

0390

Snapper 703576

BOLT, Carriage, 1/4-20 X 3/4
(Superseded to 703101)

$3.99

$

In Stock, Qty 10

0

0400

Snapper 84005360

BAFFLE, Bagging

$130.99

$

In Stock, only 1 left!

0

0410

Snapper 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0420

Snapper 5103660YP

SPACER

$4.99

$

In Stock, only 4 left!

0

0430

Snapper 703175

BOLT, Carriage, 5/16-18 x 1 3/4

$3.99

$

In Stock, only 1 left!

0

0440

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0450

Snapper 84005357

BAFFLE, Front

$100.99

$

Usually ships in 2-12 days

0

0460

Snapper 704065

BOLT, Carriage, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 17

0

0470

Snapper 1759262BMYP

BLADE, 42"

$30.99

$

In Stock, Qty 12

0

0500

Snapper 1736026ASM

CROSS SUPPORT, Twin

$

$

Not available

0510

Snapper 703948

PUSHNUT, 3/8

$4.49

$

In Stock, Qty 20+

0

0520

Snapper 1714084SM

KNOB, Spinner

$12.99

$

In Stock, Qty 20+

0

0530

Snapper 1727681SM

CRANK, Height Adjust

$140.99

$

In Stock, only 1 left!

0

0540

Snapper 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0550

Snapper 2820676SM

CAPSCREW, Hex Head, 7/16-14 X 1
(Superseded to 1920676SM)

$5.49

$

In Stock, Qty 20+

0

0570

Snapper 703408

CAPSCREW, Hex Head, 5/16-18 x 7/8

Note: (Optional)

$4.99

$

In Stock, Qty 13

0

0580

Snapper 710025MA

SCREW, 1/4-20 x 3/4

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0
