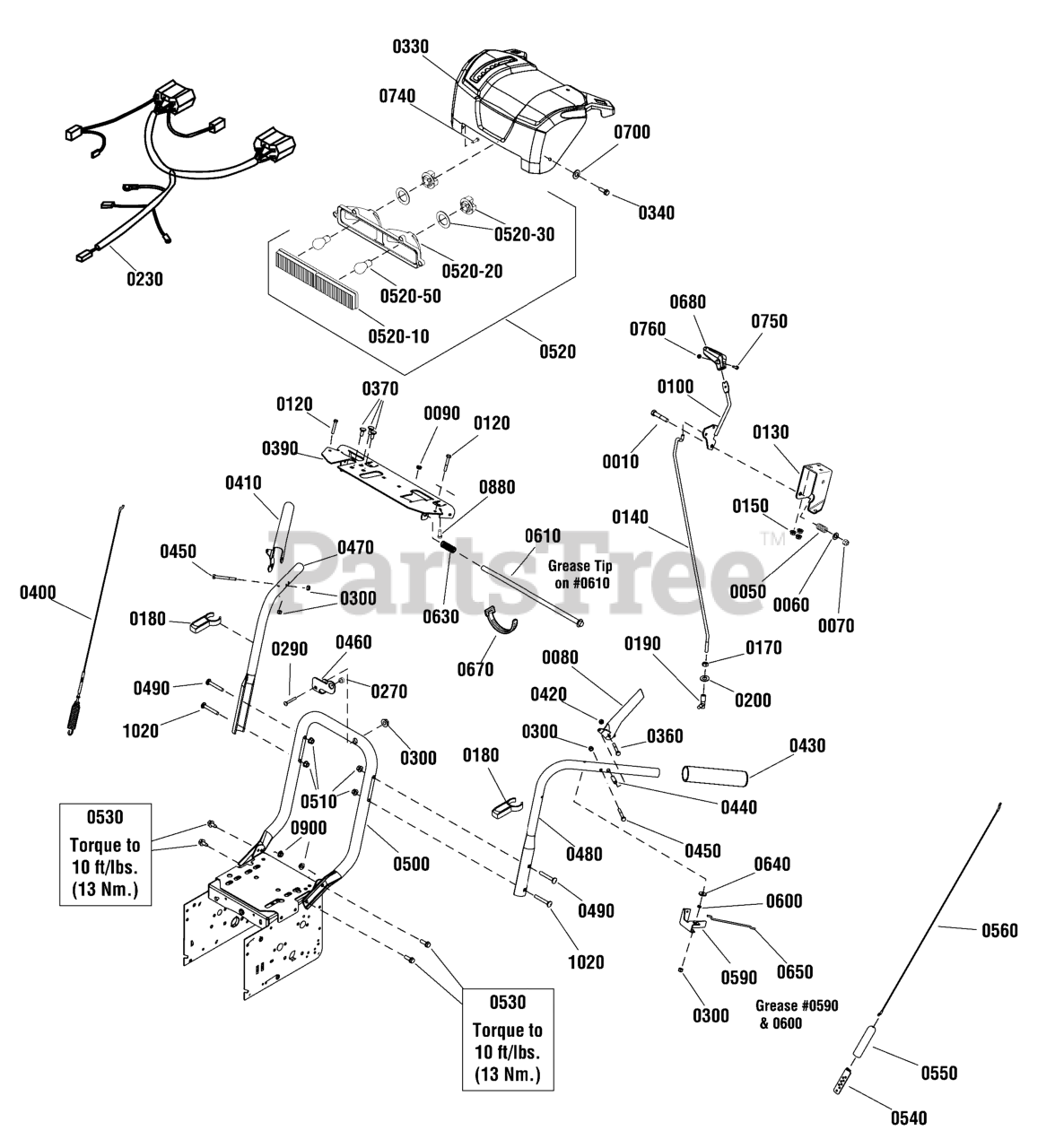

1696483-00 (CM 61900 E) - Canadiana 24" Snow Thrower, Canada (2015) Handles & Controls Group Parts Diagram

24" Snow Thrower, Canada

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 703589

CAPSCREW, Hex Head, 3/8-16 x 2

$4.49

$

In Stock, only 1 left!

0

0050

Murray 50786MA

SPRING

$5.49

$

Usually ships in 2-12 days

0

0060

Murray 703590

WASHER, .406

$3.99

$

In Stock, Qty 19

0

0070

Murray 703117

NUT, Hex Nylock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0080

Murray 1739782AYP

LEVER, Clutch, LH

$

$

Not available

0090

Murray 1667588SM

BUSHING

$5.99

$

In Stock, Qty 20+

0

0100

Murray 703047

LEVER, Speed

$56.99

$

Usually ships in 2-12 days

0

0120

Murray 703588

CAPSCREW, Hex Head, 1/4-20 x 1-3/4

$3.99

$

In Stock, only 1 left!

0

0130

Murray 1737684YP

BRACKET, Control

$16.99

$

Usually ships in 2-12 days

0

0140

Murray 704085

ROD, Speed Control

$22.99

$

Usually ships in 2-12 days

0

0150

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0170

Murray 703331

NUT, 5/16-24, GR5

$3.99

$

In Stock, Qty 20+

0

0180

Murray 1739487YP

BRACKET, Mounting

$6.49

$

In Stock, only 1 left!

0

0190

Murray 703224

BALLJOINT

$21.99

$

In Stock, only 2 left!

0

0230

Murray 1750359YP

WIRING HARNESS

$37.99

$

Usually ships in 2-12 days

0

0270

Murray 1501874MA

BUSHING, Chute Crank

$4.99

$

In Stock, only 1 left!

0

0290

Murray 1931323SM

BOLT, Carriage, 1/4-20 x 2, GR5

$4.49

$

Usually ships in 2-12 days

0

0300

Murray 703232

NUT, Nylock, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0330

Murray 1736186YP

DASH
(Superseded to 1757550YP)

$131.99

$

Usually ships in 2-12 days

0

0340

Murray 703062

SCREW, Hex Washer Head, Plastite, #10-14

$4.49

$

Usually ships in 2-12 days

0

0360

Murray 1753529YP

BOLT, Shoulder

$3.99

$

Usually ships in 2-12 days

0

0370

Murray 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 18

0

0390

Murray 1739500BMYP

SUPPORT, Dash

$54.99

$

Usually ships in 2-12 days

0

0400

Murray 703221

CABLE & SPRING ASSEMBLY

$24.99

$

In Stock, only 4 left!

0

0410

Murray 1739783AYP

LEVER, Clutch, RH

$28.99

$

In Stock, only 1 left!

0

0420

Murray 703412

NUT, Nylock, #10-24, GR2

$4.49

$

In Stock, only 2 left!

0

0430

Murray 1726317SM

GRIP

$8.49

$

In Stock, only 1 left!

0

0440

Murray 703223

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0450

Murray 703045

CAPSCREW, Hex Head, Shoulder, 1/4-20 x 1-3/4, GR5

$3.49

$

Usually ships in 2-12 days

0

0460

Murray 1735589YP

BRACKET, Rod Support

$9.49

$

Usually ships in 2-12 days

0

0470

Murray 1734587ASM

HANDLE, Upper, RH

$51.99

$

Usually ships in 2-12 days

0

0480

Murray 1734586ASM

HANDLE, Upper, LH

$55.99

$

In Stock, only 1 left!

0

0490

Murray 704421

BOLT, Carriage, 5/16 x 2-1/4

$5.49

$

In Stock, only 1 left!

0

0500

Murray 1737274AYP

HANDLE, Lower

$107.99

$

Usually ships in 2-12 days

0

0510

Murray 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0520

Murray 1736176YP

HEADLIGHT ASSEMBLY

$64.99

$

Usually ships in 2-12 days

0

0520-10

LENS, Twin Light

Note: (Included in Ref. No. 0520)

$

$

Not available

0520-20

DEFLECTOR

Note: (Included in Ref. No. 0520)

$

$

Not available

0520-30

Murray 1736179YP

SOCKET & GASKET ASSEMBLY, Headlight
(Superseded to 1736180YP)

Note: (Included in Ref. No. 0520)

$10.99

$

Usually ships in 2-12 days

0

0520-50

* BULB, Headlight, 12V 15W (1156)

Note: (Included in Ref. No. 0520)

$

$

Not available

0530

Murray 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 18

0

0540

Murray 313441MA

BRACKET, Cable Adjust

$

$

Not available

0550

Murray 308146MA

BOOT, Spring Cover

$6.49

$

Usually ships in 2-12 days

0

0560

Murray 1502113MA

CABLE, Drive

$22.99

$

In Stock, Qty 20+

0

0590

Murray 1733505BMYP

BRACKET, Pivot

$14.99

$

Usually ships in 2-12 days

0

0600

Murray 703124

SPACER, 1/4 X .118, GR5

$3.99

$

Usually ships in 2-12 days

0

0610

Murray 1736363YP

ROD & SPRING ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0630

Murray 2108360SM

SPRING, Compression

$5.49

$

In Stock, only 1 left!

0

0640

Murray 703229

WASHER, Flat, 1/4 ID

$4.49

$

In Stock, Qty 7

0

0650

Murray 1736360YP

ROD, Hold Down

$11.99

$

Usually ships in 2-12 days

0

0670

Murray 703586

TIE, Self Locking

$4.99

$

Usually ships in 2-12 days

0

0680

Murray 1733192SM

KNOB, Speed

$8.49

$

Usually ships in 2-12 days

0

0700

Murray 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0710

Murray 316042MA

SCREW, Hex Washer Head, #10-HL x 5/8

$4.49

$

Usually ships in 2-12 days

0

0740

Murray 7091105YP

SCREW, #10-16 x 1/2

$5.49

$

In Stock, only 4 left!

0

0750

Murray 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0760

Murray 703412

NUT, Nylock, #10-24, GR2

$4.49

$

In Stock, only 2 left!

0

0880

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

0900

Murray 703222

NUT, Hex KEPS, 5/16-18

$5.99

$

In Stock, only 2 left!

0

1020

Murray 703175

BOLT, Carriage, 5/16-18 x 1-3/4

$3.99

$

In Stock, only 2 left!

0
