Canadiana 1696483-00 (CM 61900 E) - Canadiana 24" Snow Thrower, Canada (2015) Engine & Frame Group Parts Lookup with Diagrams

0010

Murray 12D107-0166-F8

* ENGINE, 900 Series Briggs & Stratton, Export

Note: (Engine Model: 12D107-0166-F8)

$

Not available 

0010-10

Murray 793193

Guard-Muffler

$55.99

$

Usually ships in 2-12 days

0010-20

Murray 699854

Screw

$3.99

$

In Stock, Qty 7

0010-30

Murray 795027

Cap-Fuel Tank

$10.99

$

In Stock, Qty 20+

0050

Murray 75246GS

SCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0090

Murray 1739514YP

PULLEY ASSEMBLY

$42.99

$

In Stock, only 2 left!

0100

Murray 703298

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0110

Murray 7091513YP

SCREW, 5/16-24 X 1.75, Hex Head Cap, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 13

0120

Murray 1733324SM

V-BELT, Traction Drive, 3L 33.13

$19.99

$

In Stock, Qty 20+

0130

Murray 585416MA

BELT, Auger Drive, V4L 38.10

$22.99

$

In Stock, Qty 20+

0135

Murray 1750314YP

SEAL, Strip

$8.99

$

Usually ships in 2-12 days

0140

Murray 1737377YP

STOP, Belt

$11.99

$

In Stock, only 1 left!

0150

Murray 703116

WASHER, Split Lock, .32 x .58 x .08

$3.49

$

In Stock, Qty 20+

0160

Murray 703336

SCREW, 5/16-24 x 3/4 Hex Head Cap, GR 5

$4.49

$

In Stock, Qty 5

0170

Murray 1687798YP

BRACKET, Idler

$5.49

$

Usually ships in 2-12 days

0171

Murray 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 7

0172

Murray 703222

NUT, Hex, KEPS, 5/16-18

$5.99

$

In Stock, only 2 left!

0175

Murray 706503

SCREW, Hex Head, 3/8-16 x 1-3/4

$4.49

$

Usually ships in 2-12 days

0180

Murray 1501065MA

BUSHING, Idler Bracket

$5.49

$

In Stock, only 2 left!

0190

Murray 165X164MA

SPRING, Extension, Idler

$7.49

$

In Stock, only 3 left!

0200

Murray 1502120MA

IDLER, Plastic Ball Bearing

$21.99

$

In Stock, Qty 6

0205

Murray 71046MA

NUT, Hex Nylock, 3/8-16

$4.49

$

Usually ships in 2-12 days

0210

Murray 703230

NUT, Center Lock, 3/8-16

$4.99

$

In Stock, Qty 9

0220

Murray 1960032SM

SCREW, Hex Head, 3/8-16 x 1 1/4

$5.49

$

In Stock, only 1 left!

0230

Murray 1739574YP

AUGER IDLER

$38.99

$

Usually ships in 2-12 days

0240

Murray 1739964YP

SPACER, Auger Bracket

$9.49

$

Usually ships in 2-12 days

0250

Murray 703128

WASHER, 33/64 x .7/8 OD

$3.49

$

In Stock, Qty 20+

0260

Murray 1733451SM

ARM, Control

$20.99

$

In Stock, only 3 left!

0270

Murray 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0280

Murray 703313

PIN, Clevis

$4.99

$

In Stock, Qty 5

0290

Murray 1737221BMYP

PANEL, Bottom

$43.99

$

Usually ships in 2-12 days

0300

Murray 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0310

Murray 165X159MA

SPRING, Extension, Auger, 5-1/8"

$6.99

$

In Stock, Qty 9

0320

Murray 1739107BNYP

FRAME BOX

$119.99

$

Usually ships in 2-12 days

0325

Murray 1739093BMYP

ANGLE, Auger and Traction

$19.99

$

Usually ships in 2-12 days

0330

Murray 1754138BNYP

PLATE, Engine Mount

$67.99

$

Usually ships in 2-12 days

0350

Murray 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0360

Murray 1750551YP

COVER, Belt

$26.99

$

Usually ships in 2-12 days

0370

Murray 1751355YP

SCREW, Hex Washer Head, Tap, SEMS, 1/4-20 x 3/4

$6.49

$

Usually ships in 2-12 days

0390

Murray 1733868BMYP

PLATE, Seal

$13.99

$

In Stock, only 1 left!

0390-10

Murray 1733898SM

SEAL, Foam

$6.49

$

Usually ships in 2-12 days

0410

Murray 703301

BOLT, Hex, 5/16-24 x 1.

$3.99

$

In Stock, only 2 left!

0420

Murray 7023590SM

PIN, Cotter, Self Locking, 1/4"

$3.99

$

In Stock, Qty 20+

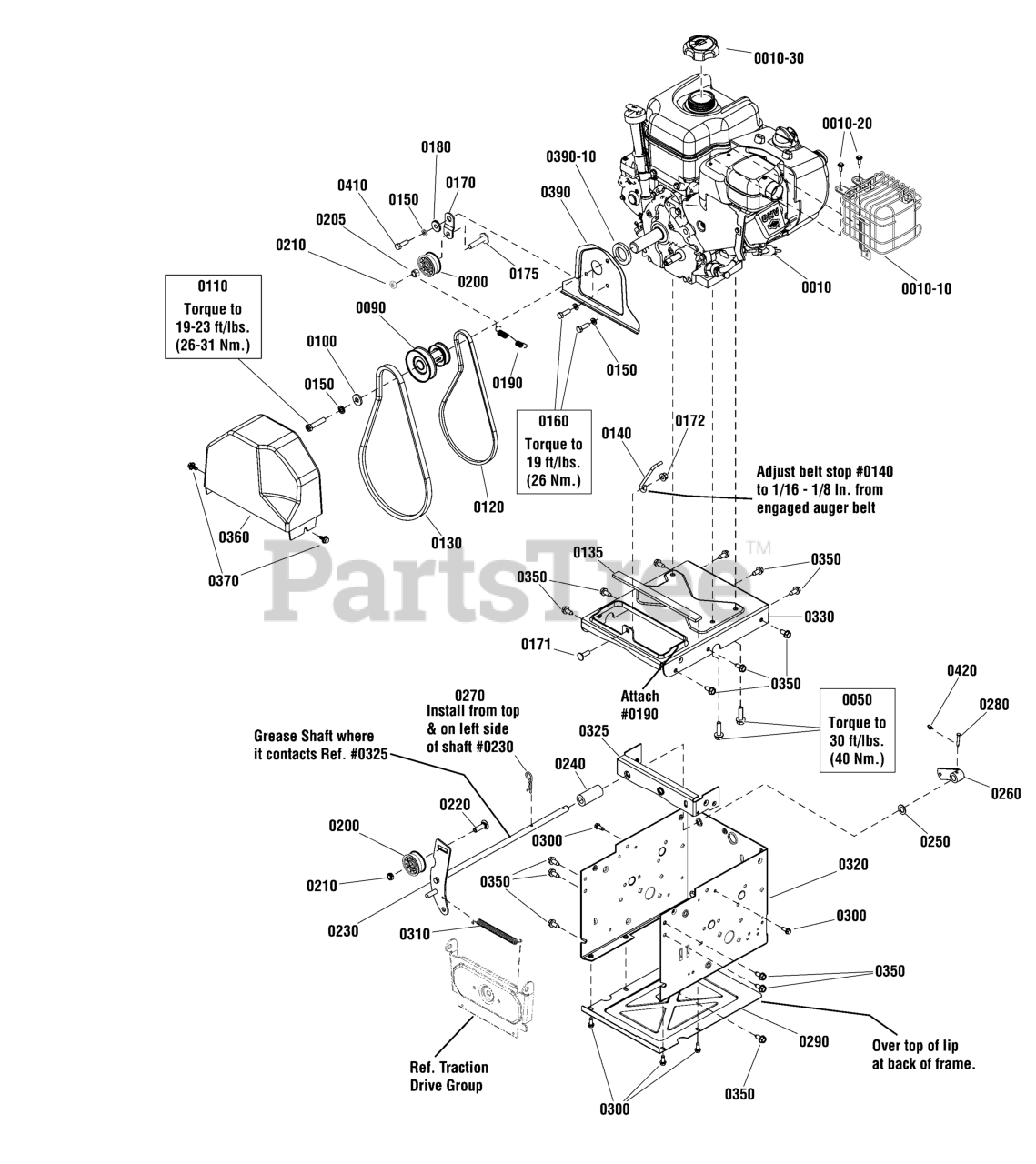

1696483-00 (CM 61900 E) - Canadiana 24" Snow Thrower, Canada (2015) Engine & Frame Group Parts Diagram

Engine & Frame Group Parts Diagram
