1696483-00 (CM 61900 E) - Canadiana 24" Snow Thrower, Canada (2015) Chute & Rotation Group Parts Diagram

24" Snow Thrower, Canada

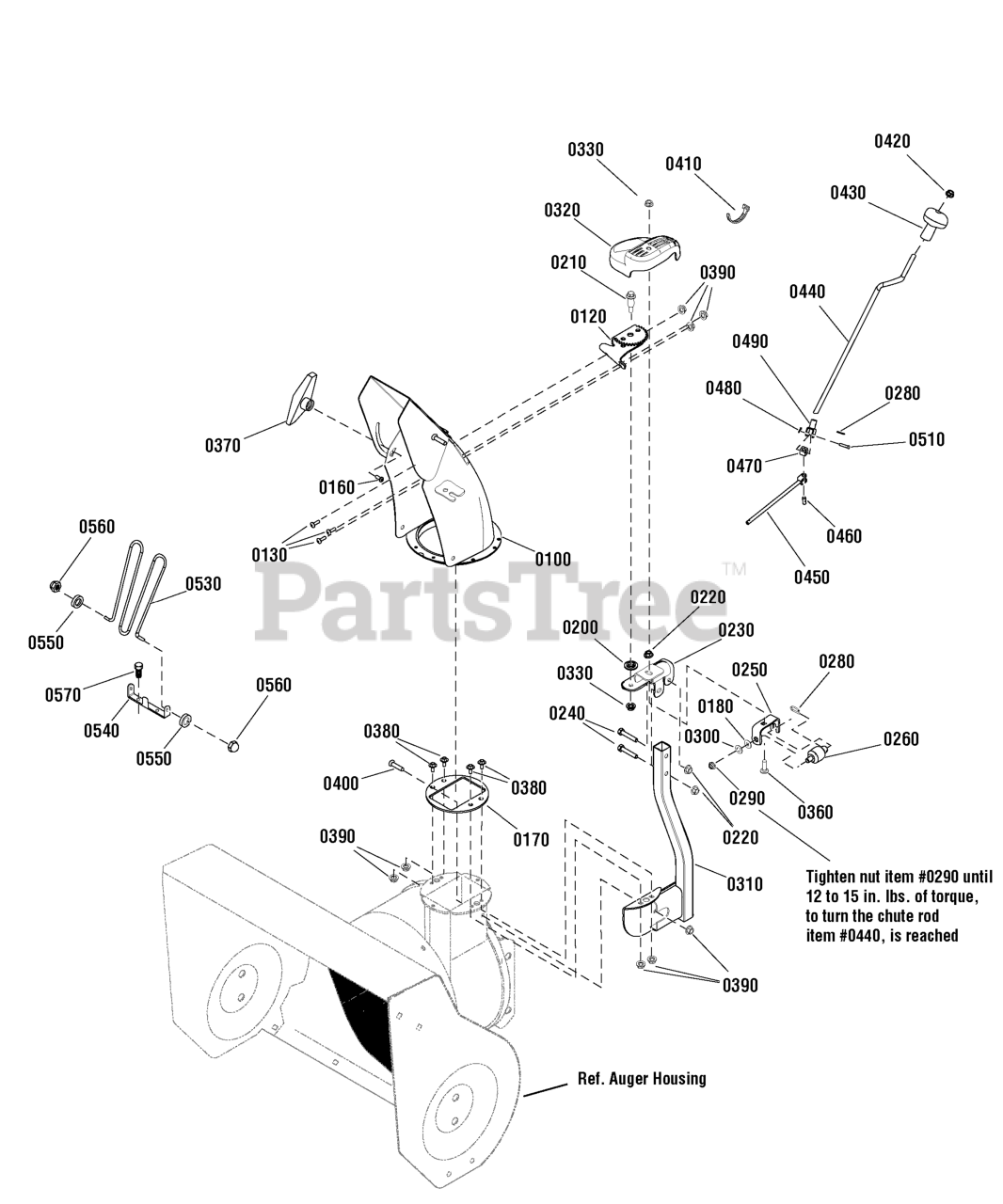

Chute & Rotation Group Parts Diagram

  • Title

0100

Murray 1736379AYP

CHUTE ASSEMBLY, Red

$125.99

$

Usually ships in 2-12 days

0

0120

Murray 704325

GEAR, Chute Support

$31.99

$

Usually ships in 2-12 days

0

0130

Murray 1960715SM

SCREW, Truss-Head, Torx, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0160

Murray 704210

BOLT, Carriage, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 12

0

0170

Murray 1735767YP

GUARD, Chute Ring

$6.49

$

Usually ships in 2-12 days

0

0180

Murray 2860210SM

WASHER, Nylon, 3/8

$4.49

$

In Stock, only 2 left!

0

0200

Murray 1733026SM

WASHER, 1/2 x 1-1/8 OD

$4.49

$

Usually ships in 2-12 days

0

0210

Murray 1732412SM

BOLT, Shoulder, 5/16-18 X 5/8, G5

$15.99

$

Usually ships in 2-12 days

0

0220

Murray 703222

NUT, Hex, KEPS 5/16-18

$5.99

$

In Stock, only 2 left!

0

0230

Murray 1734423BMYP

SUPPORT, Gear Crank

$17.99

$

Usually ships in 2-12 days

0

0240

Murray 1922127SM

SCREW, Hex Head Cap, 5/16-18 x 1 3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0250

Murray 1738020YP

SUPPORT, Worm, Clear

$5.99

$

Usually ships in 2-12 days

0

0260

Murray 1734439SM

GEAR, Worm, Chute, L.H.

$35.99

$

Usually ships in 2-12 days

0

0280

Murray 1501293MA

PIN, Hair, Chute Gear

$4.99

$

Usually ships in 2-12 days

0

0290

Murray 1960762SM

NUT, Locking, 3/8-24

$4.99

$

Usually ships in 2-12 days

0

0300

Murray 1734542SM

WASHER, Cup, 3/8

$5.49

$

Usually ships in 2-12 days

0

0310

Murray 1736195BMYP

CHUTE SUPPORT ASSEMBLY

$43.99

$

Usually ships in 2-12 days

0

0320

Murray 1734442SM

COVER, Gear

$7.99

$

In Stock, only 1 left!

0

0330

Murray 704067

NUT, 5/16-18, Hex Flange, Center Lock

$3.99

$

In Stock, Qty 20+

0

0360

Murray 703800

BOLT, Carriage, 5/16-18 X 1, G5

$3.99

$

In Stock, Qty 7

0

0370

Murray 1501260MA

KNOB, Wing 5/16-18

$7.99

$

In Stock, Qty 5

0

0380

Murray 691005

SCREW, Shoulder, Hex-Washer, 11/16
(Superseded to 594618)

$3.99

$

In Stock, Qty 20+

0

0390

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0400

Murray 703576

BOLT, Carriage, 1/4-20 X 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

0410

Murray 703586

TIE, Self-Locking, 7"

$4.99

$

Usually ships in 2-12 days

0

0420

Murray 703948

PUSHNUT, 3/8 Dia.

$4.49

$

In Stock, Qty 17

0

0430

Murray 1714084SM

KNOB, Spinner, 3/8 ID, 2-3/16 OD, 2-1/2 Lg

$12.99

$

In Stock, only 1 left!

0

0440

Murray 1751224YP

CRANK, Chute Hande

$14.99

$

Usually ships in 2-12 days

0

0450

Murray 703173

ROD & YOKE ASSEMBLY

$27.99

$

Usually ships in 2-12 days

0

0460

Murray 578060MA

PIN, Universal Joint, 3/8 X 1

$7.49

$

Usually ships in 2-12 days

0

0470

Murray 578063MA

BLOCK, Universal Pivot

$5.49

$

In Stock, only 2 left!

0

0480

Murray 703464

PIN, Cotter, 5/8 X 1/2

$4.49

$

In Stock, only 1 left!

0

0490

Murray 1733611SM

YOKE TUBE ASSEMBLY, Chute

$35.99

$

In Stock, only 1 left!

0

0510

Murray 578309MA

PIN, Clevis, 1/4 X 1-3/16

$5.49

$

In Stock, Qty 6

0

0530

Murray 1733475SM

GUARD, Chute

$21.99

$

Usually ships in 2-12 days

0

0540

Murray 1752883YP

BRACKET, Chute Guard

$15.99

$

Usually ships in 2-12 days

0

0550

Murray 1738174YP

GROMMET, Chute Guard

$4.49

$

Usually ships in 2-12 days

0

0560

Murray 1960140SM

NUT, Push, 3/16

$3.49

$

Usually ships in 2-12 days

0

0570

Murray 704130

SCREW, Hex Head, Taptite, 1/4-20 x 1/2

$3.99

$

In Stock, Qty 5

0
