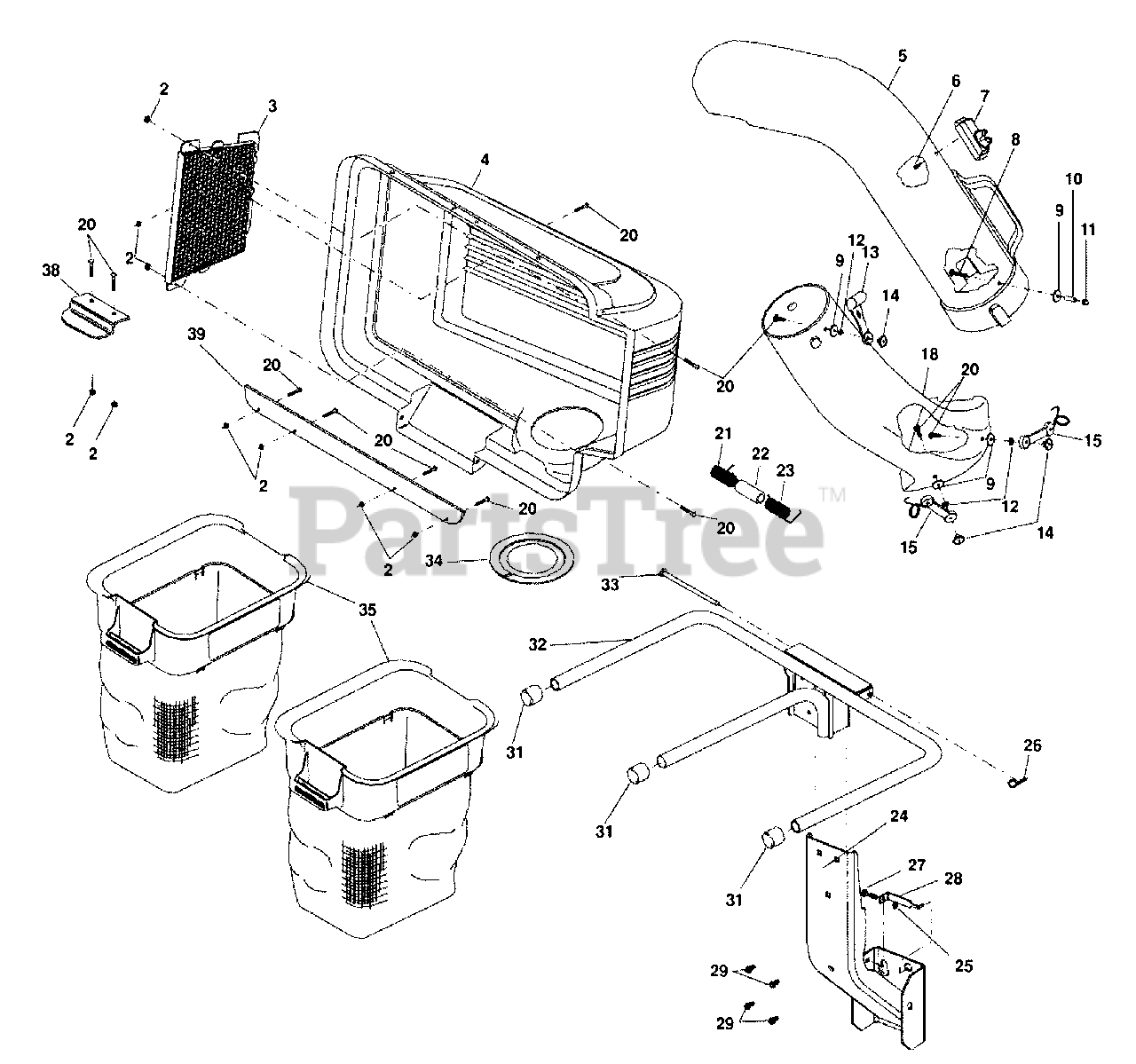

1696470-00 - Snapper 46" Twin Grass Collector 46" Twin Catcher Parts Diagram

46" Twin Grass Collector

46" Twin Catcher Parts Diagram

  • Title
2

Snapper 705693

NUT, CROWN LOCK #10-24

$7.49

$

Usually ships in 2-12 days

0

3

Snapper 705694

SCREEN, COVER

$44.99

$

Usually ships in 2-12 days

0

4

Snapper 705695

COVER ASSEMBLY

Note: (INCL. REF. NOS. 3, 38 & 39)

$343.99

$

Usually ships in 2-12 days

0

5

Snapper 705730

CHUTE, UPPER

$266.99

$

Usually ships in 2-12 days

0

6

Snapper 705697

SCREW, SPECIAL #10-14X1/2

$8.49

$

Usually ships in 2-12 days

0

7

Snapper 705698

FULL BAG INDICATOR

$8.99

$

Usually ships in 2-12 days

0

8

Snapper 705699

SCREW, #10-24 X 1-1/8

$9.99

$

Usually ships in 2-12 days

0

9

Snapper 705700

WASHER 3/16X3/4X16 GA.

$6.99

$

Usually ships in 2-12 days

0

10

Snapper 705701

SPACER, SPLIT

$4.99

$

Usually ships in 2-12 days

0

11

Snapper 705702

NUT, ACORN #10-24

$5.49

$

Usually ships in 2-12 days

0

12

Snapper 705703

WASHER, LOCK

$8.99

$

Usually ships in 2-12 days

0

13

Snapper 705704

LATCH, CHUTE

$10.99

$

Usually ships in 2-12 days

0

14

Snapper 705705

NUT, WELD

$8.99

$

Usually ships in 2-12 days

0

15

Snapper 705706

LATCH, HOOK

$17.99

$

Usually ships in 2-12 days

0

18

Snapper 705731

CHUTE, LOWER

$307.99

$

Usually ships in 2-12 days

0

20

Snapper 705708

SCREW #10-24 X 5/8

$7.49

$

Usually ships in 2-12 days

0

21

Snapper 705709

SPRING, COVER L.H., BLACK

$7.49

$

Usually ships in 2-12 days

0

22

Snapper 705710

SPACER, COVER

$8.99

$

Usually ships in 2-12 days

0

23

Snapper 705711

SPRING, COVER R.H., GRAY

$7.49

$

Usually ships in 2-12 days

0

24

Snapper 705733

SUPPORT ASSEMBLE

$100.99

$

Usually ships in 2-12 days

0

25

Snapper 705713

LOCKNUT

$5.99

$

Usually ships in 2-12 days

0

26

Snapper 705714

SPRING, RETAINER

$5.99

$

Usually ships in 2-12 days

0

27

$8.49

$

Usually ships in 2-12 days

0

28

Snapper 705716

BRACKET, LOCK

$8.49

$

Usually ships in 2-12 days

0

29

Snapper 705717

BOLT, SHOULDER 5/16-18

$8.49

$

Usually ships in 2-12 days

0

31

Snapper 705718

PLUG, TUBING END

$5.49

$

Usually ships in 2-12 days

0

32

Snapper 705734

BAGGER, FRAME

$213.99

$

Usually ships in 2-12 days

0

33

Snapper 705720

PIN, HINGE

$12.99

$

In Stock, only 1 left!

0

34

Snapper 705721

GASKET, COVER

$16.99

$

Usually ships in 2-12 days

0

35

Snapper 705722

CONTAINER

$173.99

$

In Stock, only 1 left!

0

38

Snapper 705735

LATCH HANDLE, COVER

$10.99

$

Usually ships in 2-12 days

0

39

Snapper 705736

STRIP, REINFORCEMENT

$22.99

$

Usually ships in 2-12 days

0

-----

Snapper 705737

OWNER'S MANUAL, ENGLISH/FRENCH

$6.99

$

Usually ships in 2-12 days

0

-----

Snapper 705738

OWNER'S MANUAL, SPANISH

$6.99

$

Usually ships in 2-12 days

0

-----

42" Grass Catcher Kit, 1696462-00

$

$

Not available
