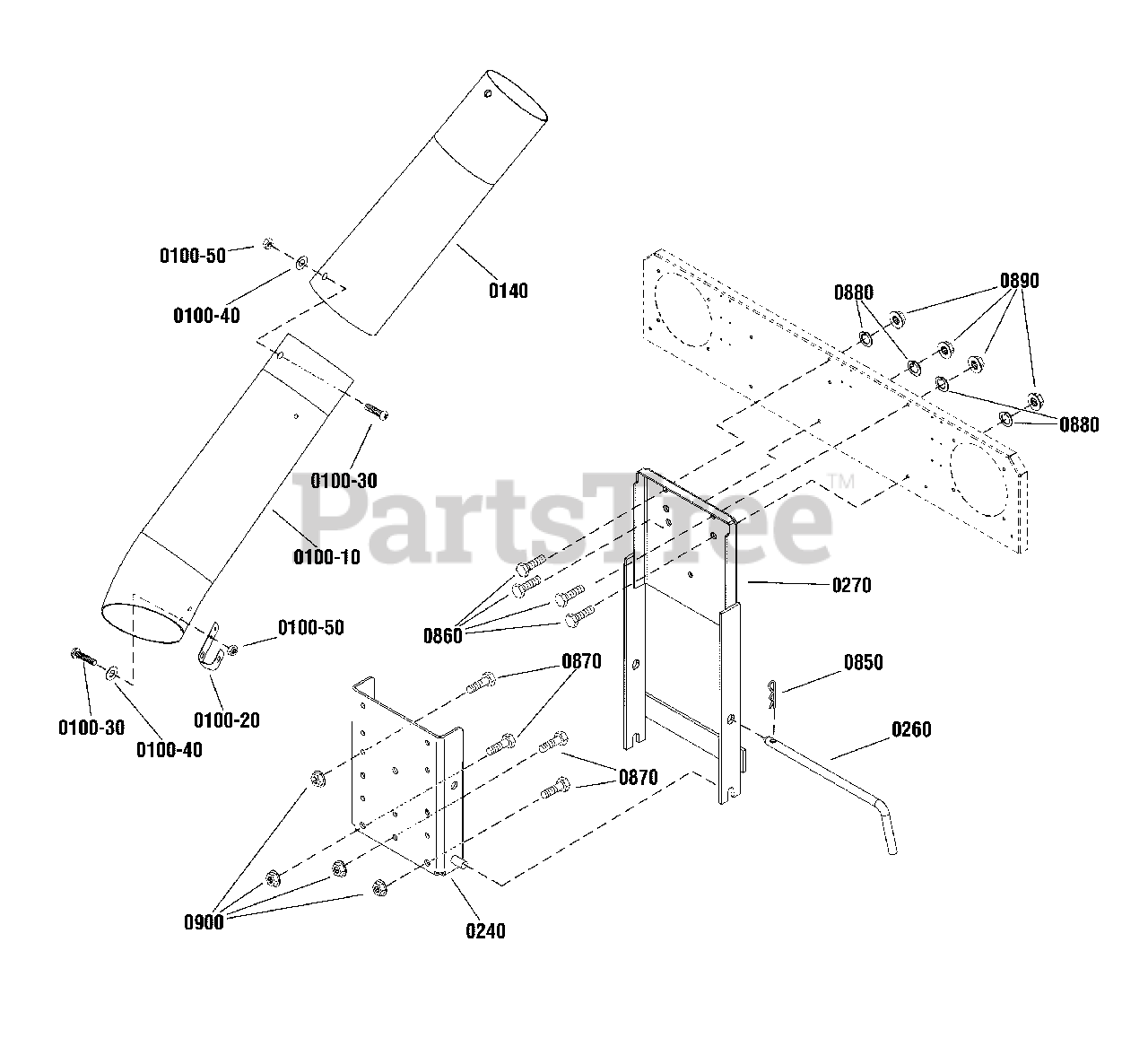

1696469 - Snapper Clean Sweep Triple Grass Catcher Tube & Hitch Group Parts Diagram

Clean Sweep Triple Grass Catcher

Tube & Hitch Group Parts Diagram

  • Title

0100-10

Snapper 5049152

CHUTE, Lower
(Superseded to 5049152SM)

$87.99

$

Usually ships in 2-12 days

0

0100-20

Snapper 1705063

CLIP, Spring
(Superseded to 1705063YP)

$

$

Not available

0100-30

Snapper 1960404

SCREW, Truss Head, Phillips 10-24 x 3/4
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0100-40

Snapper 1960096

WASHER 3/16
(Superseded to 1960096SM)

$3.99

$

Usually ships in 2-12 days

0

0100-50

Snapper 1933896

NUT, Hex, Lock 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0140

Snapper 5049151

CHUTE, Middle
(Superseded to 5049151SM)

$107.99

$

Usually ships in 2-12 days

0

0240

Snapper 1732625A

PLATE & PINS ASSEMBLY
(Superseded to 1732625ASM)

$131.99

$

Usually ships in 2-12 days

0

0260

Snapper 1717085

ROD, Support
(Superseded to 1717085SM)

$50.99

$

In Stock, only 2 left!

0

0270

Snapper 1723437A

SUPPORT ASSEMBLY
(Superseded to 1723437ASM)

$186.99

$

Usually ships in 2-12 days

0

0850

Snapper 1960033

CLIP, Hair Pin
(Superseded to 1960033SM)

$3.49

$

In Stock, Qty 20+

0

0860

Snapper 703800

BOLT, Carriage, 5/16-18 x 1

$3.99

$

In Stock, Qty 7

0

0870

Snapper 1921176

CAPSCREW, Hex Head 1/2-13 x 1.35"
(Superseded to 1921176SM)

$4.99

$

In Stock, only 1 left!

0

0880

Snapper 703116

WASHER, Lock, 5/16

$3.49

$

In Stock, Qty 20+

0

0890

Snapper 703465

NUT, Hex, 5/16-18, GR5

$4.49

$

Usually ships in 2-12 days

0

0900

Snapper 5025396

NUT, 1/2-13 HEX NYLOCK FLANGE
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0
