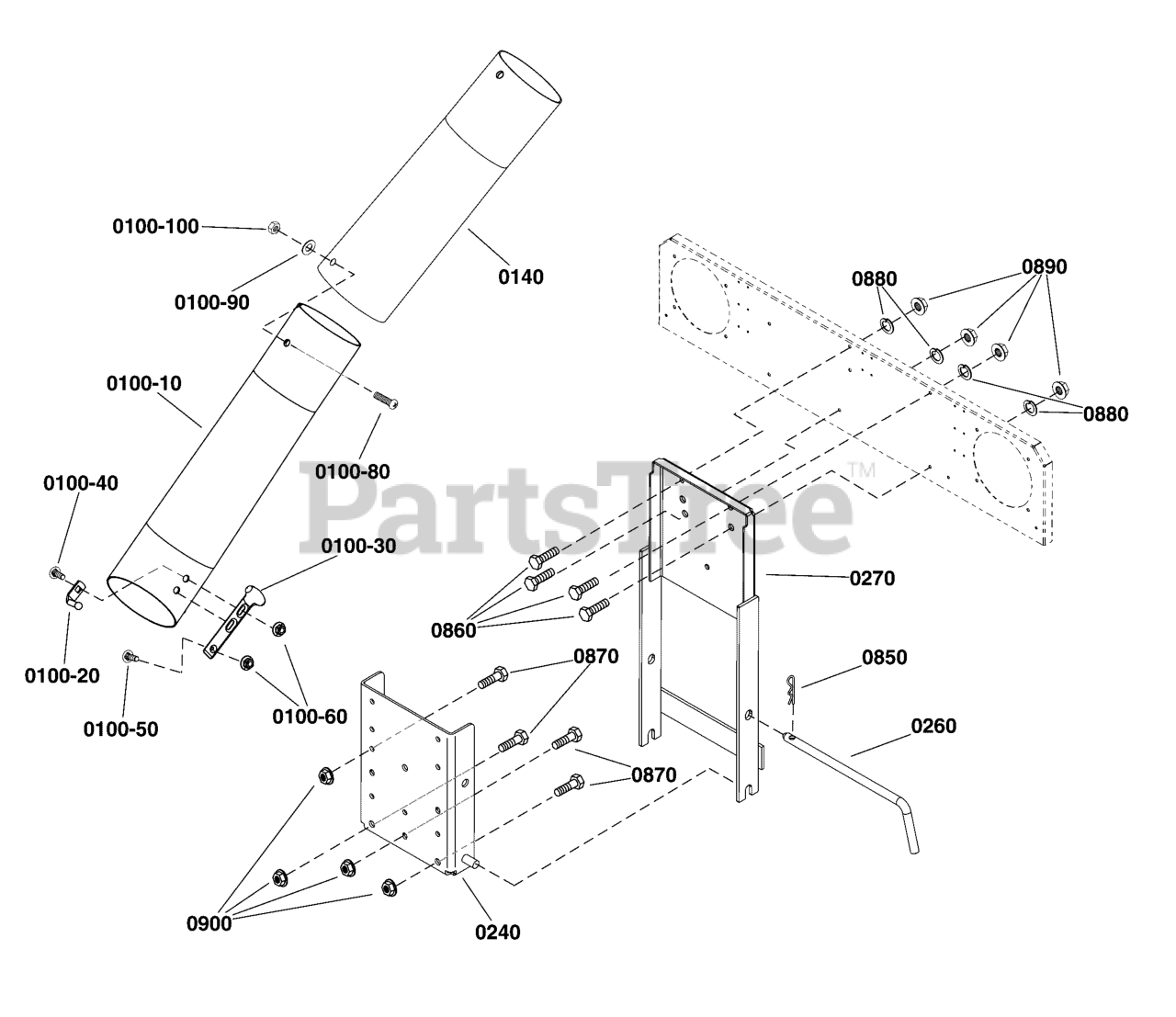

1696469 A-00 - Simplicity Clean Sweep Triple Grass Catcher Tube & Hitch Group Parts Diagram

Clean Sweep Triple Grass Catcher

Tube & Hitch Group Parts Diagram

  • Title

0100-10

Simplicity 5049152

CHUTE, Lower
(Superseded to 5049152SM)

$87.99

$

Usually ships in 2-12 days

0

0100-20

Simplicity 054563MA

PIN, Latch

$23.99

$

In Stock, only 2 left!

0

0100-30

Simplicity 2171600SM

STRAP, Hood Rubber

$7.99

$

In Stock, Qty 20+

0

0100-40

Simplicity 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

0100-50

Simplicity 703575

BOLT, 1/4-20 x 3/4

$3.99

$

In Stock, only 1 left!

0

0100-60

Simplicity 703161

NUT, 1/4-20, Hex Flange Whiz Lock

$3.49

$

In Stock, Qty 20+

0

0100-80

Simplicity 1960404

SCREW, Truss Head, Phillips 10-24 x 3/4
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0100-90

Simplicity 1960096

WASHER 3/16
(Superseded to 1960096SM)

$3.99

$

Usually ships in 2-12 days

0

0100-100

Simplicity 1933896

NUT, Hex, Lock 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

0140

Simplicity 5049151

CHUTE, Middle
(Superseded to 5049151SM)

$107.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1732625A

PLATE & PINS ASSEMBLY
(Superseded to 1732625ASM)

$131.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1717085

ROD, Support
(Superseded to 1717085SM)

$50.99

$

In Stock, only 2 left!

0

0270

Simplicity 1723437A

SUPPORT ASSEMBLY
(Superseded to 1723437ASM)

$186.99

$

Usually ships in 2-12 days

0

0850

Simplicity 1960033

CLIP, Hair Pin
(Superseded to 1960033SM)

$3.49

$

In Stock, Qty 20+

0

0860

Simplicity 703800

BOLT, Carriage, 5/16-18 x 1

$3.99

$

In Stock, Qty 12

0

0870

Simplicity 1921176

CAPSCREW, Hex Head 1/2-13 x 1.35"
(Superseded to 1921176SM)

$4.99

$

In Stock, only 1 left!

0

0880

Simplicity 703116

WASHER, Lock, 5/16

$3.49

$

In Stock, Qty 20+

0

0890

Simplicity 703465

NUT, Hex, 5/16-18, GR5

$4.49

$

Usually ships in 2-12 days

0

0900

Simplicity 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0
