1696459-00 - Simplicity 50" Mower Deck 50" (127cm) Mower Deck - Clutch & Support Group Parts Diagram

50" Mower Deck

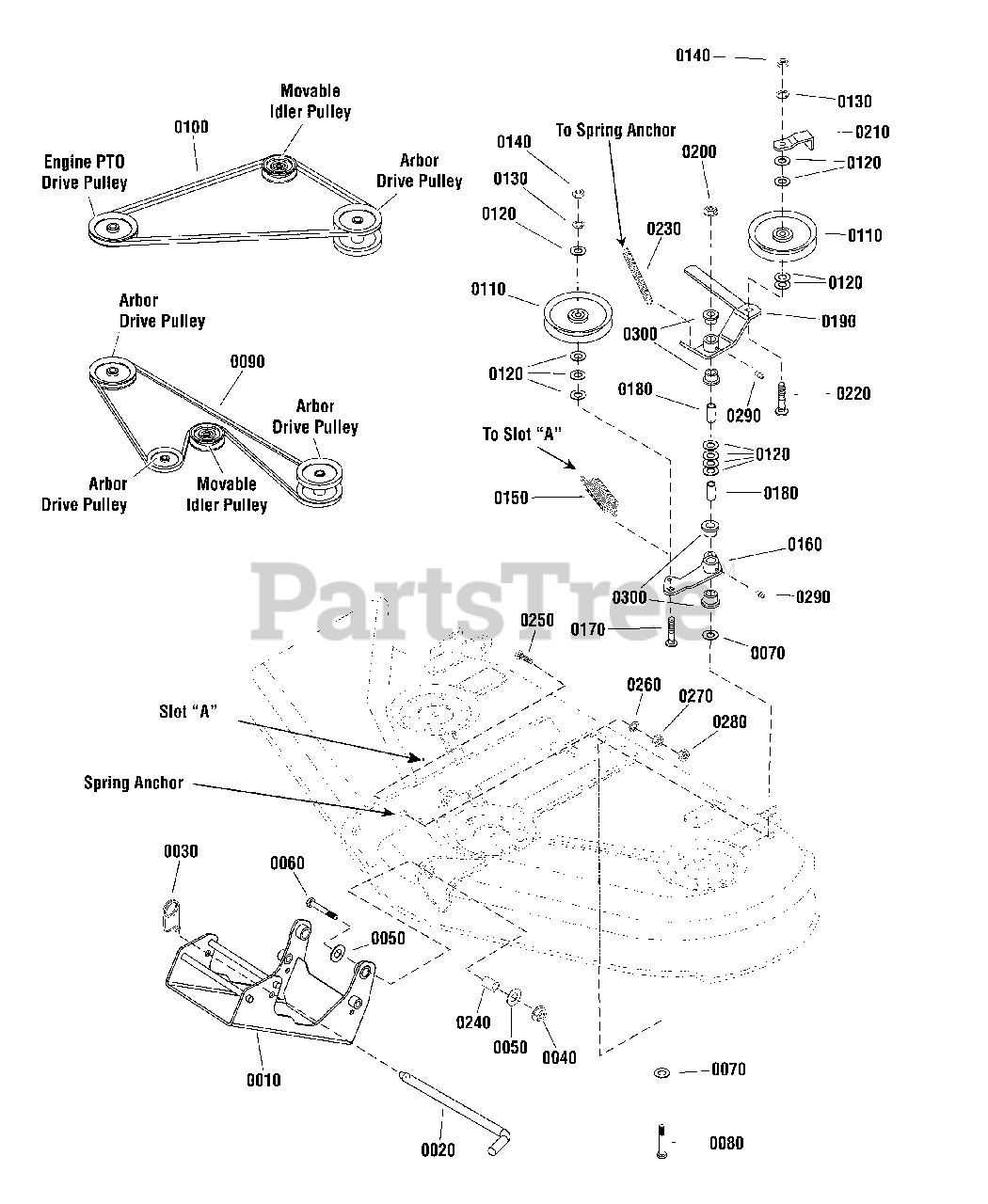

50" (127cm) Mower Deck - Clutch & Support Group Parts Diagram

  • Title

0010

Simplicity 1737064ASM

HITCH ASSEMBLY

$

$

Not available

0020

Simplicity 1731414SM

ROD, Latch

$14.99

$

Usually ships in 2-12 days

0

0030

Simplicity 2176012SM

PIN, Retainer
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

0040

Simplicity 1960687SM

NUT, Hex Flange, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0050

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

0060

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, GR5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0070

Simplicity 1924356SM

WASHER, 3/8, Black
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0080

Simplicity 1923938SM

CAPSCREW, Hex Head, 3/8-16 x 3-1/2
(Superseded to 703182)

$6.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1703836SM

V-BELT, Arbor Drive

$45.99

$

In Stock, Qty 20+

0

0100

Simplicity 1734114SM

V-BELT, Mower Drive

$49.99

$

In Stock, only 2 left!

0

0110

Simplicity 1724387SM

PULLEY, Idler

$35.99

$

In Stock, Qty 20+

0

0120

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0130

Simplicity 703454

WASHER, Lock, 3/8

$3.49

$

In Stock, Qty 17

0

0140

Simplicity 1916950SM

NUT, Hex Flange, 3/8-16, MAC Lock Large, Black
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

0150

Simplicity 1656936SM

SPRING

$9.99

$

In Stock, Qty 20+

0

0160

Simplicity 1718561SM

LEVER ASSEMBLY, Idler Arm W/ Fitting

$50.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 4 left!

0

0180

Simplicity 1674669SM

SPACER, 25/64 x 5/8 x 1-1/8

$11.99

$

In Stock, Qty 20+

0

0190

Simplicity 1704658SM

LEVER ASSEMBLY, Idler w/Fitting

$48.99

$

In Stock, only 1 left!

0

0200

Simplicity 1960339SM

NUT, Hex Flange, 3/8-16

$

$

Not available

0210

Simplicity 1677135ASM

BELT STOP, Idler

$12.99

$

In Stock, Qty 8

0

0220

Simplicity 1960315SM

CARRIAGE BOLT, 3/8-16 x 2

$6.49

$

In Stock, only 1 left!

0

0230

Simplicity 1715435SM

SPRING, Extension

$9.49

$

In Stock, Qty 20+

0

0240

Simplicity 1737061SM

SPACER

$12.99

$

Usually ships in 2-12 days

0

0250

Simplicity 703570

CAPSCREW, Hex Head, 5/16-18 X 1 1/4

$4.99

$

In Stock, Qty 7

0

0260

Simplicity 703116

LOCKWASHR, Split, 5/16

$3.49

$

In Stock, Qty 20+

0

0270

Simplicity 703465

NUT, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

0280

Simplicity 703164

NUT, Hex Lock, 5/16-18

$3.49

$

In Stock, Qty 19

0

0290

Simplicity 2812808SM

GREASE FITTING

$4.49

$

In Stock, Qty 20+

0

0300

Simplicity 1676148SM

BUSHING, 5/8 x 3/4

$5.99

$

In Stock, Qty 20+

0
