1696458-00 - Simplicity 44" Mower Deck 44" (112cm) Mower Deck - Electric Height Adjustment & Roller Bar Group Parts Diagram

44" Mower Deck

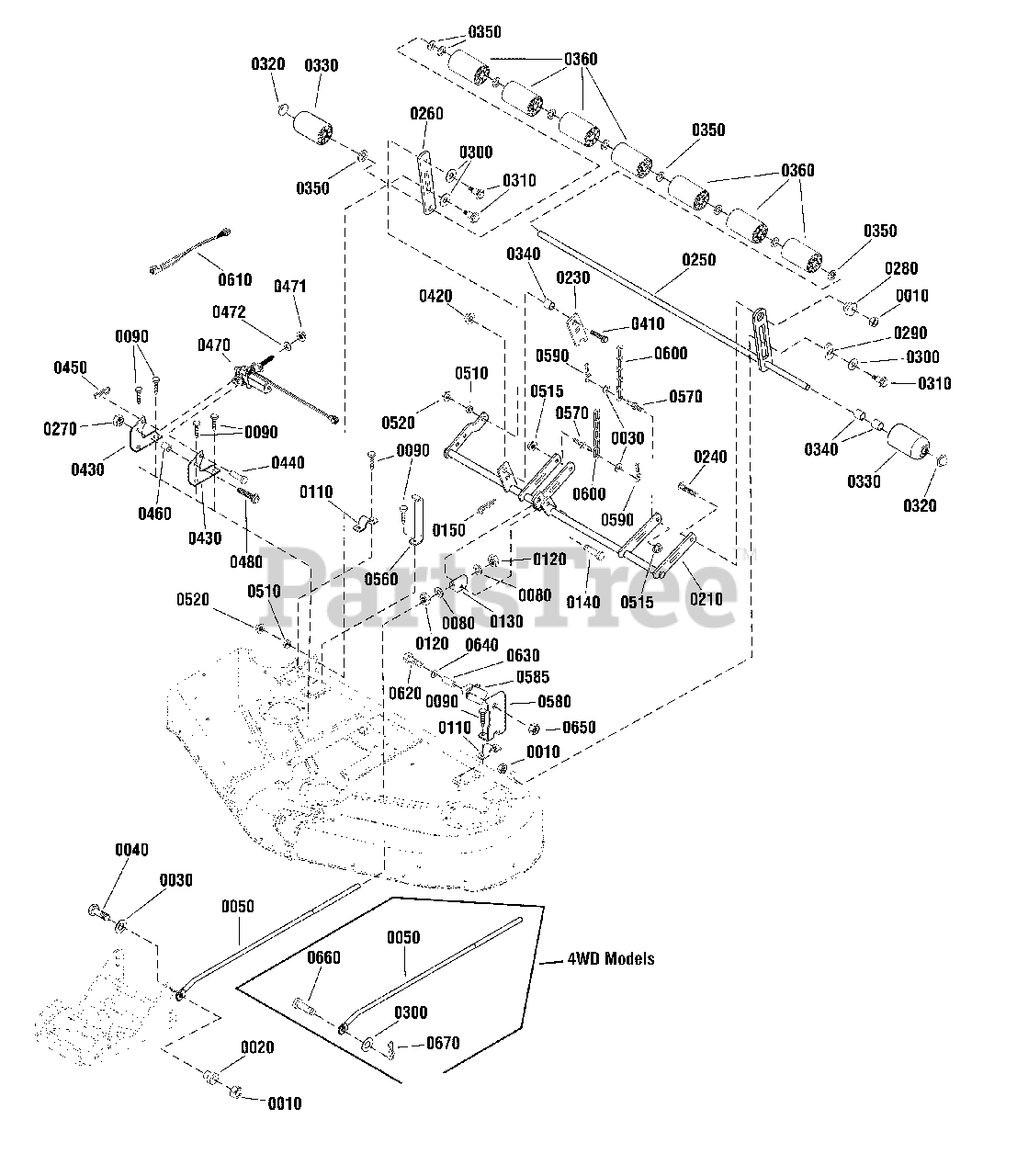

44" (112cm) Mower Deck - Electric Height Adjustment & Roller Bar Group Parts Diagram

  • Title

0010

Simplicity 2860681SM

LOCKNUT, Security 3/8-16

Note: (Qty of 2 used on 4wd Drive)

$4.49

$

In Stock, Qty 7

0

0020

Simplicity 1706644SM

SPACER

$8.49

$

In Stock, only 3 left!

0

0030

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

Note: (Qty of 2 used on 4wd Drive)

$3.99

$

In Stock, Qty 20+

0

0040

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 13

0

0050

Simplicity 1704093SM

ROD, Adjustment

$47.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0090

Simplicity 1664847CAYP

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0110

Simplicity 1665374BMYP

STRAP, Rocker Shaft

$

$

Not available

0120

Simplicity 1913744SM

NUT, Hex Jam 1/2-13

$4.99

$

In Stock, Qty 19

0

0130

Simplicity 1704081ASM

TRUNNION, Rod

$7.99

$

Usually ships in 2-12 days

0

0140

Simplicity 2118053SM

PIN, Round Head Drilled 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

0150

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0210

Simplicity 1733521ASM

SHAFT ASSEMBLY, Rocker 44"

$222.99

$

In Stock, only 1 left!

0

0230

Simplicity 1733386ASM

ARM, Rear
(Superseded to 1733776AYP)

$14.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1931352SM

BOLT, Carriage, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 4 left!

0

0250

Simplicity 1716159ASM

SHAFT & BAR ASSEMBLY, Roller 44"
(Superseded to 1685443SM)

$137.99

$

In Stock, only 1 left!

0

0260

Simplicity 1704074ASM

BAR, Roller 5/16

$17.99

$

In Stock, only 1 left!

0

0270

Simplicity 1927557SM

NUT, Hex Flange 5/16-18 Whiz Lock

$4.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 15

0

0290

Simplicity 1677507SM

SLIDE

$6.99

$

In Stock, only 3 left!

0

0300

Simplicity 1924361SM

WASHER, 1/2 x 1-1/4 OD
(Superseded to 703451)

Note: (Qty of 4 used on 4wd Drive)

$4.49

$

In Stock, Qty 20+

0

0310

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

0320

Simplicity 1960520SM

NUT, Push 5/8
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

0330

Simplicity 1722036SM

ROLLER, Rounded

$7.99

$

In Stock, Qty 20+

0

0340

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

0350

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

0360

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

0410

Simplicity 1960706SM

BOLT, Carriage, 1/2-13 x 2

$5.99

$

Usually ships in 2-12 days

0

0420

Simplicity 1960689SM

NUT, Hex Toplock Flange 1/2-13

$3.49

$

Usually ships in 2-12 days

0

0430

Simplicity 1733828ASM

BRACKET, Mounting

$21.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1739295YP

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0450

Simplicity 1960221SM

CLIP, Hairpin
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

0460

Simplicity 1733068SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1753528YP

MOTOR, Deck Lift
(Superseded to 1761788YP)

$107.99

$

In Stock, Qty 15

0

0471

Simplicity 1960757SM

NUT, Hex, 1/4-20

$5.49

$

Usually ships in 2-12 days

0

0472

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0480

Simplicity 1922127SM

CAPSCREW, Hex Head 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0510

Simplicity 1663752SM

SPACER

$5.99

$

In Stock, only 2 left!

0

0515

Simplicity 1960687SM

NUT, Hex Flange, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0520

Simplicity 1960339SM

NUT, Mac Lock, 3/8-16

$

$

Not available

0560

Simplicity 1733226ASM

UPSTOP

$20.99

$

Usually ships in 2-12 days

0

0570

Simplicity 703816

PIN, Theaded Shoulder

$12.99

$

Usually ships in 2-12 days

0

0580

Simplicity 1756064AYP

BRACKET, Height of Cut

$22.99

$

Usually ships in 2-12 days

0

0585

Simplicity 1750618YP

SENSOR, Height of Cut

$54.99

$

In Stock, only 1 left!

0

0590

Simplicity 1722320SM

PIN, Cotter

$3.49

$

In Stock, Qty 20+

0

0600

Simplicity 1708088ASM

CHAIN, 4 Link

$11.99

$

Usually ships in 2-12 days

0

0610

Simplicity 1756116YP

HARNESS, Mower

$20.99

$

Usually ships in 2-12 days

0

0620

Simplicity 1921963SM

CAPSCREW, Hex Head 1/4-20 X 2

$4.49

$

Usually ships in 2-12 days

0

0630

Simplicity 5101215YP

SPACER

$8.49

$

Usually ships in 2-12 days

0

0640

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

0650

Simplicity 703463

NUT, Nylock Flange, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0660

Simplicity 5025479SM

PIN, Clevis, 1/2

Note: (4wd Drive)

$

$

Not available

0670

Simplicity 1722320SM

PIN, Cotter Locking

Note: (4wd Drive)

$3.49

$

In Stock, Qty 20+

0
