1696450A-01 - Snapper Turbo Collection System for 44" & 50" Mower Deck Turbo Mounting Group - Aluminum Arbors Parts Diagram

Turbo Collection System for 44" & 50" Mower Deck

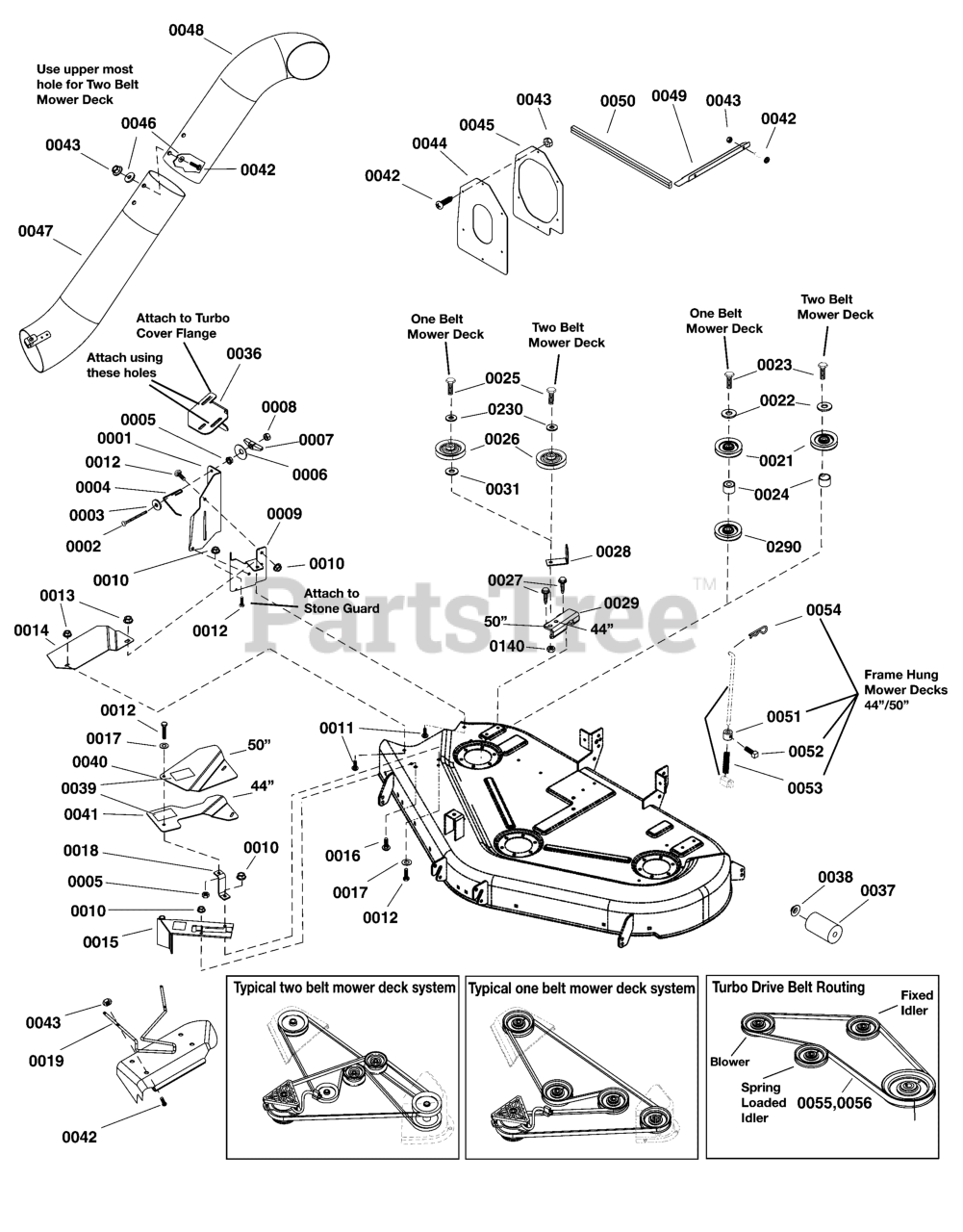

Turbo Mounting Group - Aluminum Arbors Parts Diagram

  • Title

0001

Snapper 1732619ASM

BAFFLE, Turbo

$27.99

$

Usually ships in 2-12 days

0

0002

Snapper 1960318SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2 G5 Flat Black

$4.99

$

Usually ships in 2-12 days

0

0003

Snapper 703298

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

0004

Snapper 1705064SM

SPRING, Latch, .125WIRE 4.3LG Black

$44.99

$

Usually ships in 2-12 days

0

0005

Snapper 1960636SM

NUT, Hex, 5/16-18

$4.99

$

In Stock, only 1 left!

0

0006

Snapper 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

In Stock, only 2 left!

0

0007

Snapper 703065

KNOB, Wing, 5/16-18

$6.99

$

In Stock, Qty 20+

0

0008

Snapper 703902

NUT, Hex Nylock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0009

Snapper 1732592ASM

BRACKET, Baffle

$45.99

$

Usually ships in 2-12 days

0

0010

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0011

Snapper 703576

BOLT, Carriage, 1/4-20 x 3/4, G5
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

0012

Snapper 703408

SCREW, Hex Head Cap, 5/16-18 X 7/8, GR5

$4.99

$

In Stock, Qty 13

0

0013

Snapper 703061

NUT, 1/4-20, Keps, Conical Washer

$3.49

$

In Stock, Qty 11

0

0014

Snapper 1732591ASM

COVER, Mower

$40.99

$

Usually ships in 2-12 days

0

0015

Snapper 1722546ASM

PIVOT & BRACKETS ASSEMBLY, 38, 44 & 50"

$216.99

$

Usually ships in 2-12 days

0

0016

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0017

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

0018

Snapper 1718304ASM

SUPPORT, Belt Cover 10GA 1.0WD 3.0LG

$14.99

$

Usually ships in 2-12 days

0

0019

Snapper 1718295SM

ROD
(Superseded to 1718295ASM)

$112.99

$

Usually ships in 2-12 days

0

0021

Snapper 1713090SM

PULLEY, 3 3/4

$24.99

$

Usually ships in 2-12 days

0

0022

Snapper 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0023

Snapper 1927531SM

CAPSCREW, Hex Head, 7/16-14 x 2, G8, Black

$5.49

$

In Stock, Qty 5

0

0024

Snapper 706363

SPACER, Pulley

$16.99

$

Usually ships in 2-12 days

0

0025

Snapper 703589

CAPSCREW, Hex Head, 3/8-16 X 2, GR5

$4.49

$

In Stock, only 1 left!

0

0026

Snapper 1721134SM

PULLEY, 3" OD

$30.99

$

In Stock, Qty 20+

0

0027

Snapper 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0028

Snapper 1724373ASM

BRACKET, L 12GA 1.24WD 2.24LG 2.28LG

$17.99

$

Usually ships in 2-12 days

0

0029

Snapper 1756261AYP

BRACKET, Idler Pulley

$128.99

$

Usually ships in 2-12 days

0

0031

Snapper 704128

WASHER, Flat

$4.99

$

In Stock, Qty 9

0

0036

Snapper 1733077ASM

LATCH - 38" Turbo

$56.99

$

Usually ships in 2-12 days

0

0037

Snapper 1713540SM

ROLLER, 2 1/2 OD

$43.99

$

Usually ships in 2-12 days

0

0038

Snapper 771009

PUSHNUT, 5/8

$3.99

$

In Stock, Qty 20+

0

0039

Snapper 5103184YP

DECAL, Warning

$13.99

$

Usually ships in 2-12 days

0

0040

Snapper 1724376ASM

COVER, Belt, 50"

$21.99

$

Usually ships in 2-12 days

0

0041

Snapper 1724374ASM

COVER, Belt, 44"

$22.99

$

Usually ships in 2-12 days

0

0042

Snapper 1960404SM

SCREW, Truss Head, Phillips, #10-24 x 3/4,

$3.99

$

In Stock, only 4 left!

0

0043

Snapper 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, only 2 left!

0

0044

Snapper 1733741SM

SEAL, Cover
(Superseded to 1733741YP)

$29.99

$

Usually ships in 2-12 days

0

0045

Snapper 1732735ASM

FLANGE, Seal

$40.99

$

Usually ships in 2-12 days

0

0046

Snapper 1910531SM

WASHER, Rivet, 3/16

$3.99

$

Usually ships in 2-12 days

0

0047

Snapper 1719719SM

ASSEMBLY, Tube & Clip, Lower

$170.99

$

Usually ships in 2-12 days

0

0048

Snapper 1732800SM

ELBOW, Vacuum

$74.99

$

Usually ships in 2-12 days

0

0049

Snapper 1733580ASM

PLATE, Deflector

$36.99

$

Usually ships in 2-12 days

0

0050

Snapper 1733579SM

EDGING, 21-1/2"
(Superseded to 1721175SM)

$39.99

$

Usually ships in 2-12 days

0

0051

Snapper 1719777SM

COLLAR, Set

$14.99

$

Usually ships in 2-12 days

0

0052

Snapper 1928721SM

SETSCREW, Square Head, 5/16-18 x 1/2, G8

$4.99

$

In Stock, only 2 left!

0

0053

Snapper 1729277SM

SPRING, Composite, 3-5/8

$6.99

$

In Stock, only 1 left!

0

0054

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0055

Snapper 84004741

V-BELT, Cog, 37.90

Note: (Use on 44" Mowers)

$39.99

$

In Stock, only 1 left!

0

0056

Snapper 84004742

V-BELT, Cog, 39.62

Note: (Use on 50" Mowers)

$40.99

$

Usually ships in 2-12 days

0

0140

Snapper 703347

NUT, 3/8-16, Hex Center-Lock, GR B, Zinc/Clear

$4.99

$

In Stock, only 2 left!

0

0230

Snapper 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0290

Snapper 1755470YP

PULLEY, Deep Groove, 4 1/4

$13.99

$

In Stock, only 1 left!
