1696450-01 - Snapper Turbo Collection System for 44" & 50" Mower Deck Turbo Blower Assembly Parts Diagram

Turbo Collection System for 44" & 50" Mower Deck

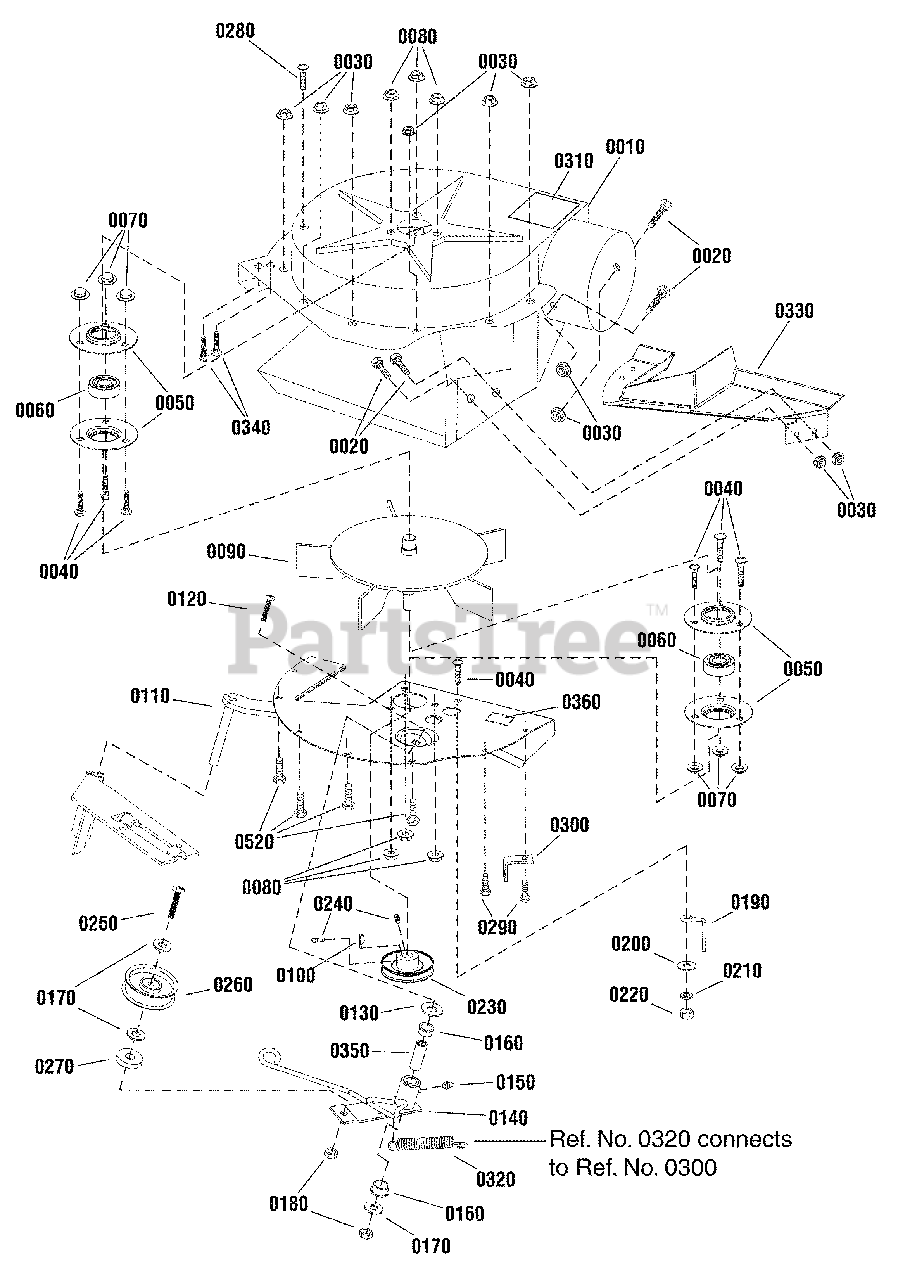

Turbo Blower Assembly Parts Diagram

  • Title

0010

Snapper 1724441

HOUSING FAN ASSEMBLY
(Superseded to 1724441SM)

$240.99

$

Usually ships in 2-12 days

0

0020

Snapper 1931317

BOLT, Carriage, 1/4 - 20 x 3/4

$3.99

$

In Stock, only 4 left!

0

0030

Snapper 1930641

NUT, Hex Flange Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0040

Snapper 1931333

BOLT, Carriage, 5/16 -18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0050

Snapper 1665982A

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 20+

0

0060

Snapper 2108202

BEARING
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

0070

Snapper 1933988

PUSH NUT, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

0080

Snapper 1927557

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0

0090

Snapper 1706631A

FAN ASSEMBLY, 5 Blades
(Superseded to 1706631ASM)

$384.99

$

Usually ships in 2-12 days

0

0100

Snapper 2860403

KEY, Woodruff
(Superseded to 2860403SM)

$10.99

$

In Stock, only 1 left!

0

0110

Snapper 1706465A

PLATE ASSEMBLY
(Superseded to 1706465ASM)

$370.99

$

In Stock, only 1 left!

0

0120

Snapper 1931355

BOLT, Carriage, 3/8 -16
(Superseded to 1931355SM)

$5.99

$

In Stock, Qty 11

0

0130

Snapper 1924361

WASHER, Flat
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

0140

Snapper 1706284A

LEVER ASSEMBLY, Turbo
(Superseded to 1706284AYP)

$80.99

$

In Stock, Qty 10

0

0150

Snapper 2821133

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0160

Snapper 1676148

BUSHING
(Superseded to 1676148SM)

$5.99

$

In Stock, Qty 20+

0

0170

Snapper 1924940

WASHER, Flat, 3/8 x 7/8 OD
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0180

Snapper 1960251

NUT, Hex Center Lock Jam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 12

0

0190

Snapper 1678435

BELT, Stop
(Superseded to 1678435SM)

$4.49

$

Usually ships in 2-12 days

0

0200

Snapper 1924874

WASHER, Flat, 5/16 x 7/8 OD
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

0210

Snapper 1917356

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0220

Snapper 1917372

NUT, Hex, 5/16 - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0230

Snapper 1736092

PULLEY ASSEMBLY IDLER
(Superseded to 1736092SM)

$43.99

$

Usually ships in 2-12 days

0

0240

Snapper 1960619

SETSCREW, Torx
(Superseded to 1960619SM)

$3.49

$

In Stock, Qty 10

0

0250

Snapper 1920415

CAPSCREW, Hex Head, 3/8 - 16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

0260

Snapper 2154534

PULLEY ASSEMBLY, Idler
(Superseded to 2154534SM)

$32.99

$

In Stock, only 2 left!

0

0270

Snapper 1933263

WASHER, Flat, 7/16 x 1-1/4 OD
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

0280

Snapper 1925003

SCREW, Washer Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

0290

Snapper 1924009

CAPSCREW, Hex Head, 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

0300

Snapper 1668500

ANCHOR, Spring
(Superseded to 1668500SM)

$19.99

$

In Stock, only 1 left!

0

0310

Snapper 1700259

DECAL, Danger
(Superseded to 1700259SM)

Note: (Included with Ref. No. 1)

$27.99

$

Usually ships in 2-12 days

0

0320

Snapper 1716853

SPRING, Tension
(Superseded to 1716853SM)

$12.99

$

In Stock, only 4 left!

0

0330

Snapper 1705267

PLATE, Cover
(Superseded to 1705267SM)

$32.99

$

In Stock, only 4 left!

0

0340

Snapper 1960728

SCREW, Hex Washer Head, 1/4 x 3/4
(Superseded to 1960728SM)

$3.99

$

In Stock, only 4 left!

0

0350

Snapper 1676833

SPACER
(Superseded to 1676833SM)

$27.99

$

Usually ships in 2-12 days

0

0360

* DECAL, Patent

$

$

Not available

0520

Snapper 1921959

CAPSCREW, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0
