1696450-01 - Simplicity Turbo Collection System for 44" & 50" Mower Deck Turbo Mounting Kit Parts Diagram

Turbo Collection System for 44" & 50" Mower Deck

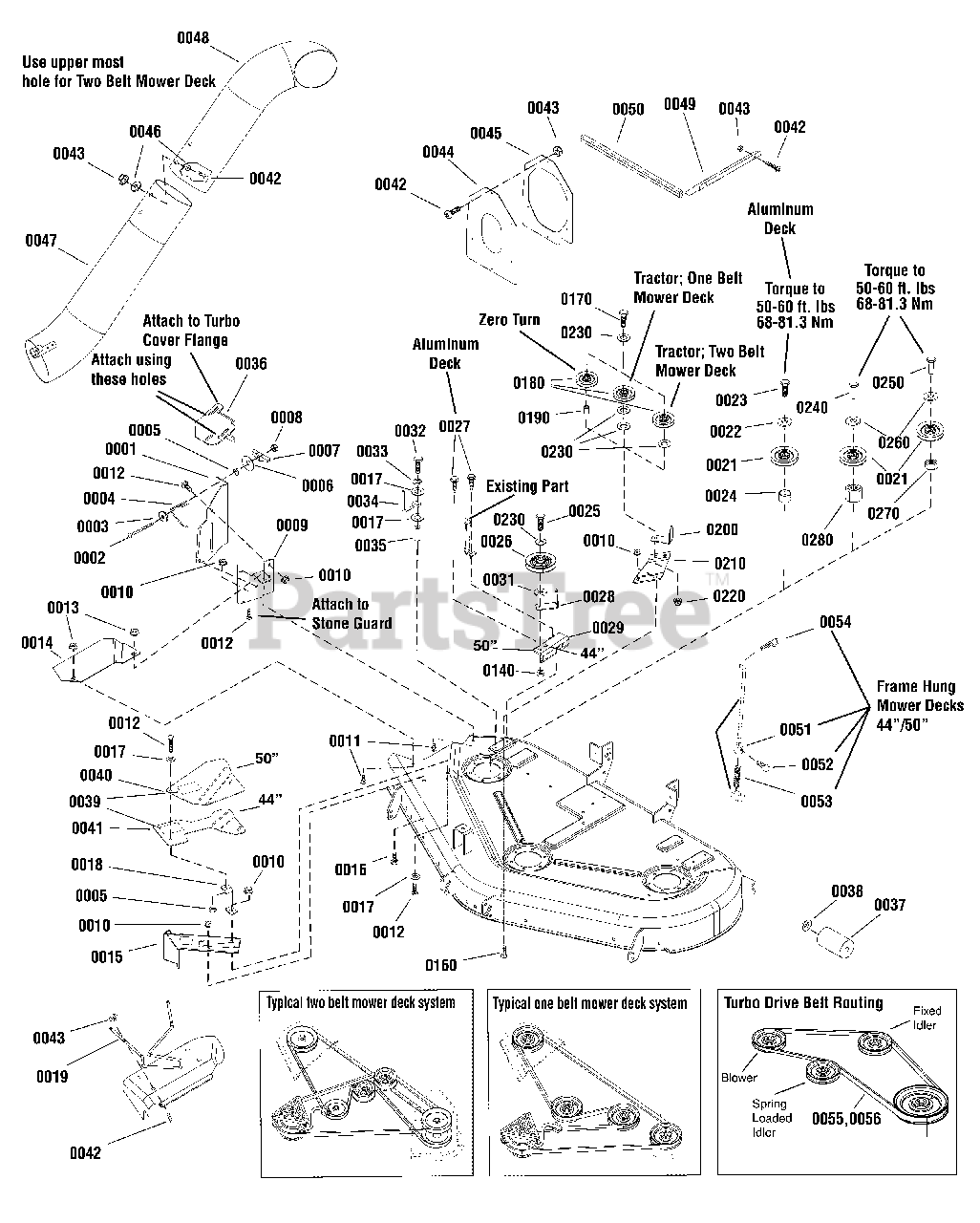

Turbo Mounting Kit Parts Diagram

  • Title

0001

Simplicity 1732619ASM

BAFFLE, Turbo

$27.99

$

Usually ships in 2-12 days

0

0002

Simplicity 1960318SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2 G5 Flat Black

$4.99

$

Usually ships in 2-12 days

0

0003

Simplicity 703298

WASHER, 5/16 (.34 ID X 1 OD X .13 THK) GR5, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0004

Simplicity 1705064SM

SPRING, Latch, .125WIRE 4.3LG Black

$44.99

$

Usually ships in 2-12 days

0

0005

Simplicity 1960636SM

NUT, Hex, 5/16-18

$4.99

$

In Stock, only 1 left!

0

0006

Simplicity 1709256SM

WASHER, Spring, 5/16 ID x 1-1/4 OD

$5.99

$

In Stock, only 1 left!

0

0007

Simplicity 671294MA

WINGNUT, .5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

0008

Simplicity 1501883701MA

NUT, Hex Nylock, 5/16-18
(Superseded to 1501884E701MA)

$120.99

$

Usually ships in 2-12 days

0

0009

Simplicity 1732592ASM

BRACKET, Baffle

$45.99

$

Usually ships in 2-12 days

0

0010

Simplicity 1931277SM

NUT, Hex Flange Whiz Lock Small, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0011

Simplicity 703576

BOLT, Carriage, 1/4-20 x 3/4, G5
(Superseded to 703101)

$3.99

$

In Stock, only 4 left!

0

0012

Simplicity 1923325SM

CAPSCREW, Hex Head, 5/16-18 x 7/8, G5
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

0013

Simplicity 1960685SM

NUT, Hex, KEPS, Conical, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 12

0

0014

Simplicity 1732591ASM

COVER, Mower

$40.99

$

Usually ships in 2-12 days

0

0015

Simplicity 1722546ASM

PIVOT & BRACKETS ASSEMBLY, 38, 44 & 50"

$216.99

$

Usually ships in 2-12 days

0

0016

Simplicity 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0017

Simplicity 1919326SM

WASHER, 5/16, .34 ID x 3/4 OD x .06 THK

$4.49

$

In Stock, Qty 9

0

0018

Simplicity 1718304ASM

SUPPORT, Belt Cover 10GA 1.0WD 3.0LG

$14.99

$

Usually ships in 2-12 days

0

0019

Simplicity 1718295SM

ROD
(Superseded to 1718295ASM)

$112.99

$

Usually ships in 2-12 days

0

0021

Simplicity 1709941SM

PULLEY, 4-5/16" OD

$28.99

$

Usually ships in 2-12 days

0

0022

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0023

Simplicity 1927531SM

CAPSCREW, hex Head, 7/16-14 x 2, G8, Black

$5.49

$

In Stock, Qty 5

0

0024

Simplicity 706362

SPACER, Pulley

$9.99

$

Usually ships in 2-12 days

0

0025

Simplicity 703589

CAPSCREW, Hex Head, 3/8-16 X 2, GR5

$4.49

$

Usually ships in 2-12 days

0

0026

Simplicity 1721134SM

PULLEY, 3" OD

$30.99

$

In Stock, Qty 20+

0

0027

Simplicity 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0028

Simplicity 1724373ASM

BRACKET, L 12GA 1.24WD 2.24LG 2.28LG

$17.99

$

Usually ships in 2-12 days

0

0029

Simplicity 1756261AYP

BRACKET, Idler Pulley

$128.99

$

Usually ships in 2-12 days

0

0031

Simplicity 704128

WASHER, Flat

$4.99

$

In Stock, Qty 11

0

0032

Simplicity 703906

CAPSCREW, Hex Head, 5/16-18 x 1-1/2, GR5

$4.99

$

In Stock, only 4 left!

0

0033

Simplicity 703116

WASHER, Split Lock, .32 x .58 x .08

$3.49

$

In Stock, Qty 20+

0

0034

Simplicity 2172845SM

STOP, Belt, .188WIRE 1.750,2.250 Black

$11.99

$

Usually ships in 2-12 days

0

0035

Simplicity 1710703SM

SPACER, 3/8 ID x 1/2 OD x 5/8"

$6.49

$

In Stock, Qty 20+

0

0036

Simplicity 1733077ASM

LATCH - 38" Turbo

$56.99

$

Usually ships in 2-12 days

0

0037

Simplicity 1713540SM

ROLLER, 2 1/2 OD

$43.99

$

Usually ships in 2-12 days

0

0038

Simplicity 1960520SM

NUT, Push For .625 DIA Stud Capped, Blk
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

0039

Simplicity 1717291SM

DECAL, WARNING Sheild & Mower Deflector

$13.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1724376ASM

COVER, Belt, 50"

$21.99

$

Usually ships in 2-12 days

0

0041

Simplicity 1724374ASM

COVER, Belt, 44"

$22.99

$

Usually ships in 2-12 days

0

0042

Simplicity 1960404SM

SCREW, Truss Head, Phillips, #10-24 x 3/4,

$3.99

$

In Stock, only 4 left!

0

0043

Simplicity MT15X146MA

NUT, Nylock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

0044

Simplicity 1733741SM

SEAL, Cover
(Superseded to 1733741YP)

$29.99

$

Usually ships in 2-12 days

0

0045

Simplicity 1732735ASM

FLANGE, Seal 44"

$40.99

$

Usually ships in 2-12 days

0

0046

Simplicity 1910531SM

WASHER, Rivet, 3/16

$3.99

$

Usually ships in 2-12 days

0

0047

Simplicity 1719719SM

ASSEMBLY, Tube & Clip, Lower

$170.99

$

Usually ships in 2-12 days

0

0048

Simplicity 1732800SM

ELBOW, Vacuum

$74.99

$

Usually ships in 2-12 days

0

0049

Simplicity 1733580ASM

PLATE, Deflector

$36.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1733579SM

EDGING, 21-1/2"
(Superseded to 1721175SM)

$39.99

$

Usually ships in 2-12 days

0

0051

Simplicity 1719777SM

COLLAR, Set

$14.99

$

Usually ships in 2-12 days

0

0052

Simplicity 1928721SM

SETSCREW, Square Head, 5/16-18 x 1/2, G8

$4.99

$

In Stock, Qty 5

0

0053

Simplicity 1729277SM

SPRING, Composite, 3-5/8

$6.99

$

In Stock, only 1 left!

0

0054

Simplicity 403162MA

PIN, Hair, 3/32 X 1.6

$

$

Not available

0055

Simplicity 1687416YP

KIT, Belt & Pulley, 44" Mower Decks

$189.99

$

Usually ships in 2-12 days

0

0055

Simplicity 1736553YP

V-BELT, Cog, 37.90

$40.99

$

In Stock, only 2 left!

0

0056

Simplicity 1687417YP

KIT, Belt & Pulley, 50" Mower Decks

$195.99

$

Usually ships in 2-12 days

0

0056

Simplicity 1736554YP

V-BELT, Cog, 39.62

$40.99

$

In Stock, only 1 left!

0

0140

Simplicity 703347

NUT, 3/8-16, Hex Center-Lock, GR B, Zinc/Clear

$4.99

$

In Stock, only 4 left!

0

0160

Simplicity 703408

SCREW, Hex Head Cap, 5/16-18 X 7/8, GR5

$4.99

$

In Stock, Qty 14

0

0170

Simplicity 703589

CAPSCREW, Hex Head, 3/8-16 X 2, GR5

$4.49

$

Usually ships in 2-12 days

0

0180

Simplicity 1721134SM

PULLEY, 3" OD

$30.99

$

In Stock, Qty 20+

0

0190

Simplicity 2108717SM

SPACER, 0.390ID x 0.625OD x .265LG

$17.99

$

In Stock, only 1 left!

0

0200

Simplicity 1724373SM

L BRACKET

$

$

Not available

0210

Simplicity 1704768SM

Z BRACKET

$

$

Not available

0220

Simplicity 703333

NUT, 3/8-16, Flanged Lock, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 20+

0

0230

Simplicity 703878

WASHER, Flat, 13/32

$3.99

$

In Stock, Qty 20+

0

0240

Simplicity 1713523SM

NUT, Sleeve, 9/16-18 x 3/4INT x 1.34LG Black

$41.99

$

In Stock, only 1 left!

0

0250

Simplicity 1733078SM

NUT, Sleeve, 9/16-18 x 1.21"

$27.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1603592SM

WASHER, Bellville, 0.88ID x 1.75OD x .08TH Black

$11.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1713623SM

HUB, .79 ID 1.50 OD .7 3 LG

$9.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1713634SM

HUB, Double, 1-9/32 Tall, ZT Series

$16.99

$

Usually ships in 2-12 days

0
