1696447-00 - Snapper Turbo Collection System for 48" FAB Mower Deck Turbo Mounting Group (2991436) Parts Diagram

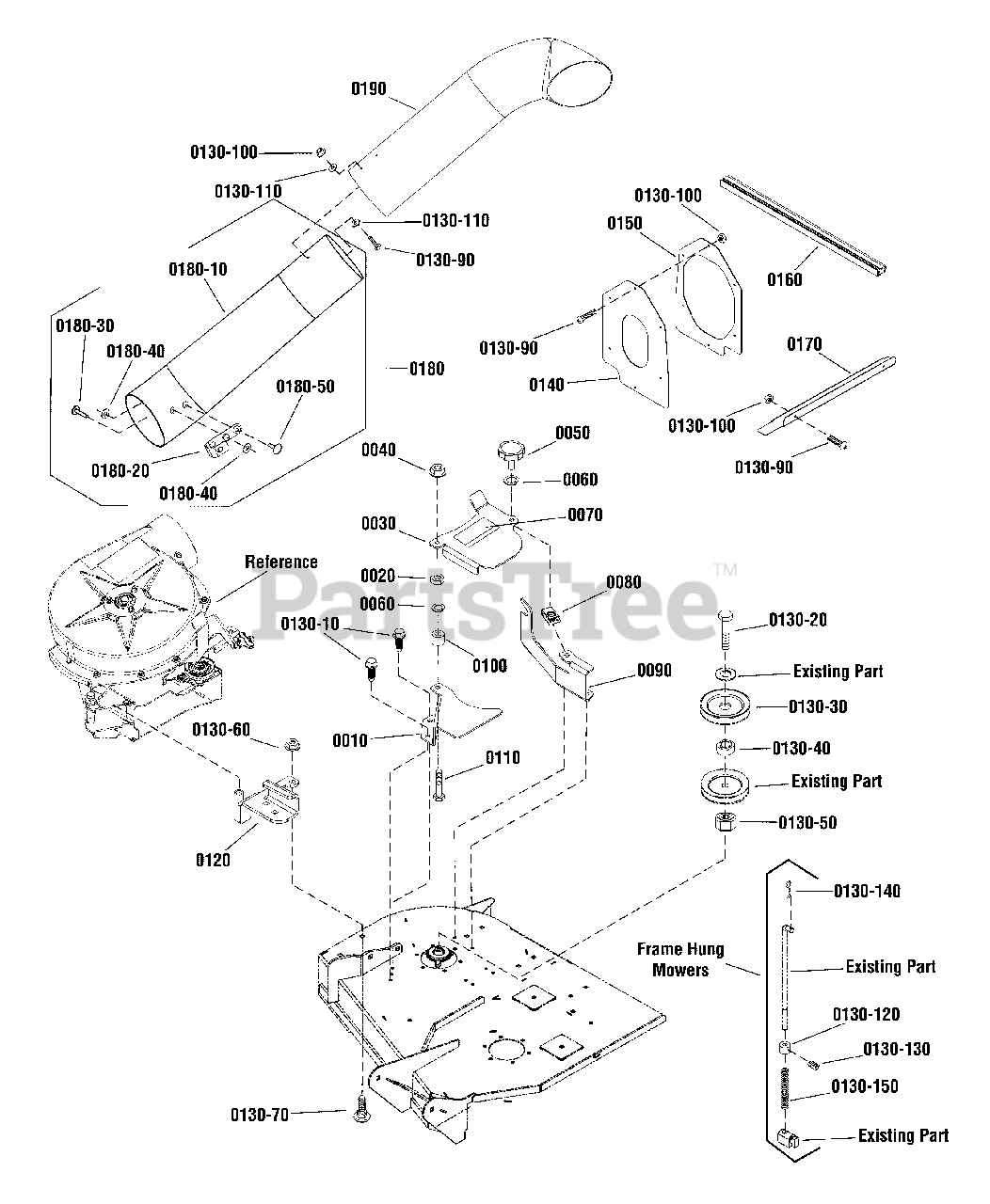

Turbo Collection System for 48" FAB Mower Deck

Turbo Mounting Group (2991436) Parts Diagram

  • Title

0010

Snapper 705898

COVER, Pulley

Note: each

$5.49

$

Usually ships in 2-12 days

0

0020

Snapper 703465

NUT, 5/16-18

Note: each

$4.49

$

Usually ships in 2-12 days

0

0030

Snapper 705990

COVER, Pulley

Note: each

$193.99

$

Usually ships in 2-12 days

0

0040

Snapper 703115

NUT, Flange NyLock, 5/16-18

Note: each

$3.49

$

In Stock, Qty 20+

0

0050

Snapper 5101731YP

KNOB, Rosette, 5/16-18 X 1

Note: each

$10.99

$

In Stock, only 4 left!

0

0060

Snapper 703116

WASHER, Lock Split, 5/16

Note: each

$3.49

$

In Stock, Qty 20+

0

0070

Snapper 5103184YP

DECAL, Warning

Note: each

$13.99

$

Usually ships in 2-12 days

0

0080

Snapper 1935255SM

NUT, Speed, 5/16-18

Note: each

$3.49

$

In Stock, only 2 left!

0

0090

Snapper 705991

LATCH, Cover

Note: each

$100.99

$

Usually ships in 2-12 days

0

0100

Snapper 5102581YP

SPACER, .33 X .63 X .5

Note: each

$11.99

$

Usually ships in 2-12 days

0

0110

Snapper 1922127SM

CAPSCREW, HexHead, 5/16-18 X 1 3/4
(Superseded to 704288)

Note: each

$4.99

$

Usually ships in 2-12 days

0

0120

Snapper 705992

PIVOT, Turbo

Note: each

$213.99

$

Usually ships in 2-12 days

0

--

Snapper 1758238

HARDWARE BAG

Note: (Not a serviceable part, order components separately)each

$

$

Not available

0130-10

Snapper 703228

SCREW, Washer, 5/16-18 X 3/4

Note: each

$4.49

$

In Stock, Qty 20+

0

0130-20

Snapper 2827120SM

CAPSCREW, Hex Head, 7/16-14 X 2 1/4

Note: each

$

$

Not available

0130-30

Snapper 1713090SM

PULLEY, 3 3/4

Note: each

$24.99

$

Usually ships in 2-12 days

0

0130-40

Snapper 1713623SM

HUB, .79 ID 1.50 OD .7 3 LG

Note: each

$9.99

$

In Stock, only 1 left!

0

0130-50

Snapper 1738102YP

SPACER, Pulley

Note: each

$62.99

$

Usually ships in 2-12 days

0

0130-60

Snapper 703793

NUT, Flange Lock, 3/8-16

Note: each

$4.49

$

In Stock, only 3 left!

0

0130-70

Snapper 703815

BOLT, Carriage, 3/8-16 X 1

Note: each

$4.49

$

In Stock, only 4 left!

0

0130-90

Snapper 1960404SM

SCREW, Truss Phillips, #10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0

0130-100

Snapper 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, only 2 left!

0

0130-110

Snapper 1910531SM

WAsher, Rivot

$3.99

$

Usually ships in 2-12 days

0

0130-120

Snapper 1719777SM

COLLAR, Set

$14.99

$

Usually ships in 2-12 days

0

0130-130

Snapper 1928721SM

SCREW, Set, Square Head

$4.99

$

In Stock, only 2 left!

0

0130-140

Snapper 703300

PIN, Hair, 3/32

$3.99

$

In Stock, Qty 20+

0

0130-150

Snapper 1729277SM

SPRING, Compression

$6.99

$

In Stock, only 1 left!

0

0140

Snapper 1733741SM

SEAL, Cover
(Superseded to 1733741YP)

$29.99

$

Usually ships in 2-12 days

0

0150

Snapper 1732735ASM

SEAL, Flange

$40.99

$

Usually ships in 2-12 days

0

0160

Snapper 1733579SM

EDGING
(Superseded to 1721175SM)

$39.99

$

Usually ships in 2-12 days

0

0170

Snapper 1733580ASM

PLATE, Deflector

$36.99

$

Usually ships in 2-12 days

0

0180

Snapper 705993

ASSEMBLY, Tube Lower

$219.99

$

Usually ships in 2-12 days

0

0180-10

-----

TUBE, Lower

Note: (Not sold separately, order item 0180)

$

$

Not available

0180-20

Snapper 1705063YP

SPRING, Clip

$

$

Not available

0180-30

Snapper 2810542SM

RIVET

$3.99

$

Usually ships in 2-12 days

0

0180-40

Snapper 1910531SM

WASHER, Rivet

$3.99

$

Usually ships in 2-12 days

0

0180-50

Snapper 1673320SM

RIVET

$4.49

$

In Stock, Qty 8

0

0190

Snapper 1732800SM

ELBOW, Vacuum

$74.99

$

Usually ships in 2-12 days

0
