1696446-02 - Simplicity 50" Mower Deck 50" (127cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

50" Mower Deck

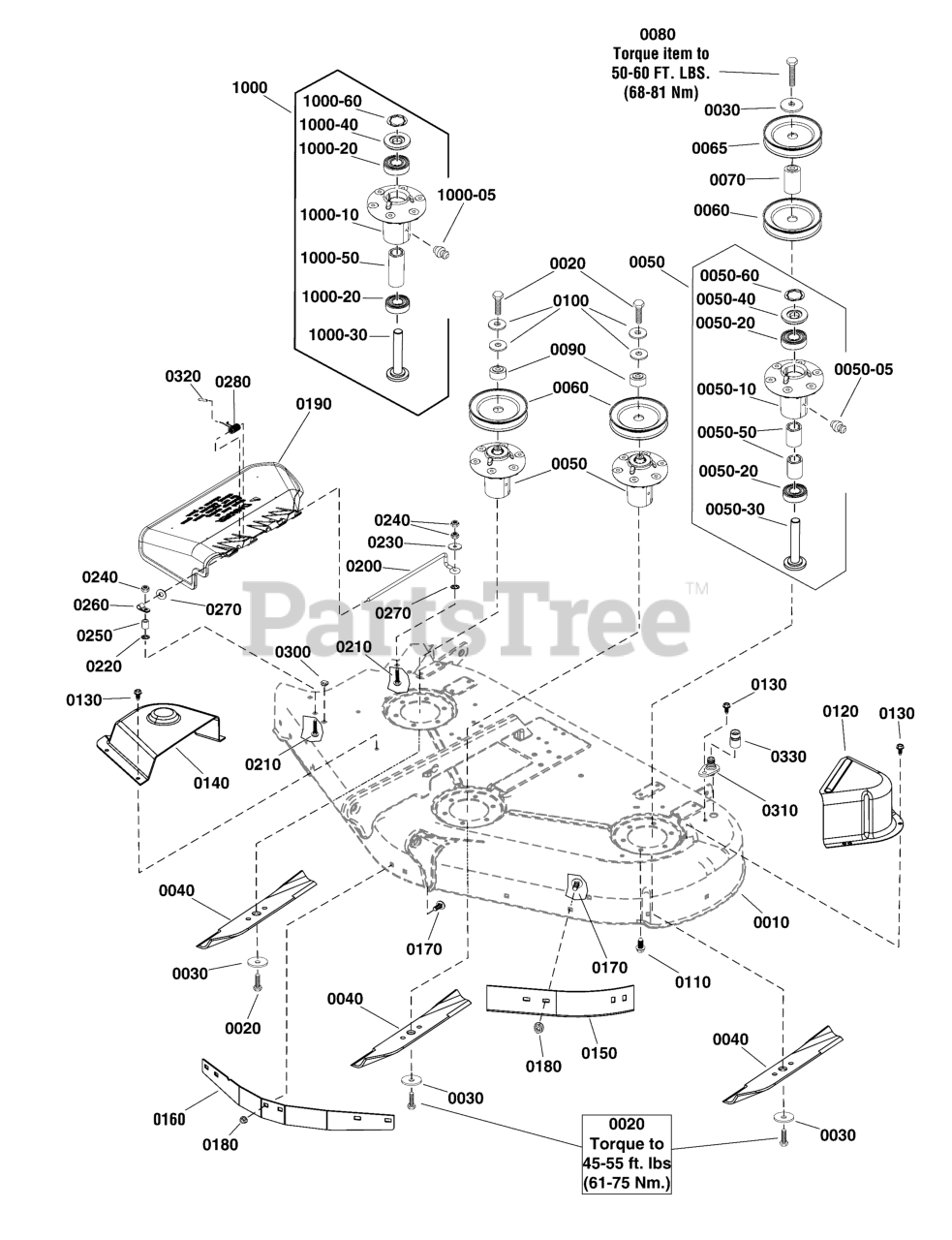

50" (127cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0010

Simplicity 770595

DECK, Mower, 50", Orange

$779.99

$

Usually ships in 2-12 days

0

0020

Simplicity 2820676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$4.49

$

In Stock, Qty 6

0

0030

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0040

Simplicity 1726453ASM

BLADE, Mower 50", Center & L.H.
(Superseded to 1726453YP)

$24.99

$

In Stock, Qty 20+

0

0050

Simplicity 84001644

ARBOR ASSEMBLY

Note: (Replaced by Ref. Nos. 1000, this arbor assembly is an exact replacement)

$

$

Currently unavailable

0050-05

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0050-10

Simplicity 1755437YP

HOUSING, w/Lube Fitting
(Superseded to 1760371YP)

$76.99

$

In Stock, only 1 left!

0

0050-20

Simplicity 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0050-30

Simplicity 1760276YP

SHAFT, Spindle

Note: (Replaced by Ref. Nos. 1000-30, this spindle shaft is an exact replacement)

$27.99

$

In Stock, only 3 left!

0

0050-40

Simplicity 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, only 1 left!

0

0050-50

Simplicity 1735328YP

SPACER, Bearing

Note: (Replaced by Ref. Nos. 1000-50, this spacer is an exact replacement)

$6.49

$

In Stock, only 1 left!

0

0050-60

Simplicity 1960766SM

RING, Self Locking
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

1000

Simplicity 84003172

ARBOR ASSEMBLY

$100.99

$

In Stock, Qty 8

0

1000-05

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

1000-10

Simplicity 84003653

HOUSING, w/Lube Fittting

$81.99

$

Usually ships in 2-12 days

0

1000-20

Simplicity 84003165

SHAFT, Spindle

$31.99

$

In Stock, only 1 left!

0

1000-30

Simplicity 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

1000-40

Simplicity 84003166

SHIELD, Arbor

$6.99

$

In Stock, only 1 left!

0

1000-50

Simplicity 84003167

SPACER, Bearing

$6.99

$

In Stock, Qty 7

0

1000-60

Simplicity 1960766SM

RING, Self Locking
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

0050-60

Simplicity 1960766SM

RING, Self Locking
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

0060

Simplicity 1755470YP

PULLEY, Deep Groove, 4 1/4

$13.99

$

In Stock, only 1 left!

0

0065

Simplicity 1732951SM

PULLEY, .68" Deep-Groove OD 4.6"

$19.99

$

In Stock, Qty 20+

0

0070

Simplicity 1755439YP

HUB, Pulley Double

$16.99

$

Usually ships in 2-12 days

0

0080

Simplicity 705439

CAPSCREW, Hex Head, 7/16-14 X 3 1/4

$7.49

$

In Stock, only 1 left!

0

0090

Simplicity 1735579YP

SPACER, Lower Drive

$7.49

$

Usually ships in 2-12 days

0

0100

Simplicity 1960769SM

WASHER, Belleville

$

$

Not available

0110

Simplicity 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0120

Simplicity 1720560ASM

COVER, Arbor LH
(Superseded to 84002518)

$90.99

$

In Stock, only 1 left!

0

0130

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 1715673SM

COVER, Arbor (RH)

$38.99

$

In Stock, only 1 left!

0

0150

Simplicity 1724538ASM

BAFFLE, Blowout, Short

$45.99

$

In Stock, only 1 left!

0

0160

Simplicity 1734181ASM

BAFFLE, Front

$43.99

$

Usually ships in 2-12 days

0

0170

Simplicity 703125

BOLT, Carriage, 5/16-18 x 5/8, GR5

$3.99

$

In Stock, only 2 left!

0

0180

Simplicity 1927557SM

NUT, Hex Flange Lock, Large, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1705449SM

DEFLECTOR, Discharge

$122.99

$

In Stock, only 1 left!

0

0200

Simplicity 1706709SM

ROD, Deflector

$8.49

$

In Stock, Qty 20+

0

0210

Simplicity 1931320SM

BOLT, Carriage, Short Neck, 1/4-20 x 1-1/4, G5
(Superseded to 703178)

$3.99

$

In Stock, only 1 left!

0

0220

Simplicity 1960674SM

NUT, Push Pal 1/4 Diameter Thread
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

0230

Simplicity 703229

WASHER, 1/4 x 27/32

$4.49

$

In Stock, Qty 7

0

0240

Simplicity 1920397SM

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0250

Simplicity 1710703SM

SPACER, 3/8 x 1/2 x 5/8

$6.49

$

In Stock, Qty 20+

0

0260

Simplicity 1704873SM

CLAMP, Wire, 5/16 Diameter

$4.49

$

In Stock, Qty 20+

0

0270

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 5

0

0280

Simplicity 1759750YP

SPRING, Deflector

$8.49

$

In Stock, Qty 20+

0

0300

Simplicity 1705115SM

PLUG, Button

$4.49

$

In Stock, only 1 left!

0

0310

Simplicity 1735716YP

ADAPTER, Washout Port
(Superseded to 1687721YP)

$13.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1723323SM

CAP, Spring End

$4.99

$

In Stock, only 1 left!

0

0330

Simplicity 1756246YP

CONNECTOR, Washout Port

$15.99

$

In Stock, only 1 left!

0
