1696445-02 - Simplicity 44" Mower Deck 44" (112cm) Mower Deck - Height Adjust & Roller Group Parts Diagram

44" Mower Deck

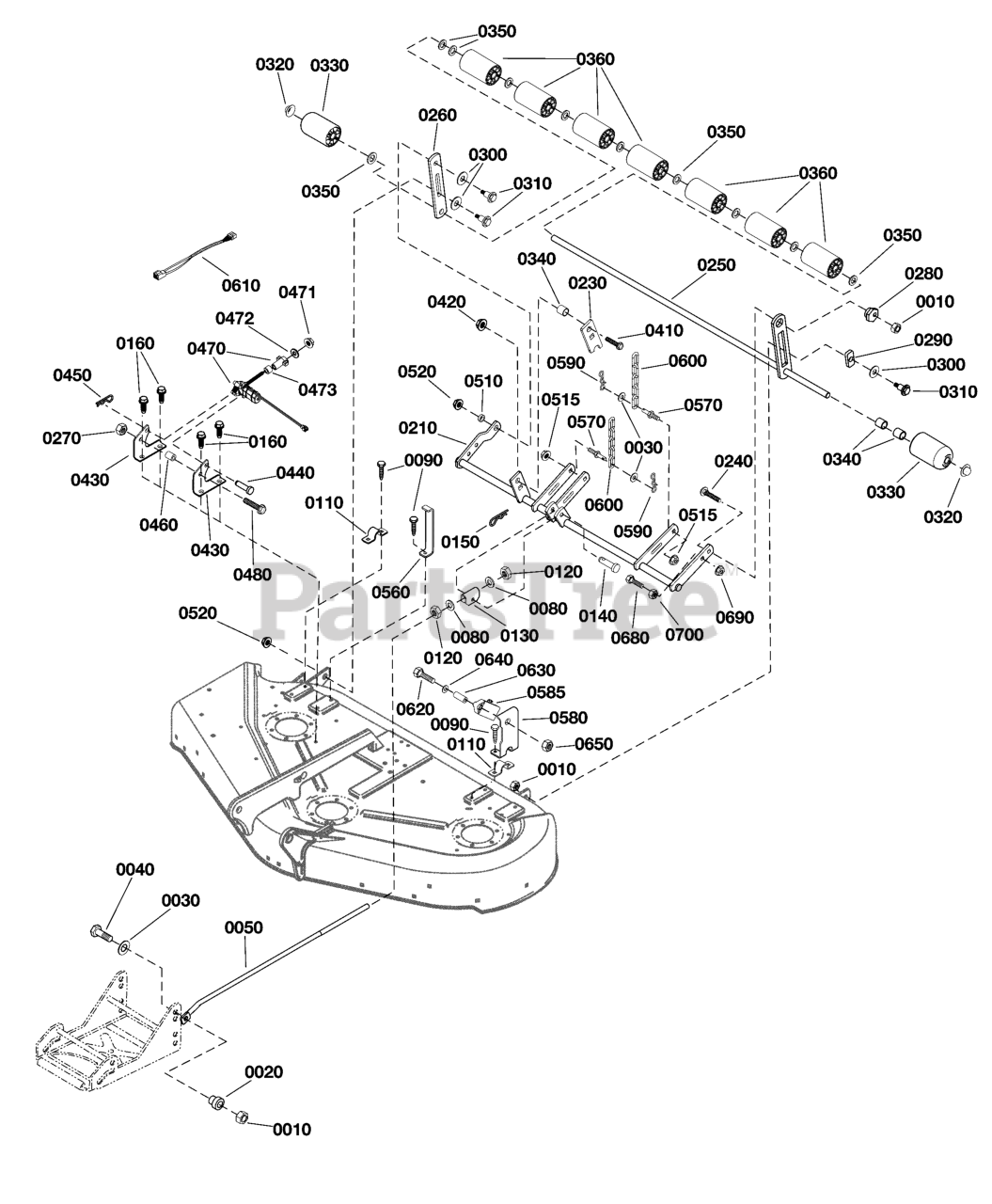

44" (112cm) Mower Deck - Height Adjust & Roller Group Parts Diagram

  • Title

0010

Simplicity 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 7

0

0020

Simplicity 1706644SM

SPACER, 3/8 x 3/4 x 15/16

$8.49

$

In Stock, only 3 left!

0

0030

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0040

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 13

0

0050

Simplicity 1704093SM

ROD, Adjustment

$47.99

$

Usually ships in 2-12 days

0

0080

Simplicity 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0

0090

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0110

Simplicity 1761690HYP

STRAP, Rocker Shaft

$7.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

In Stock, Qty 19

0

0130

Simplicity 1704081ASM

TRUNNION

$7.99

$

Usually ships in 2-12 days

0

0140

Simplicity 704241

PIN, Round Head, 3/8 X 2

$9.99

$

In Stock, only 2 left!

0

0150

Simplicity 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0160

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0210

Simplicity 1756039AYP

ROCKER SHAFT ASSEMBLY, Electric HOC

$146.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1733776AYP

ARM, Rear

$14.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 4 left!

0

0250

Simplicity 1716159ASM

SHAFT & BAR ASSEMBLY, Roller 44"
(Superseded to 1685443SM)

$137.99

$

In Stock, only 1 left!

0

0260

Simplicity 1704074ASM

BAR, Roller 5/16

$17.99

$

In Stock, only 1 left!

0

0270

Simplicity 1927557SM

NUT, Hex Flange Lock, Large, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1704082SM

NUT, Hex Adjusting, 11/16

$5.49

$

In Stock, Qty 15

0

0290

Simplicity 1677507SM

SLIDE, .803 x 1.7

$6.99

$

In Stock, only 3 left!

0

0300

Simplicity 1924361SM

WASHER, Flat
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

0310

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34, 1/2 Shoulder

$6.99

$

In Stock, Qty 20+

0

0320

Simplicity 1960520SM

NUT, Push, 5/8
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

0330

Simplicity 1722036SM

ROLLER, Rounded, 4.1 LG, 650 ID, 2.50 OD Rounded End

$7.99

$

In Stock, Qty 20+

0

0340

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

0350

Simplicity 703580

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

0360

Simplicity 1668513SM

ROLLER, .652 ID, 2.50 OD, 4.10 LG

$10.99

$

In Stock, Qty 20+

0

0410

Simplicity 1960706SM

BOLT, Carriage, Short Neck, 1/2-13 x 2

$5.99

$

Usually ships in 2-12 days

0

0420

Simplicity 1960689SM

NUT, Hex, Toplock Flange,1/2-13

$3.49

$

Usually ships in 2-12 days

0

0430

Simplicity 1756489AYP

BRACKET, Motor

$10.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1960221SM

CLIP, Hair Pin
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

0450

Simplicity 703430

PIN, 13X1.19

$3.49

$

In Stock, only 2 left!

0

0460

Simplicity 1733068SM

SPACER, 0.39 x 3/4 x 0.965

$13.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1761788YP

MOTOR, Electric

$107.99

$

In Stock, Qty 15

0

0471

Simplicity 1960757SM

NUT, Hex, 1/4-20 L.H. Thread

$5.49

$

Usually ships in 2-12 days

0

0472

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0473

Simplicity 5045178SM

SPACER, .52 X 1.00 X .75, CZ

$7.49

$

In Stock, Qty 6

0

0480

Simplicity 5025145X14YP

BOLT, Carriage, 5/16-18 X 1 3/4

$2.49

$

Usually ships in 2-12 days

0

0515

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0520

Simplicity 703893

NUT, Hex, Flange, Two Way Lock, 3/8-16

$6.99

$

In Stock, Qty 20+

0

0560

Simplicity 1733226ASM

UPSTOP

$20.99

$

Usually ships in 2-12 days

0

0570

Simplicity 703816

PIN, Threaded, Shoulder

$12.99

$

Usually ships in 2-12 days

0

0580

Simplicity 84004180

BRACKET, Height of Cut

$

$

Currently unavailable

0585

Simplicity 1750618YP

SENSOR, Electric Height Of Cut

$54.99

$

In Stock, only 1 left!

0

0590

Simplicity 1722320SM

PIN, Cotter, Locking,

$3.49

$

In Stock, Qty 20+

0

0600

Simplicity 1708088ASM

CHAIN, Lift, 4 Link

$11.99

$

Usually ships in 2-12 days

0

0610

Simplicity 1756116YP

HARNESS, Height of Cut

$20.99

$

Usually ships in 2-12 days

0

0620

Simplicity 703163

SCREW, 1/4-20 X 2.0, Hex Head Cap, GR5

$3.49

$

Usually ships in 2-12 days

0

0630

Simplicity 5101215YP

SPACER, 1/4 ID x 3/8 OK x 1-1/4

$8.49

$

Usually ships in 2-12 days

0

0640

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0650

Simplicity 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 6

0

0680

Simplicity 703177

SCREW, 5/16-18 X 2.25, GR5, Zinc/Clear, Hex Head

$3.49

$

Usually ships in 2-12 days

0

0690

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0700

Simplicity 1920161SM

NUT, Hex Jam, 5/16-18

$4.49

$

In Stock, only 2 left!

0
