1696441-01 - Murray 42" Mower Deck (2016) 42" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

42" Mower Deck

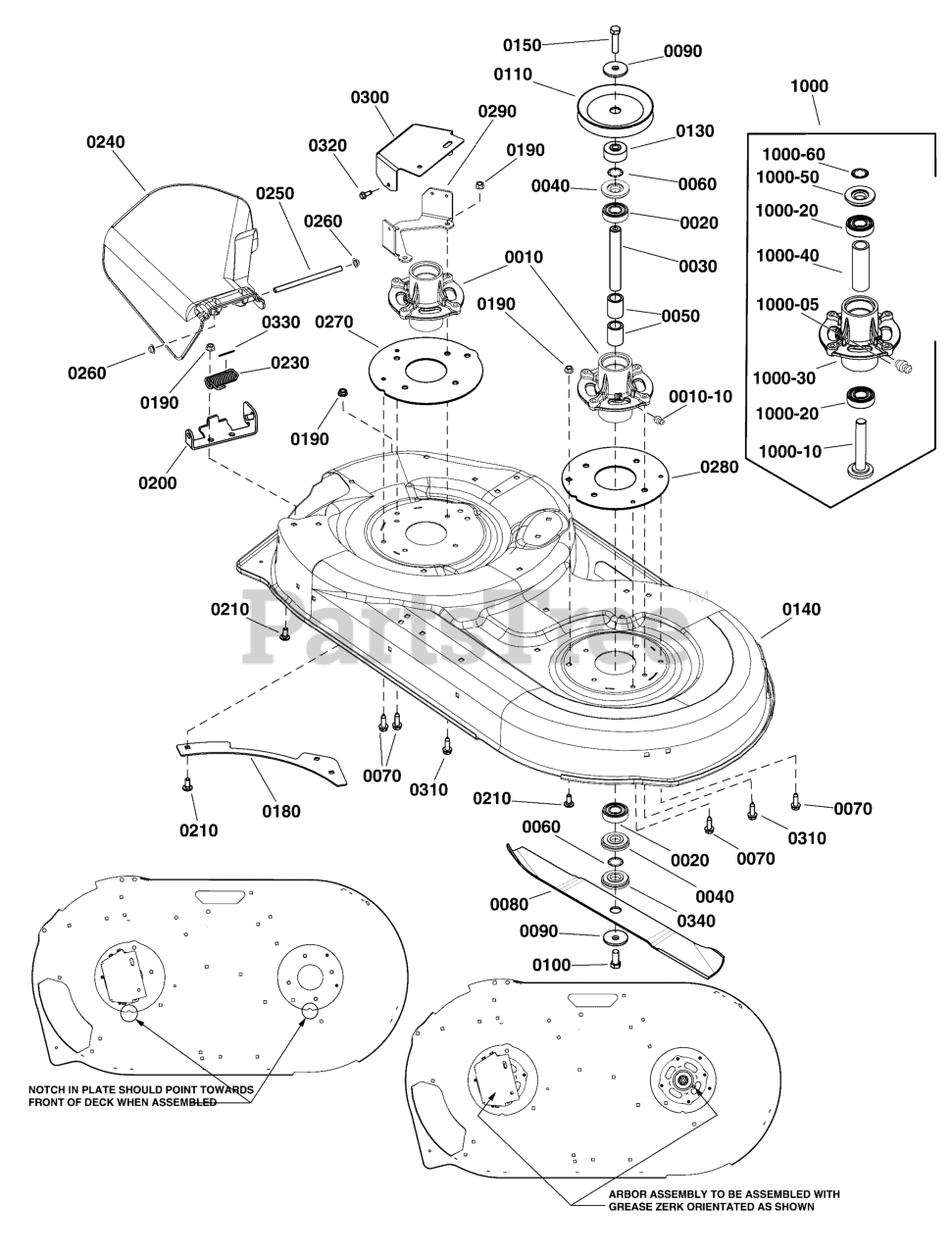

42" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0010

Murray 1735573YP

HOUSING, Spindle w/Fitting
(Superseded to 84003654)

$43.99

$

In Stock, Qty 8

0

0010-10

Murray 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0020

Murray 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0030

Murray 1735326YP

SHAFT, Spindle
(Superseded to 1760276YP)

$27.99

$

In Stock, only 4 left!

0

0040

Murray 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, only 2 left!

0

0050

Murray 1735328YP

SPACER, Bearing

$6.49

$

In Stock, only 3 left!

0

0060

Murray 1960766YP

RING, Self Lock

$4.49

$

In Stock, Qty 20+

0

0070

Murray 1960373SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0080

Murray 1752100AYP

BLADE, 42" Mower

$29.99

$

Usually ships in 2-12 days

0

0090

Murray 1656916SM

WASHER, Spring, 1/2

$7.49

$

In Stock, Qty 20+

0

0100

Murray 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 12

0

0110

Murray 1737835YP

PULLEY, V, Deep Groove

$20.99

$

In Stock, only 1 left!

0

0130

Murray 1737457YP

SPACER, Pulley

$10.99

$

In Stock, only 1 left!

0

0140

Murray 1736504ZYP

HOUSING, Mower Deck, 42

$506.99

$

In Stock, only 1 left!

0

0150

Murray 1923027SM

CAPSCREW, Hex Head, 7/16-14 x 1-3/4,G5
(Superseded to 703171)

$3.99

$

In Stock, Qty 6

0

0180

Murray 092426E701MA

PLATE, Rear

$10.99

$

In Stock, only 1 left!

0

0190

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0200

Murray 094956E701MA

BRACKET, Hinge

$22.99

$

Usually ships in 2-12 days

0

0210

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0230

Murray 0166X4MA

SPRING, Torsion

$6.49

$

In Stock, Qty 9

0

0240

Murray 094707MA

DEFLECTOR & SUPPORT ASSEMBLY

$108.99

$

In Stock, only 3 left!

0

0250

Murray 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

0260

Murray 1960093SM

NUT, Push Pal, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

0270

Murray 1750457BMYP

PLATE, Spindle, RH

$28.99

$

In Stock, only 1 left!

0

0280

Murray 1750458BMYP

PLATE, Spindle, LH

$28.99

$

In Stock, only 2 left!

0

0290

Murray 1752065BMYP

BRACKET, Guard Mount

$23.99

$

Usually ships in 2-12 days

0

0300

Murray 1752034BMYP

COVER, Mower Spindle

$26.99

$

Usually ships in 2-12 days

0

0310

Murray 1930600SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 19

0

0320

Murray 26X263MA

SCREW, Hex, 1/4-20 x 5/8

$4.99

$

In Stock, only 1 left!

0

0330

Murray 5023489SM

CAP, Protector

$3.99

$

Usually ships in 2-12 days

0

0340

Murray 1755892YP

SPACER, Blade Adapter

$36.99

$

Usually ships in 2-12 days

0
