1696441-00 - Murray 42" Mower Deck (2015) 42" Mower Deck - Clutch Group Parts Diagram

42" Mower Deck

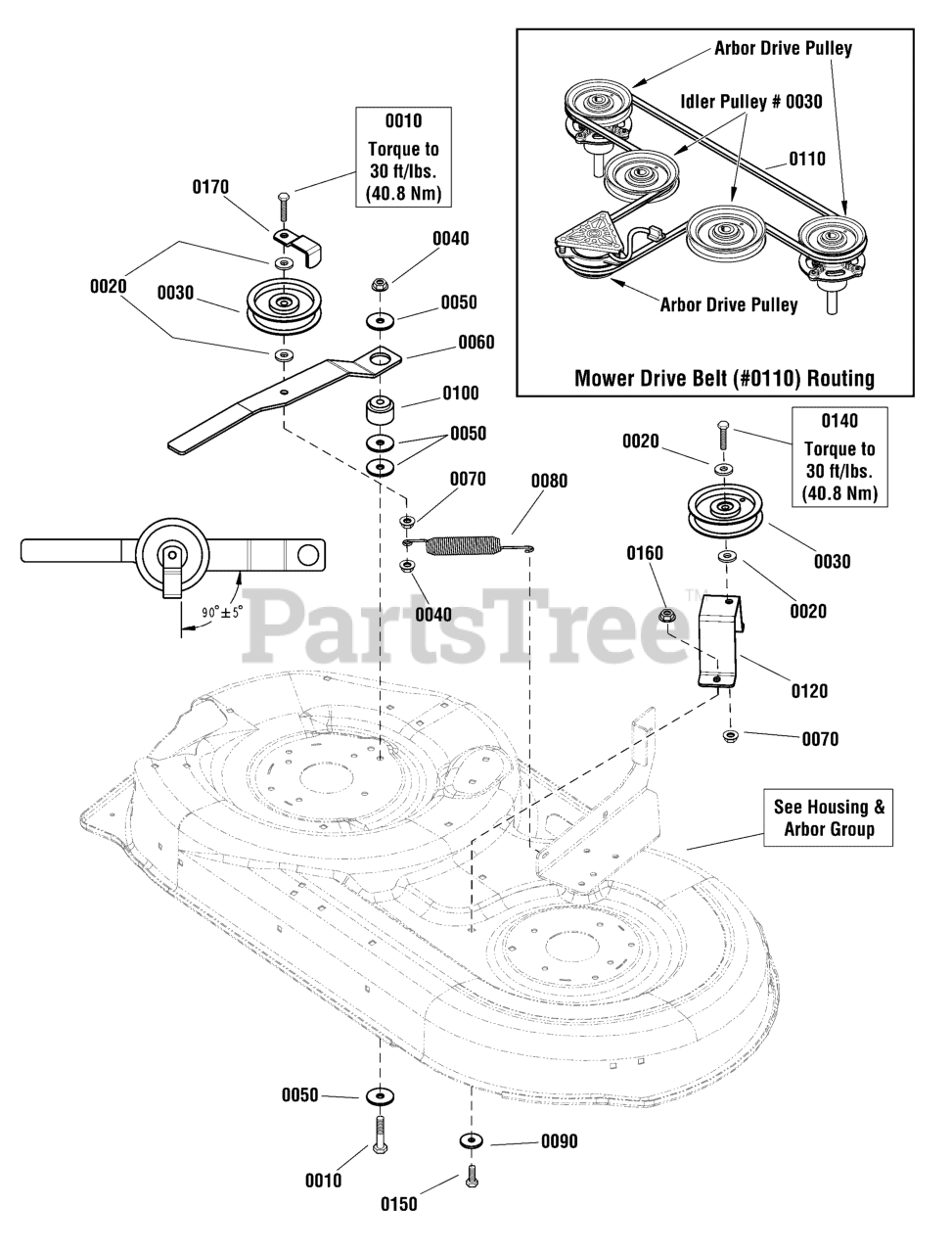

42" Mower Deck - Clutch Group Parts Diagram

  • Title

0010

Murray 1922130SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/4, G5
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

0020

Murray 1922755SM

WASHER, 3/8 x 1 OD
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

0030

Murray 7018574SM

IDLER, Flat, 4 1/8

$38.99

$

In Stock, Qty 20+

0

0040

Murray 1960339SM

NUT, Hex Flange, 3/8-16, Locking

$

$

Not available

0050

Murray 1924356SM

WASHER, 3/8 x 1-1/2 OD
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0060

Murray 1731944ASM

ARM, Idler

$23.99

$

In Stock, Qty 15

0

0070

Murray 1931211SM

NUT, Hex Flange Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0080

Murray 1731311SM

SPRING, Extension, 1-1/32 OD x 7-3/4

$16.99

$

In Stock, only 1 left!

0

0090

Murray 1933468SM

WASHER, 5/16 x 1-1/4 OD

$4.49

$

Usually ships in 2-12 days

0

0100

Murray 1729007SM

SPACER, 3/8 ID X 1-1/2 OD x 1-1/32

$11.99

$

In Stock, Qty 20+

0

0110

Murray 1732955SM

V-BELT, A-Wedge, HA, 94.45 LG

$56.99

$

In Stock, Qty 20+

0

0120

Murray 1731911ASM

SUPPORT, Idler

$15.99

$

In Stock, only 1 left!

0

0140

Murray 1921971SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4, G5
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

0150

Murray 1923325SM

CAPSCREW, Hex Head, 5/16-18 x 7/8, G5
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

0160

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0170

Murray 1732884ASM

GUARD, Spring

$15.99

$

In Stock, only 1 left!

0
