1696427 - Simplicity 54" Mower Deck 54" (137cm) Mower Deck - Height Adjust & Roller Group Parts Diagram

54" Mower Deck

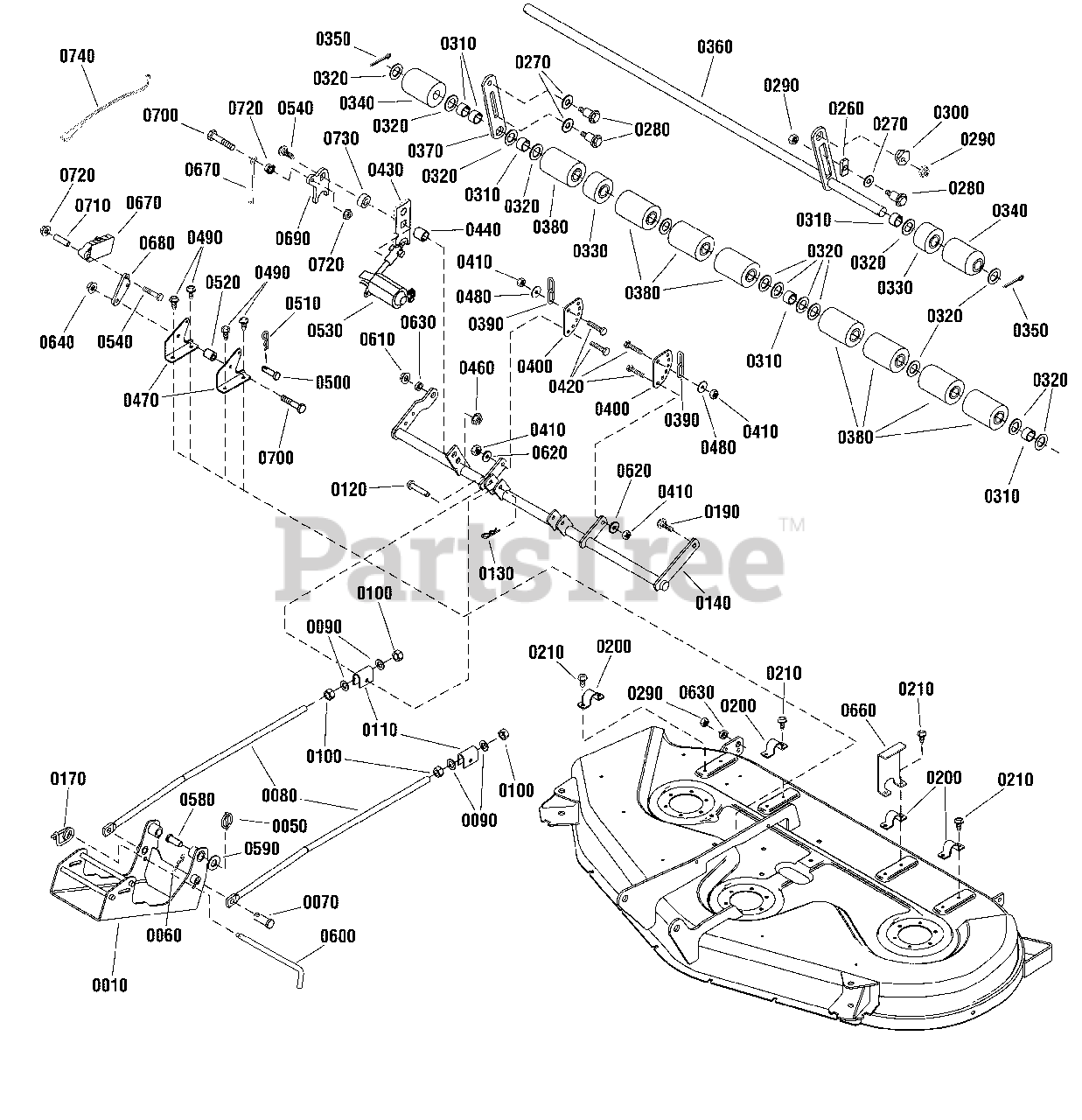

54" (137cm) Mower Deck - Height Adjust & Roller Group Parts Diagram

  • Title

0010

Simplicity 1737046ASM

HITCH & ROD ASSEMBLY, 54"

$

$

Not available

0050

Simplicity 1709189SM

PIN, Klink

$6.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1722320SM

PIN, Cotter

$3.49

$

In Stock, Qty 20+

0

0070

Simplicity 5025479SM

PIN, Clevis

$

$

Not available

0080

Simplicity 1722995SM

ROD, Adjusting

$41.99

$

Usually ships in 2-12 days

0

0090

Simplicity 703580

WASHER

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 703912

NUT, Hex, 5/8-11

$3.49

$

In Stock, Qty 5

0

0110

Simplicity 1706645ASM

TRUNNION
(Superseded to 84003858)

$8.49

$

Usually ships in 2-12 days

0

0120

Simplicity 704241

PIN, 3/8 X 2.00

$9.99

$

In Stock, only 2 left!

0

0130

Simplicity 703300

PIN, Hair, 3/32 X 1.600

$3.99

$

In Stock, Qty 20+

0

0140

Simplicity 1733523ASM

SHAFT ASSEMBLY, Rocker 54"

$262.99

$

Usually ships in 2-12 days

0

0170

Simplicity 703852

PIN, Retainer, 5/16 X 3/8

$4.49

$

In Stock, Qty 20+

0

0190

Simplicity 1931352SM

BOLT, Carriage, 3/8-16 x 1-1/2, G5

$4.49

$

In Stock, only 4 left!

0

0200

Simplicity 1720147ASM

STRAP, Rod
(Superseded to 1720147BZYP)

$9.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 X 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0260

Simplicity 1677507SM

SLIDE

$6.99

$

In Stock, only 3 left!

0

0270

Simplicity 703451

WASHER, Flat

$4.49

$

In Stock, Qty 20+

0

0280

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

0290

Simplicity 2860681SM

NUT, Hex Toplock, 3/8-16

$4.49

$

In Stock, Qty 7

0

0300

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 15

0

0310

Simplicity 1701873SM

SPACER

$6.49

$

In Stock, Qty 7

0

0320

Simplicity 2860626SM

WASHER, 1

$4.49

$

In Stock, Qty 20+

0

0330

Simplicity 1720159SM

ROLLER

$35.99

$

In Stock, only 3 left!

0

0340

Simplicity 1678043SM

ROLLER

$45.99

$

In Stock, Qty 20+

0

0350

Simplicity 1918459SM

PIN, Cotter
(Superseded to 703983)

$4.49

$

In Stock, Qty 13

0

0360

Simplicity 1723008ASM

SHAFT & BAR ASSEMBLY

$231.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1723009ASM

BAR, Roller

$19.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1678042SM

ROLLER W/BUSHINGS
(Superseded to 1678043SM)

$45.99

$

In Stock, Qty 20+

0

0390

Simplicity 1731383ASM

CHAIN, Link

$6.49

$

In Stock, only 2 left!

0

0400

Simplicity 1734126ASM

BRACKET, Roller Adjust

$19.99

$

In Stock, only 2 left!

0

0410

Simplicity 1919438SM

NUT, Hex Lock ESNA Light 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0420

Simplicity 1921977SM

CAPSCREW, Hex Head 5/16-18 x 1-1/4 G5
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

0430

Simplicity 1733520ASM

ARM, Rear

$10.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

0460

Simplicity 1960689SM

NUT, Hex Toplock Flange 1/2-13

$3.49

$

Usually ships in 2-12 days

0

0470

Simplicity 1733831ASM

BRACKET, Mounting

$16.99

$

Usually ships in 2-12 days

0

0480

Simplicity 1960044SM

WASHER, 5/16

$4.49

$

In Stock, only 3 left!

0

0490

Simplicity 1930601SM

CAPSCREW, Hex Washer Head Taptite 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0500

Simplicity 1668344SM

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0510

Simplicity 1960221SM

CLIP, Hairpin
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

0520

Simplicity 1733068SM

SPACER, 0.390IDX0.750ODX0.965LG

$13.99

$

Usually ships in 2-12 days

0

0530

Simplicity 1753528YP

MOTOR, Deck Lift
(Superseded to 1761788YP)

$107.99

$

In Stock, Qty 15

0

0540

Simplicity 5025011X16

BOLT, 5/16-18 X 2, GD5
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

0580

Simplicity 1736965SM

PIN, Clevis

$26.99

$

Usually ships in 2-12 days

0

0590

Simplicity 1960061SM

WASHER, 3/4

$7.99

$

Usually ships in 2-12 days

0

0600

Simplicity 1731414SM

ROD, Latch, 9"

$14.99

$

Usually ships in 2-12 days

0

0610

Simplicity 1960339SM

NUT, Hex Flange, 3/8-16

$

$

Not available

0620

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

0630

Simplicity 1663752SM

SPACER, 0.39OIFX0.624ODX0.195LG

$5.99

$

In Stock, only 2 left!

0

0640

Simplicity 1927557SM

NUT, Hex Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

0660

Simplicity 1737075ASM

UPSTOP

$47.99

$

Usually ships in 2-12 days

0

0670

Simplicity 1750618YP

SENSOR, EHOC

$54.99

$

In Stock, only 1 left!

0

0680

Simplicity 1756242AYP

BRACKET, EHOC

$7.49

$

Usually ships in 2-12 days

0

0690

Simplicity 1756490AYP

BRACKET, EHOC

$27.99

$

Usually ships in 2-12 days

0

0700

Simplicity 5025010X16

BOLT, 1/4-20 X 2", GD5
(Superseded to 5025010X16FS)

$2.99

$

Usually ships in 2-12 days

0

0710

Simplicity 5101215YP

SPACER, .26 X .38 X 1.25

$8.49

$

Usually ships in 2-12 days

0

0720

Simplicity 703463

NUT, Hex Flange,1/4-20

Note: (5025391)

$4.49

$

In Stock, Qty 20+

0

0730

Simplicity 5045023SM

SPACER, .52 X 1.00 X .44

$6.49

$

In Stock, only 1 left!

0

0740

Simplicity 1756116YP

HARNESS, Height of Cut

$20.99

$

Usually ships in 2-12 days

0
