1696425-00 - Simplicity 42" Snow Thrower Attachment Drive Group (991301) Parts Diagram

42" Snow Thrower Attachment

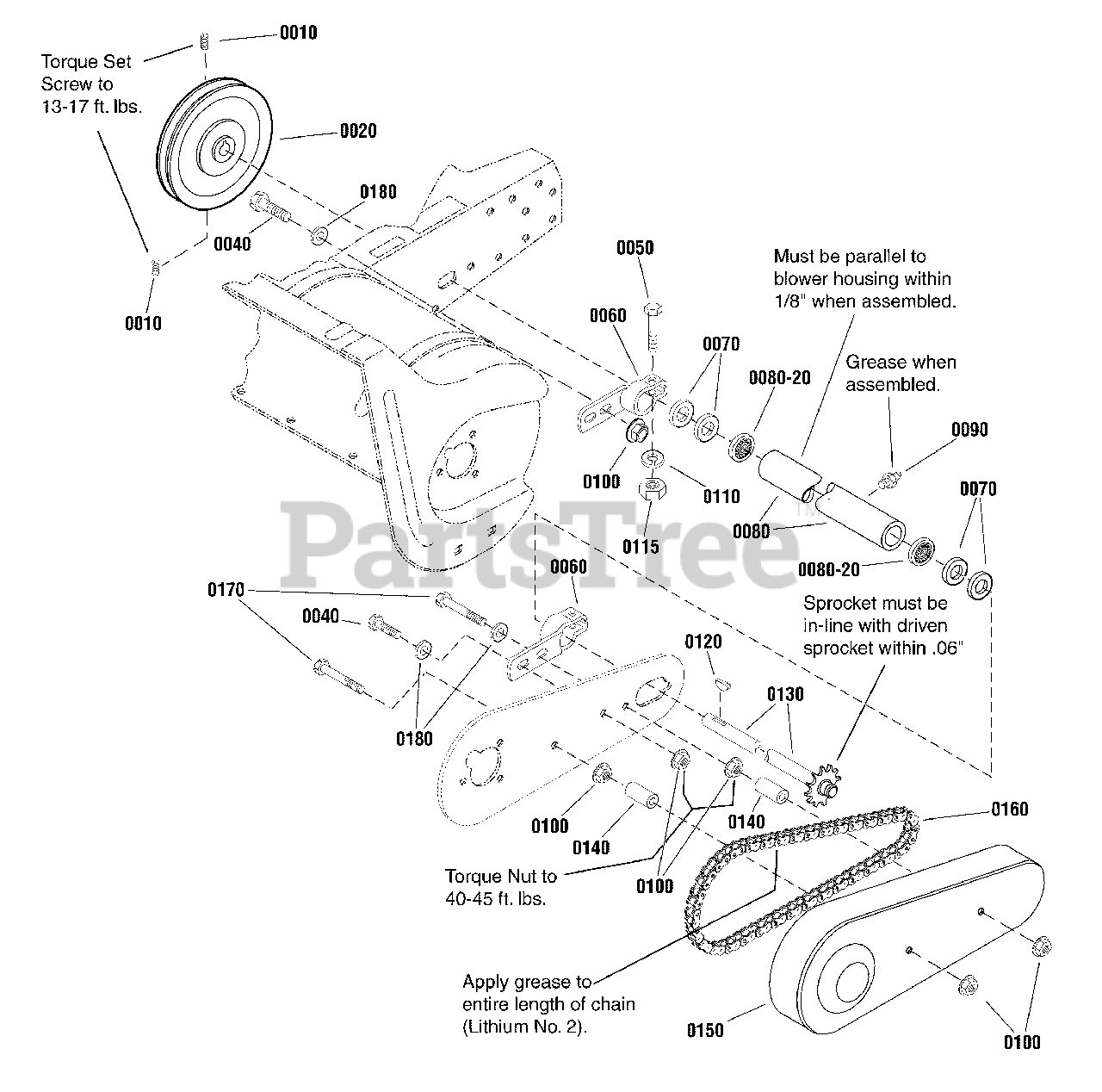

Drive Group (991301) Parts Diagram

  • Title

0010

Simplicity 1930540SM

SCREW, Set Square Head, 16 - 18 x 5/8, G8

$4.49

$

In Stock, Qty 11

0

0020

Simplicity 2171248SM

PULLEY, 5.6 O.D. X 3/4 with Hub

$103.99

$

Usually ships in 2-12 days

0

0040

Simplicity 704038

SCREW, Hex Whiz Lock Flange, 3/8 - 16 x 1

$5.99

$

In Stock, only 2 left!

0

0050

Simplicity 704288

CAPSCREW, Hex Head, 5/16 - 18 x 1-3/4

$4.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1666145ASM

CLAMP, Housing, 1-1/4 DIA Shaft

$38.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1729259SM

WASHER, Special, 1 1/4

$5.99

$

In Stock, Qty 7

0

0080

Simplicity 1650955SM

HOUSING ASSEMBLY, with Bearings

$164.99

$

Usually ships in 2-12 days

0

0080-20

Simplicity 2154258SM

BEARING, Needle

$26.99

$

In Stock, Qty 8

0

0090

Simplicity 703907

FITTING, Grease

$4.99

$

In Stock, Qty 20+

0

0100

Simplicity 703793

LOCKNUT, Flange

$4.49

$

In Stock, Qty 5

0

0110

Simplicity 703116

LOCKWASHER, 5/16

$3.49

$

In Stock, Qty 20+

0

0115

Simplicity 703465

NUT, Hex, 5/16 - 18

$4.49

$

Usually ships in 2-12 days

0

0120

Simplicity 2805123SM

KEY, Woodruff, 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

0130

Simplicity 2106757SM

SHAFT & SPROCKET ASSEMBLY, Snow

$240.99

$

In Stock, only 1 left!

0

0140

Simplicity 1669105SM

SPACER

$13.99

$

In Stock, only 2 left!

0

0150

Simplicity 1676738ASM

CHAIN, Guard

$67.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1756398YP

CHAIN, Rotor

$34.99

$

Usually ships in 2-12 days

0

0170

Simplicity 704037

SCREW, Hex Flange, 3/8 x 16 - 2 3/4

$5.99

$

Usually ships in 2-12 days

0

0180

Simplicity 703878

WASHER, Flat, 7/8

$3.99

$

In Stock, Qty 20+

0
