1696423-00 - Snapper 42" Snow Thrower Attachment Drive Group (991155) Parts Diagram

42" Snow Thrower Attachment

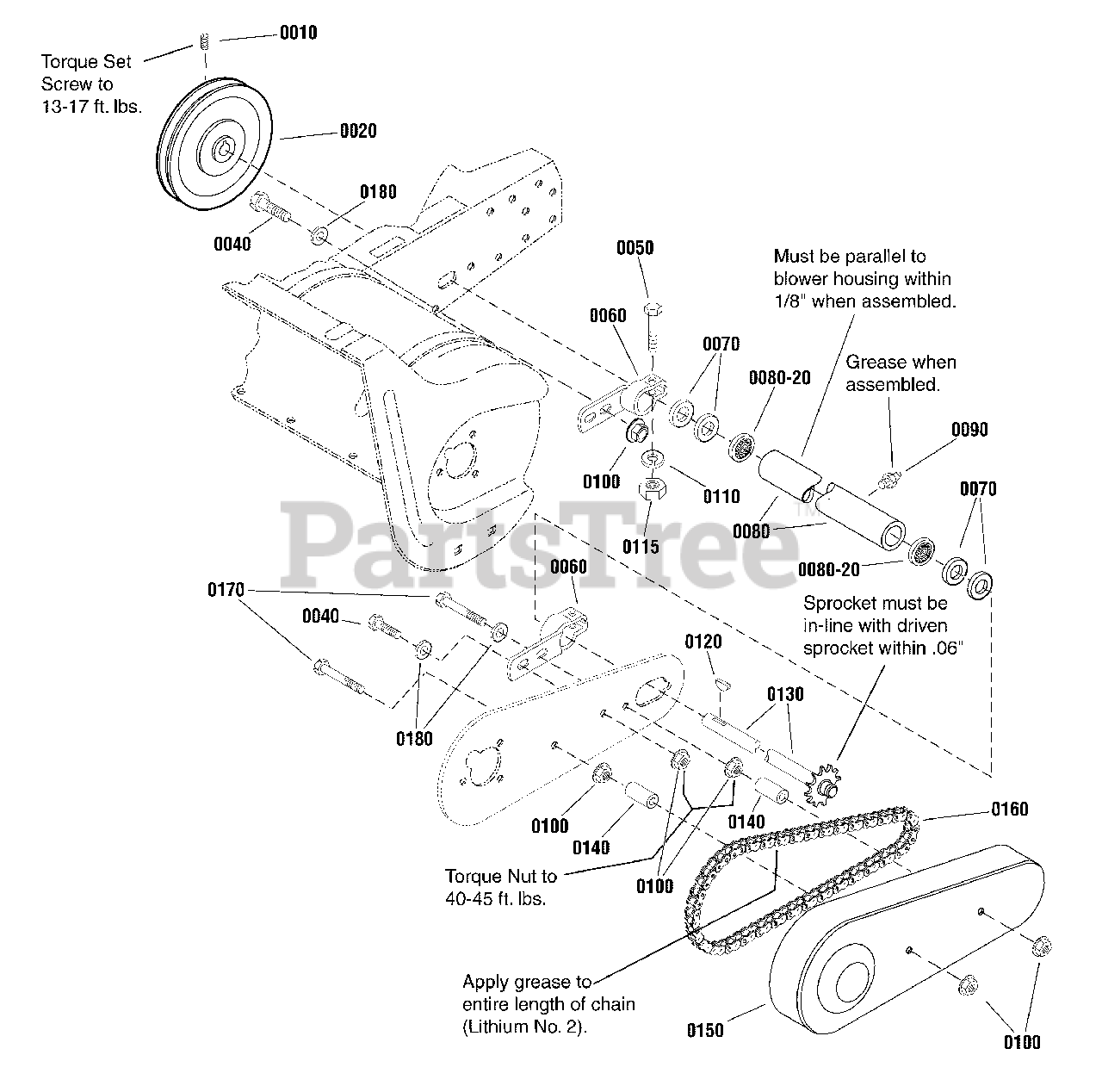

Drive Group (991155) Parts Diagram

  • Title

0010

Snapper 1930540SM

SCREW, Set Square Head, 16 - 18 x 5/8, G8

$4.49

$

In Stock, Qty 10

0

0020

Snapper 2171248SM

PULLEY, 7 O.D. 3/4 x 7/8 with Hub

$103.99

$

Usually ships in 2-12 days

0

0040

Snapper 704038

SCREW, Hex Whiz Lock Flange, 3/8 - 16 x 1

$5.99

$

In Stock, only 2 left!

0

0050

Snapper 704288

CAPSCREW, Hex Head, 5/16-18 x 1 3/4

$4.99

$

Usually ships in 2-12 days

0

0060

Snapper 1666145ASM

CLAMP, Housing, 1-1/4 DIA Shaft

$38.99

$

Usually ships in 2-12 days

0

0070

Snapper 1729259SM

WASHER, Special, 1 1/4

$5.99

$

In Stock, Qty 7

0

0080

Snapper 1650955SM

HOUSING ASSEMBLY, with Bearings

$164.99

$

Usually ships in 2-12 days

0

0080-20

Snapper 2154258SM

BEARING, Needle

$26.99

$

In Stock, Qty 8

0

0090

Snapper 703907

FITTING, Grease

$4.99

$

In Stock, Qty 20+

0

0100

Snapper 703793

LOCKNUT, Flange

$4.49

$

In Stock, only 3 left!

0

0110

Snapper 703116

LOCKWASHER, 5/16

$3.49

$

In Stock, Qty 20+

0

0115

Snapper 703465

NUT, Hex, 5/16 - 18

$4.49

$

Usually ships in 2-12 days

0

0120

Snapper 2805123SM

KEY, Woodruff, 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

0130

Snapper 2106757SM

SHAFT & SPROCKET ASSEMBLY, Snow

$240.99

$

Usually ships in 2-12 days

0

0140

Snapper 1669105SM

SPACER

$13.99

$

In Stock, only 2 left!

0

0150

Snapper 1676738ASM

CHAIN, Guard

$67.99

$

Usually ships in 2-12 days

0

0160

Snapper 1756398YP

CHAIN, Rotor

$34.99

$

Usually ships in 2-12 days

0

0170

Snapper 5025058X24YP

CAPSCREW, 3/8 x 16 - 3

$3.99

$

Usually ships in 2-12 days

0

0180

Snapper 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0
