1696423-00 - Snapper 42" Snow Thrower Attachment Body & Rotor Group (991170) Parts Diagram

42" Snow Thrower Attachment

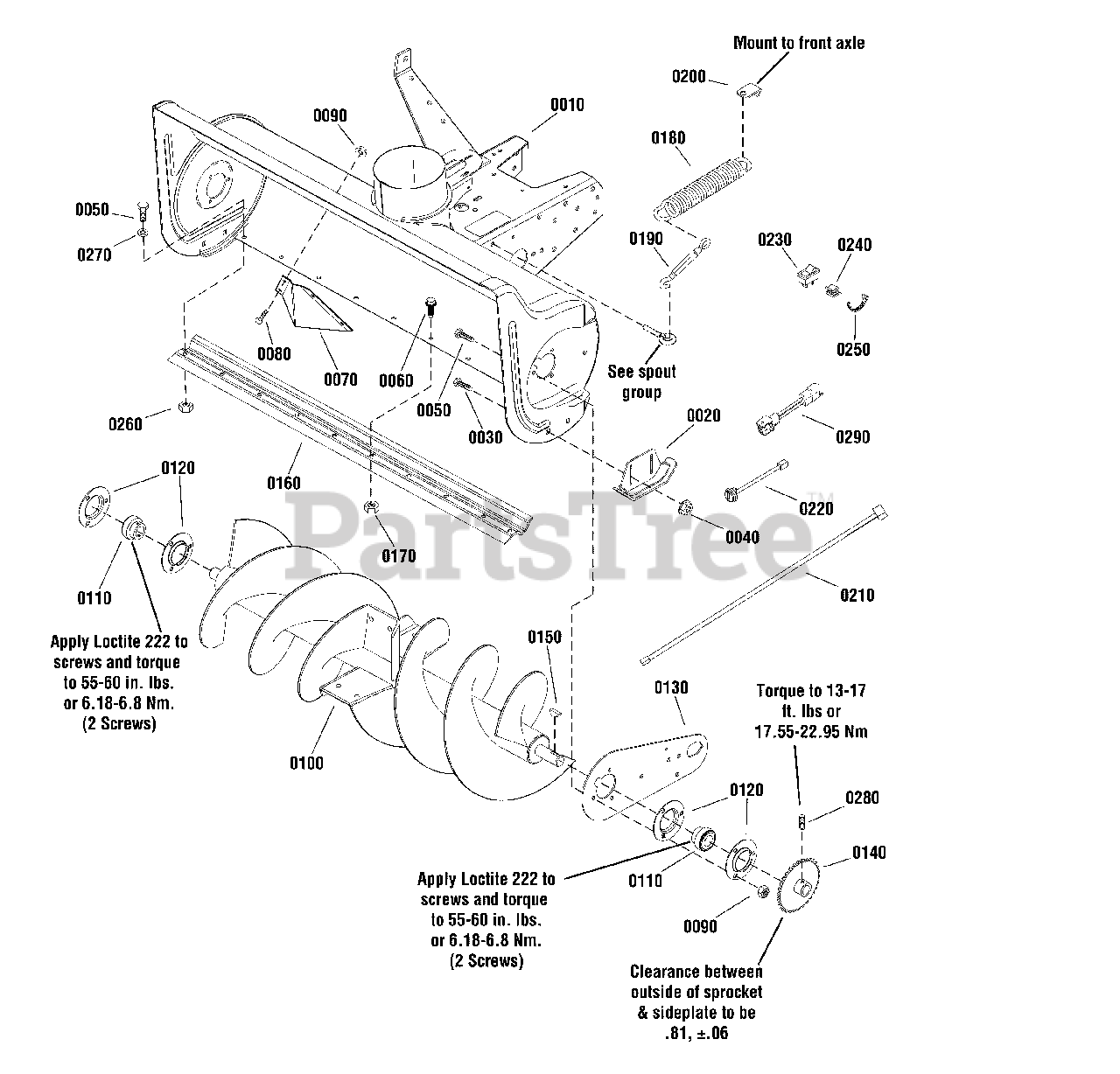

Body & Rotor Group (991170) Parts Diagram

  • Title

0010

Snapper 1732806ASM

BODY & FRAME ASSEMBLY, 42"

$

$

Not available

0020

Snapper 1713424ASM

SKID ASSEMBLY, with Wear Strip

$54.99

$

Usually ships in 2-12 days

0

0030

Snapper 703126

BOLT, Carriage, .38 - 16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0040

Snapper 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0050

Snapper 1921332SM

SCREW, Hex Head Cap, 5/16-18 X 3/4, GR5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0060

Snapper 703338

CAPSCREW, Hex Head, 1/4-20 x 5/8, GR5

$3.99

$

Usually ships in 2-12 days

0

0070

Snapper 2106774ASM

DEFLECTOR

$29.99

$

Usually ships in 2-12 days

0

0080

Snapper 703822

CAPSCREW, Hex Head, 5/16 - 18 x 5/8, G5

$4.49

$

In Stock, only 1 left!

0

0090

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0100

Snapper 1721840ASM

ROTOR ASSEMBLY, 42"

$817.99

$

In Stock, only 1 left!

0

0110

Snapper 1733105SM

BEARING, W/Lock Collar

$57.99

$

In Stock, Qty 19

0

0120

Snapper 2172278ASM

FLANGE, Bearing, (SN 1200 and above)

$11.99

$

In Stock, Qty 6

0

0130

Snapper 1676632ASM

PLATE, Side

$44.99

$

Usually ships in 2-12 days

0

0140

Snapper 1756390AYP

SPROCKET, 24 Teeth
(Superseded to 1756390YP)

$81.99

$

Usually ships in 2-12 days

0

0150

Snapper 2151040SM

KEY, Hi-Pro, HP-608

$9.49

$

In Stock, only 2 left!

0

0160

Snapper 2106746ASM

SCRAPER, Body (1690513 Only) 42"

$158.99

$

In Stock, only 3 left!

0

0170

Snapper 703954

NUT, Centrelock, 1/4-20, GR5
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0180

Snapper 1675232SM

SPRING, Extension, 9" Long

$20.99

$

Usually ships in 2-12 days

0

0190

Snapper 1733145SM

TURNBUCKLE, 5/16 - 19 x 9-1/4

$56.99

$

Usually ships in 2-12 days

0

0200

Snapper 1732992ASM

CLIP, Spring

$16.99

$

Usually ships in 2-12 days

0

0210

Snapper 1733262SM

HARNESS, Wiring Spout Rotate, 42"

$33.99

$

Usually ships in 2-12 days

0

0220

Snapper 1733276SM

HARNESS, Wiring Motor/Trailer, 42"

$40.99

$

Usually ships in 2-12 days

0

0230

Snapper 1724210SM

SWITCH, Rocker, Chute Rotator

$54.99

$

In Stock, only 1 left!

0

0240

Snapper 2172434SM

CLIP, Wire, .390 Dia.

$4.99

$

Usually ships in 2-12 days

0

0250

Snapper 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0260

Snapper 703164

NUT, Hex Center Lock, 5/16-18, GRB

$3.49

$

In Stock, Qty 18

0

0270

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

0280

Snapper 1928721SM

SETSCREW, Square Head, 5/16-18 x 1/2, G8

$4.99

$

In Stock, only 2 left!

0

0290

Snapper 1751630YP

HARNESS, Spout Rotator to Tractor

$32.99

$

Usually ships in 2-12 days

0
