1696422-00 - Simplicity 47" Two- Stage Snow Thrower Attachment Auger Group (991151) Parts Diagram

47" Two- Stage Snow Thrower Attachment

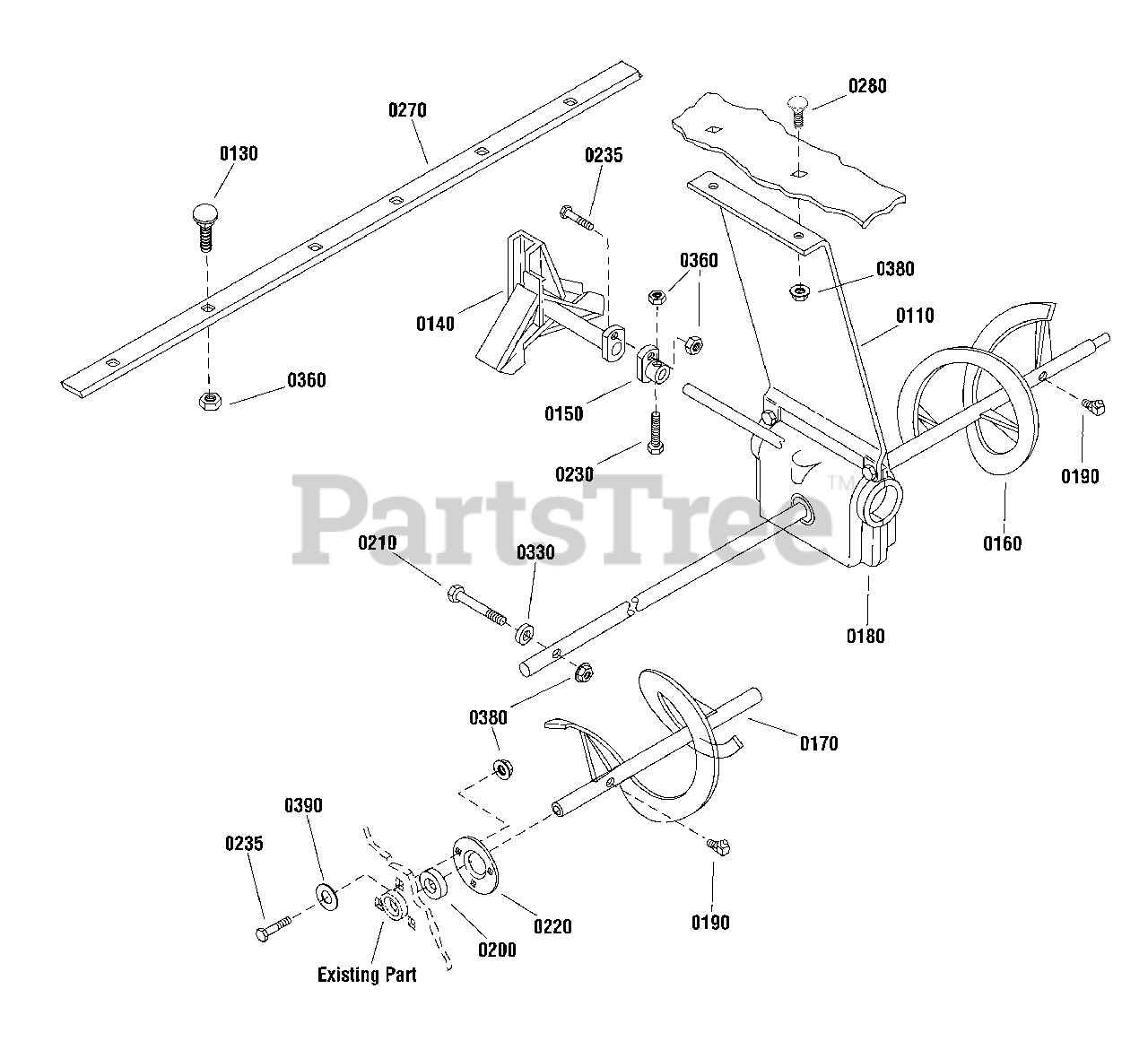

Auger Group (991151) Parts Diagram

  • Title

0110

Simplicity 1709683AYP

SUPPORT, Auger

$

$

Not available

0130

Simplicity 703800

CARRIAGE BOLT, 5/16-18 x 1

$3.99

$

In Stock, Qty 7

0

0140

Simplicity 1709681SM

IMPELLER ASSEMBLY W/BUSHINGS

$658.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1721757ASM

PLATE & TUBE ASSEMBLY

$59.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1709678ASM

AUGER ASSEMBLY, RH

$445.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1709679ASM

AUGER ASSEMBLY, LH

$372.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1756181YP

AUGER GEAR BOX & SHAFT ASSEMBLY

$1253.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703907

FITTING, Lube

$4.99

$

In Stock, Qty 20+

0

0200

Simplicity 1733105SM

BEARING, Ball

$57.99

$

In Stock, Qty 20+

0

0210

Simplicity 5025011X20SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

0220

Simplicity 1756855YP

FLANGE, Bearing

$

$

Not available

0230

Simplicity 703867

CAPSCREW, Hex Head 5/16-18 x 2 G5

$4.99

$

In Stock, only 4 left!

0

0235

Simplicity 703408

GARRIAGE BOLT, 5/16-18 x 7/8

$4.99

$

In Stock, Qty 14

0

0270

Simplicity 1720248ASM

SCRAPER, Cutting Edge, 45-3/4"

$190.99

$

Usually ships in 2-12 days

0

0280

Simplicity 703185

CARRIAGE BOLT, 5/16-18 x 3/4

$3.49

$

In Stock, Qty 16

0

0330

Simplicity 703350

WASHER, 5/16

$4.49

$

In Stock, only 3 left!

0

0360

Simplicity 703902

NUT, Hex NyLock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0380

Simplicity 703115

NUT, NyLock Flange, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0390

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0
