1696412-00 - Simplicity 48" FAB Mower Deck 48" (122cm) Mower Deck - Height Adjust & Roller Group Parts Diagram

48" FAB Mower Deck

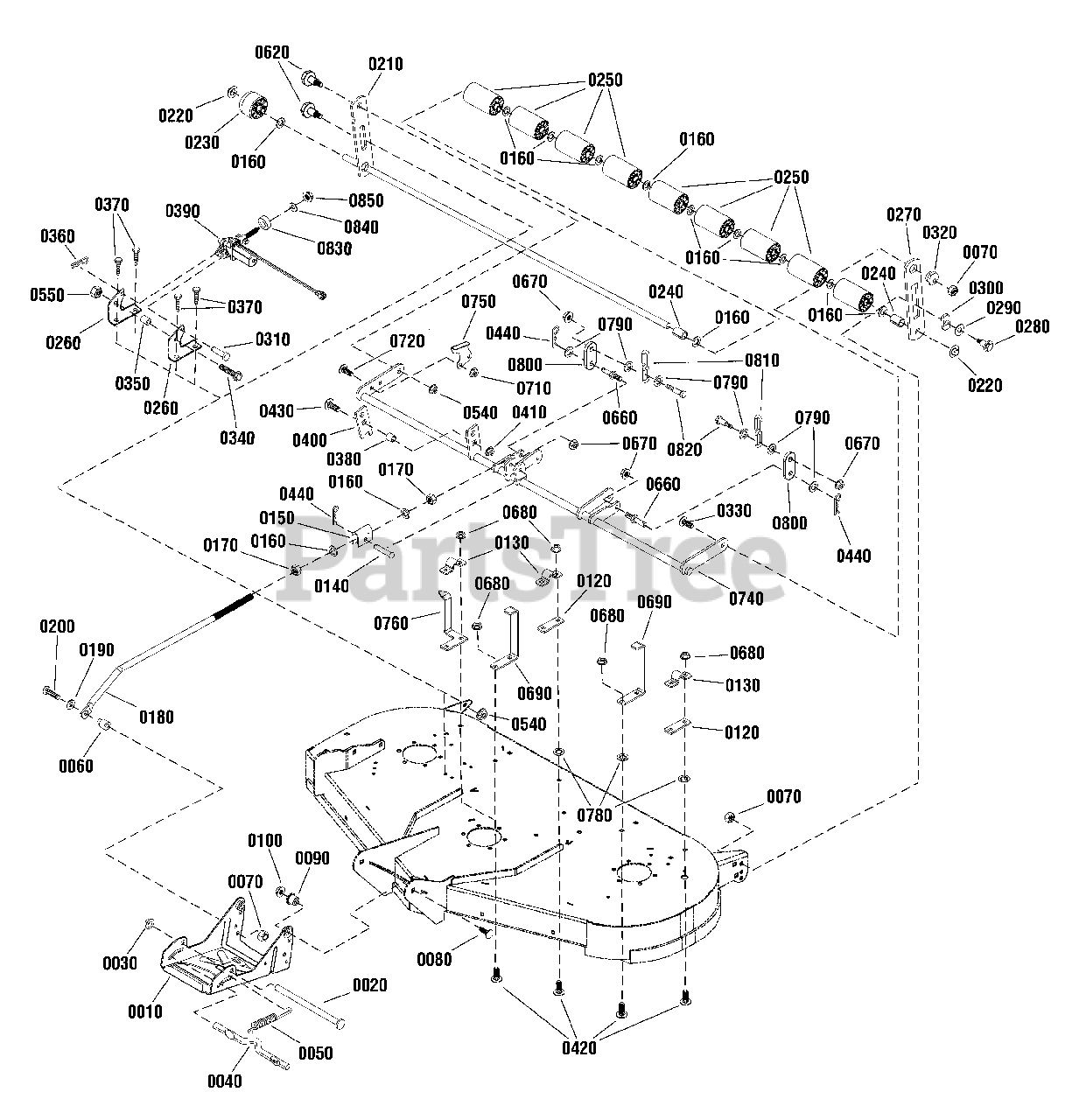

48" (122cm) Mower Deck - Height Adjust & Roller Group Parts Diagram

  • Title

0010

Simplicity 1737563AYP

HITCH
(Superseded to 1760192AYP)

$155.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1713578SM

ROD, 1/2" Dia., 7-5/8" Long

$15.99

$

In Stock, only 1 left!

0

0030

Simplicity 703179

PUSHNUT, 1/2

$3.49

$

In Stock, Qty 20+

0

0040

Simplicity 1715759SM

ROD, 3/8 x 8

$7.99

$

In Stock, Qty 11

0

0050

Simplicity 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 20+

0

0060

Simplicity 1706644SM

SPACER, .380/.377 I.D. x .750 O.D. x .970 Long

$8.49

$

In Stock, only 2 left!

0

0070

Simplicity 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 7

0

0080

Simplicity 7091945YP

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 2 left!

0

0090

Simplicity 1732443SM

SPACER, 3/8 x 3/4 x 3/4

$5.99

$

In Stock, Qty 20+

0

0100

Simplicity 1919439SM

NUT, Hex Lock, ESNA LIGHT, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0120

Simplicity 1757527YP

SPACER, Bearing Strap

$9.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1665374BMYP

STRAP, Rocker Shaft

$

$

Not available

0140

Simplicity 704241

PIN, Round Head, 3/8 X 2

$9.99

$

In Stock, only 2 left!

0

0150

Simplicity 170664ASM

TRUNNION

$

$

Not available

0160

Simplicity 703580

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

0170

Simplicity 703912

NUT, Hex, 5/8-11

$3.49

$

In Stock, Qty 5

0

0180

Simplicity 1757517YP

ROD, Pitch

$64.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0200

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 13

0

0210

Simplicity 1759073AYP

SHAFT, Roller

$

$

Not available

0220

Simplicity 1960520SM

NUT, Push, 5/8
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

0230

Simplicity 1717675SM

ROLLER, .650 ID, 2.5" OD, 2.05" Long, Rounded End

$6.99

$

In Stock, Qty 20+

0

0240

Simplicity 1709195SM

SPACER, .66 X 7/8 X 1 1/4

$5.99

$

In Stock, Qty 20+

0

0250

Simplicity 1668513SM

ROLLER, .652 ID, 2.50 OD, 4.10 LG

$10.99

$

In Stock, Qty 20+

0

0260

Simplicity 1758814AYP

BRACKET, Mounting

$9.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1759070AYP

SUPPORT, LH

$

$

Not available

0280

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34, 1/2 Shoulder

$6.99

$

In Stock, Qty 20+

0

0290

Simplicity 703451

WASHER, Flat, 17/32 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

0300

Simplicity 1677507SM

SLIDE, .803 x 1.7

$6.99

$

In Stock, only 3 left!

0

0310

Simplicity 703063

PIN, Sheer, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0

0320

Simplicity 1704082SM

NUT, Hex Adjusting, 11/16

$5.49

$

In Stock, Qty 15

0

0330

Simplicity 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 4 left!

0

0340

Simplicity 704288

CAPSCREW, Hex Head, 5/16-18 x 1 3/4

$4.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1733068SM

SPACER, 0.39 x 3/4 x 0.965

$13.99

$

Usually ships in 2-12 days

0

0360

Simplicity 704039

CLIP, Hair Pin

$4.49

$

In Stock, Qty 9

0

0370

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0380

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

0390

Simplicity 1753528SM

MOTOR, Deck Lift

$

$

Not available

0400

Simplicity 1733776ASM

ARM, Rear

$

$

Not available

0410

Simplicity 1960689SM

NUT, Hex, Toplock Flange,1/2-13

$3.49

$

Usually ships in 2-12 days

0

0420

Simplicity 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 7

0

0430

Simplicity 1960706SM

BOLT, Carriage, Short Neck, 1/2-13 x 2

$5.99

$

Usually ships in 2-12 days

0

0440

Simplicity 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0540

Simplicity 15X112MA

NUT, Hex Flange, Serrated, 1/2-20

$5.49

$

In Stock, only 2 left!

0

0550

Simplicity 1927557SM

NUT, Hex Flange Lock, Large, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

0620

Simplicity 7092017YP

BOLT, 1/2-20 X 1.15, 5/8 Shoulder

$7.99

$

In Stock, only 2 left!

0

0660

Simplicity 703816

PIN, Threaded, Shoulder

$12.99

$

Usually ships in 2-12 days

0

0670

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0680

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0690

Simplicity 1758755AYP

UPSTOP

$16.99

$

Usually ships in 2-12 days

0

0710

Simplicity 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0720

Simplicity 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

0740

Simplicity 1757829AYP

WELD, Rocker Shaft

$164.99

$

Usually ships in 2-12 days

0

0750

Simplicity 1757997AYP

BRACKET, Height of Cut

$16.99

$

Usually ships in 2-12 days

0

0760

Simplicity 1757998BMYP

INDICATOR, Height of Cut

$17.99

$

Usually ships in 2-12 days

0

0780

Simplicity 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0790

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 10

0

0800

Simplicity 1758923AYP

LINK, Transport

$12.99

$

Usually ships in 2-12 days

0

0810

Simplicity 1731383ASM

CHAIN, 2 Link, 2-13/16 LG

$6.49

$

In Stock, only 2 left!

0

0820

Simplicity 703871

CAPSCREW, Hex Head, 3/8-16 X 1 1/4

$4.99

$

Usually ships in 2-12 days

0

0830

Simplicity 5044609SM

SPACER, .52 X 1.00 X .38, CZ

$6.49

$

Usually ships in 2-12 days

0

0840

Simplicity 1921319SM

WASHER, 1/4, x 5/8 OD
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0850

Simplicity 1960757SM

NUT, Hex, 1/4-20 L.H. Thread

$5.49

$

Usually ships in 2-12 days

0
