1696399-00 - Brute 27" Snow Thrower, 11.5 Gross TP (2015) Auger Drive Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

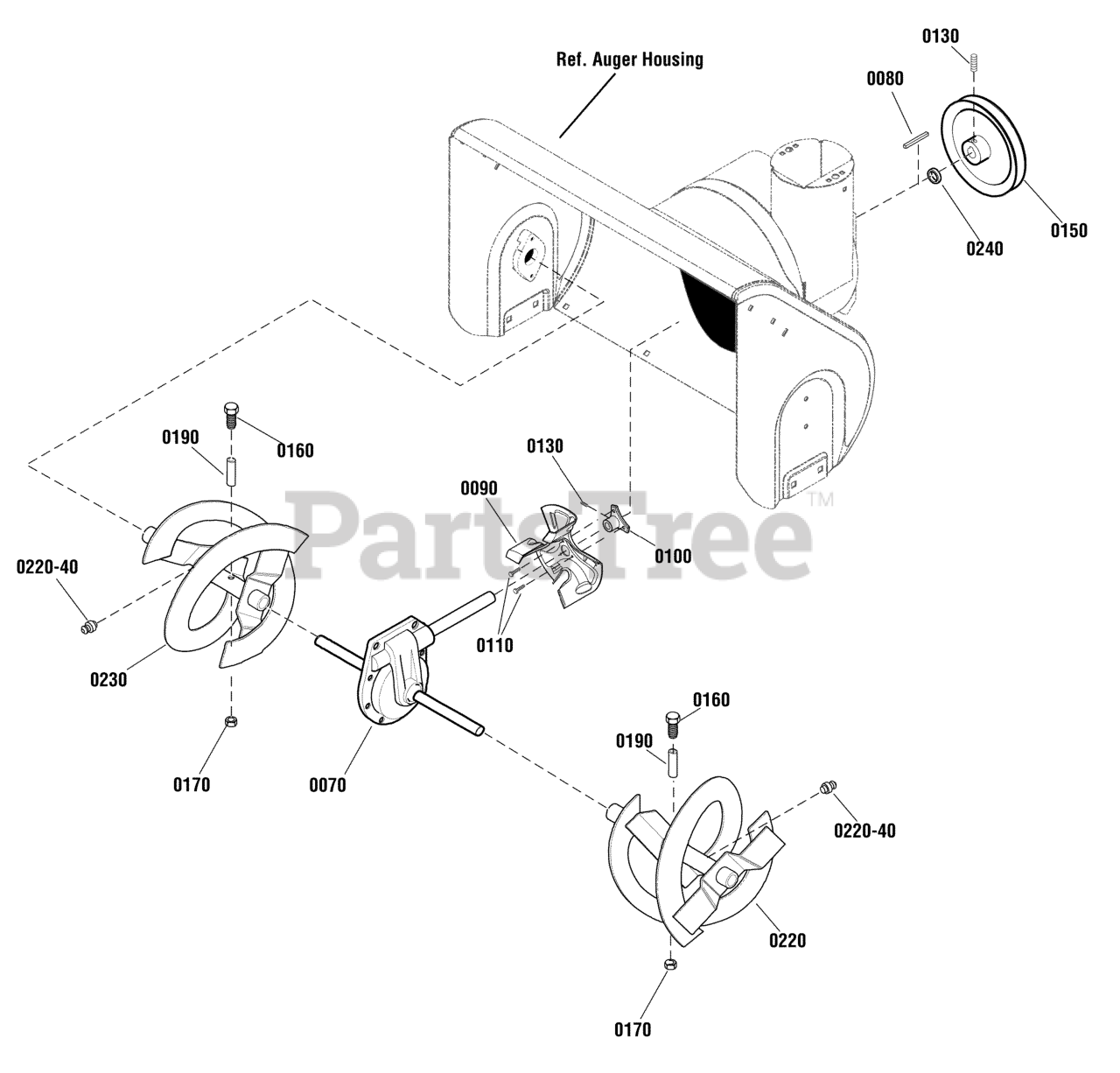

Auger Drive Group Parts Diagram

  • Title

0070

Murray 1752897YP

GEAR CASE ASSEMBLY, 27"

Note: (27" Models Only)

$683.99

$

Usually ships in 2-12 days

0

0070

Murray 1752898YP

GEAR CASE ASSEMBLY, 29"

Note: (29" Models Only)

$706.99

$

Usually ships in 2-12 days

0

0080

Murray 2001022MA

KEY, Square, 3/16 x 3/4

$4.49

$

In Stock, Qty 11

0

0090

Murray 1739094BCYP

IMPELLER

$

$

Currently unavailable

0100

Murray 1739073YP

HUB, Impeller

$23.99

$

In Stock, only 4 left!

0

0110

Murray 1930601SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0130

Murray 7090848SM

SET SCREW, Socket Head, 5/16-18 x 1/2

$10.99

$

In Stock, only 1 left!

0

0150

Murray 1501211MA

PULLEY, 8.4 V4L.67 ID, Hybrid

$71.99

$

In Stock, only 3 left!

0

0160

Murray 9524MA

CAPSCREW, Hex Head, 1/4-20 x 1-3/4
(Superseded to 703057)

$5.99

$

In Stock, only 1 left!

0

0170

Murray 73826MA

NUT, Hex Center Lock, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0190

Murray 3943MA

SPACER, Sleeve 1/4 x 1/2
(Superseded to 703058)

$7.49

$

In Stock, only 4 left!

0

0220

Murray 1740736BCYP

AUGER, LH, 27"
(Superseded to 1740736BOYP)

Note: (Includes Ref. 0220-40)

$159.99

$

Usually ships in 2-12 days

0

0220

Murray 1740738BCYP

AUGER, LH, 29"

Note: (Includes Ref. 0220-40)

$142.99

$

Usually ships in 2-12 days

0

0220-40

Murray 10104MA

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0230

Murray 1740737BCYP

AUGER, RH, 27"
(Superseded to 1740737BOYP)

Note: (Includes Ref. 0220-40)

$

$

Not available

0230

Murray 1740739BCYP

AUGER, RH, 29"

Note: (Includes Ref. 0220-40)

$142.99

$

Usually ships in 2-12 days

0

0240

Murray 1501158MA

SPACER, Pulley

Note: (29" Models Only)

$4.99

$

In Stock, Qty 10

0

--

Murray 1501216MA

KIT, Shear Bolt

Note: (Includes Ref. Nos. 0160, 0170 & 0190)

$4.99

$

In Stock, Qty 20+

0
