1696391-00 (CM 741450 SE) - Canadiana 29" Snow Thrower, Canada (2013) Auger Housing Group Parts Diagram

29" Snow Thrower, Canada

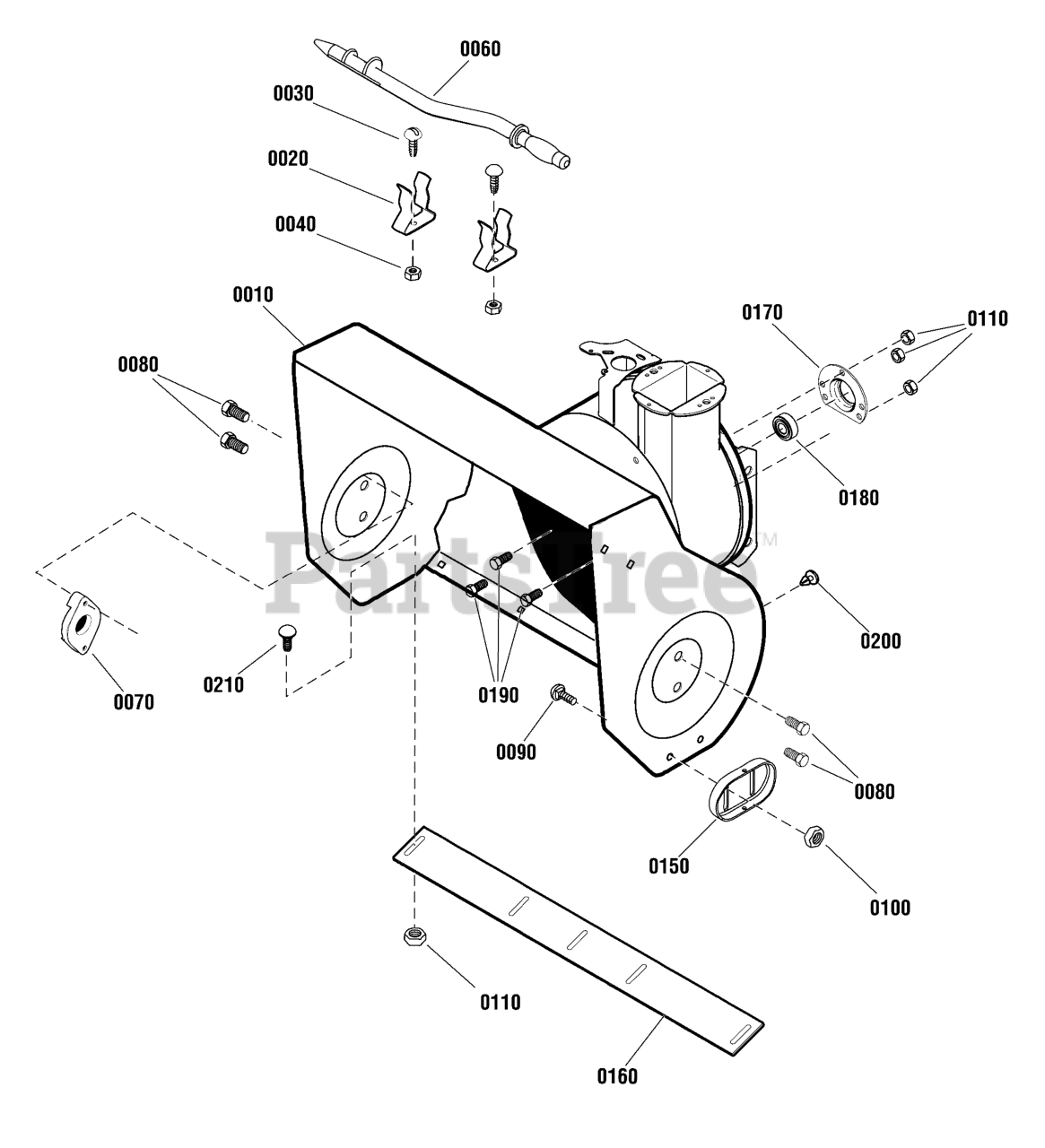

Auger Housing Group Parts Diagram

  • Title

0010

Murray 1687755YP

HOUSING, Auger, 29"

$

$

Not available

0020

Murray 1736620YP

CLIP, Retainer

$6.49

$

In Stock, only 2 left!

0

0030

Murray 1960569SM

SCREW, Truss Head, Torx #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 7091290SM

NUT, Hex Lock, Nylon, #10C
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0060

Murray 1736094YP

BRUSH, Cleanout

$34.99

$

In Stock, only 4 left!

0

0070

Murray 53757MA

BEARING, Auger

$9.99

$

In Stock, only 2 left!

0

0080

Murray 25X021MA

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 7091790YP

BOLT, 3/8-16 x 1-1/4
(Superseded to 703130)

$3.99

$

In Stock, Qty 13

0

0100

Murray 7091619SM

NUT, Hex Flange, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0110

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Murray 1750222YP

SKID SHOE, Reversable

$37.99

$

In Stock, only 3 left!

0

0160

Murray 1738334BMYP

BLADE, Scraper, 29

$47.99

$

In Stock, only 4 left!

0

0170

Murray 1756809YP

RETAINER, Ball Bearing

$10.99

$

In Stock, only 4 left!

0

0180

Murray 1705897SM

BEARING, Ball

$8.49

$

In Stock, Qty 20+

0

0190

Murray 001X45MA

BOLT, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

0200

Murray 760040MA

PLUG, Panel

$4.49

$

Usually ships in 2-12 days

0

0210

Murray 7090799SM

BOLT, Carriage, 5/16-18 x 5/8, G5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0
