1696366-00 - Simplicity Turbo Collection System for 61" FAB Mower Deck Mounting Group (5303662) Parts Diagram

Turbo Collection System for 61" FAB Mower Deck

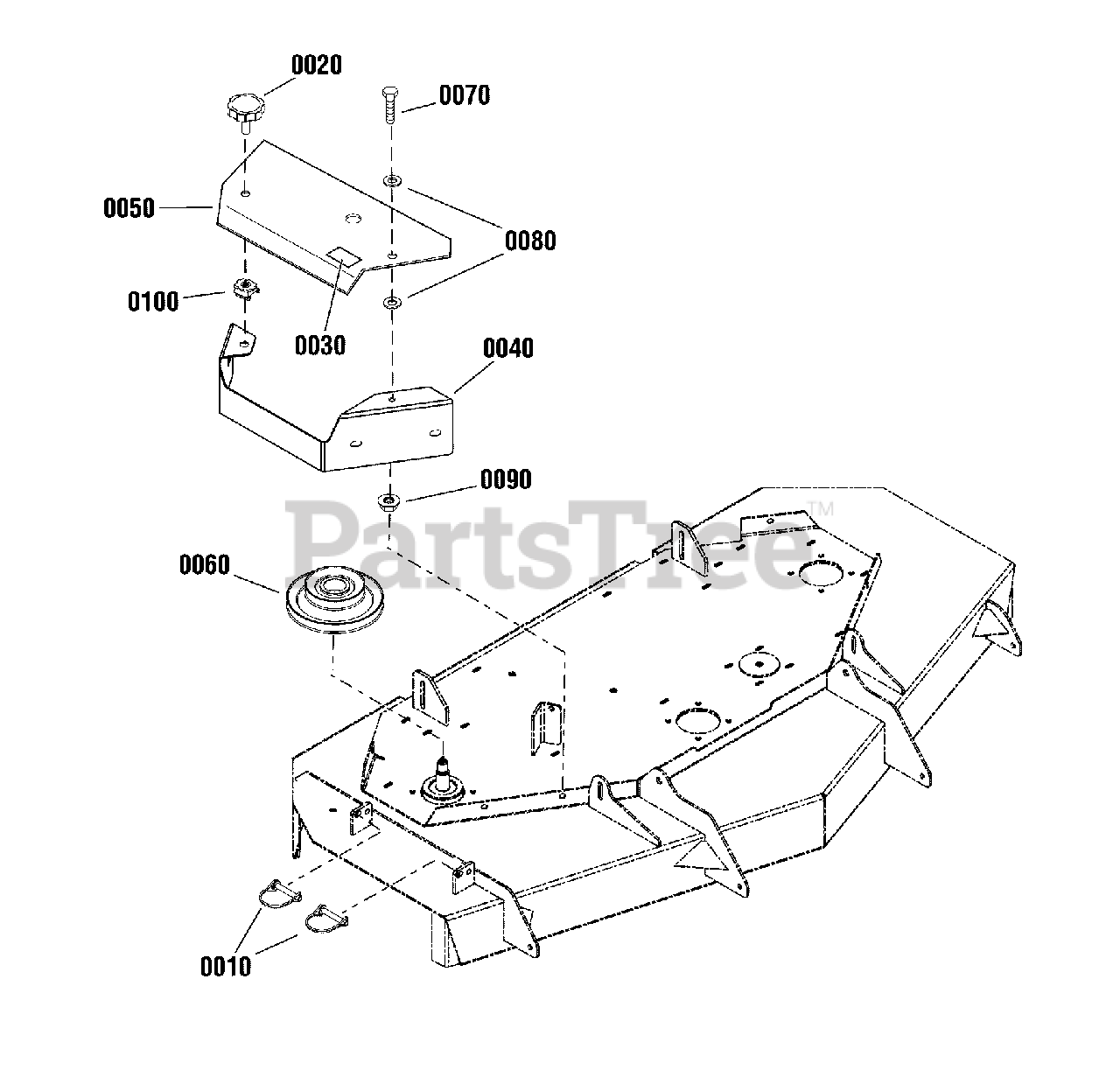

Mounting Group (5303662) Parts Diagram

  • Title
0010

Simplicity 5100847SM

SNAPPERPIN, 5/16 X 2

$16.99

$

In Stock, only 1 left!

0

0020

Simplicity 5101731YP

KNOB, Rosette, 5/16-18 X 1

$10.99

$

In Stock, only 4 left!

0

0030

Simplicity 5103184YP

DECAL, Warning, Hand in Belt

$13.99

$

Usually ships in 2-12 days

0

0040

Simplicity 706051

GUARD, Deck

$136.99

$

Usually ships in 2-12 days

0

0050

Simplicity 706050

PLATE, Top Guard

$125.99

$

Usually ships in 2-12 days

0

0060

Simplicity 5046702SM

PULLEY, Deck

$220.99

$

Usually ships in 2-12 days

0

0070

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4, G5

$3.99

$

In Stock, Qty 20+

0

0080

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

0090

Simplicity 5025392SM

NUT, Hex, NyLock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0100

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, only 2 left!

0
