1696363-00 - Snapper Clean Sweep Triple Grass Catcher Triple Catcher Assembly Parts Diagram

Clean Sweep Triple Grass Catcher

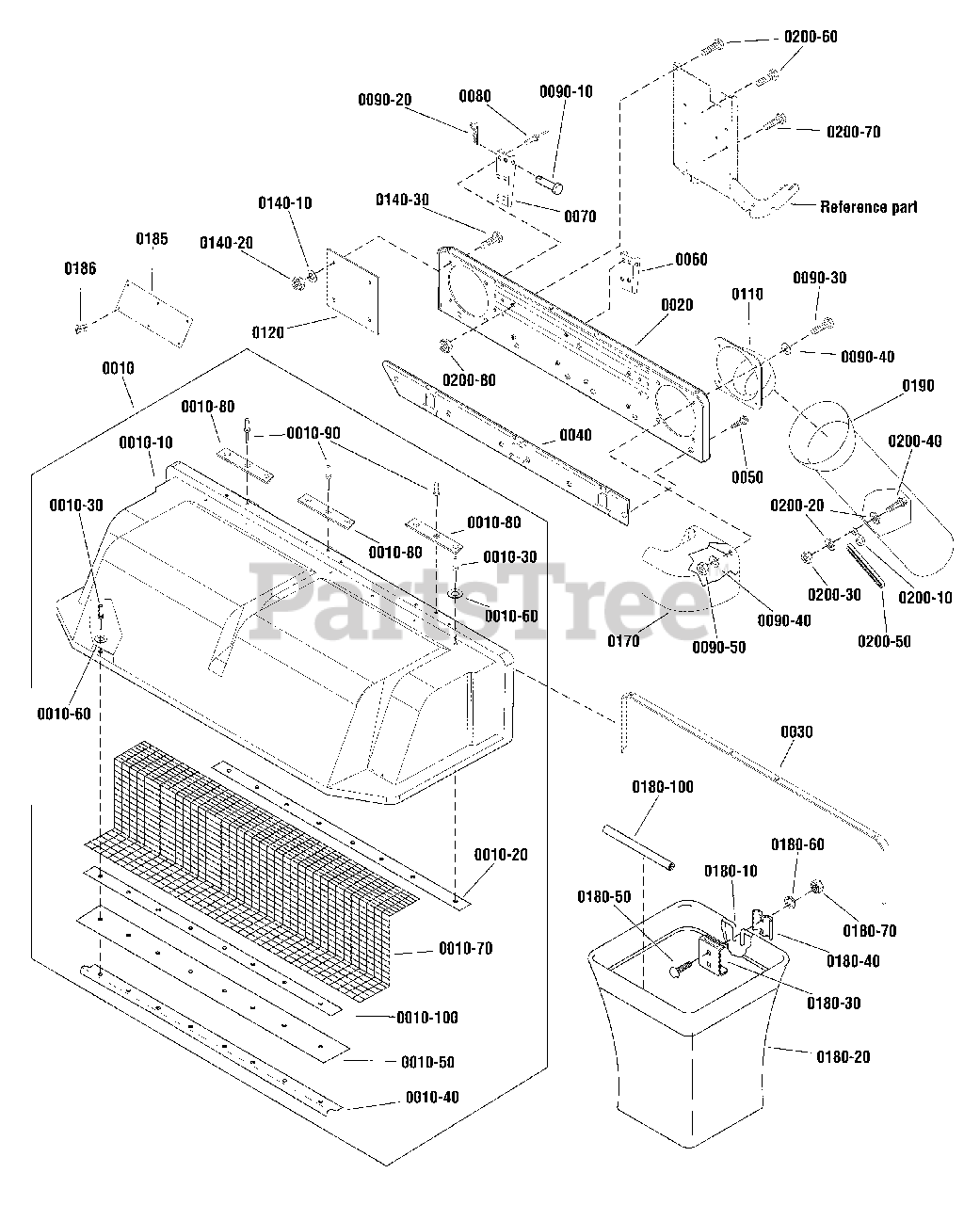

Triple Catcher Assembly Parts Diagram

  • Title

0010

Snapper 1717025SM

COVER & SCREEN ASSEMBLY
(Superseded to 3046862YP)

Note: (Includes Ref. No.0010-10 thru 0010-100)

$740.99

$

Usually ships in 2-12 days

0

0010-10

Snapper 1717026

* COVER, Grass Catcher
(Superseded to 3046862YP)

$740.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 1716970ASM

CLAMP

$42.99

$

Usually ships in 2-12 days

0

0010-30

Snapper 2825160SM

RIVET

$4.49

$

In Stock, Qty 8

0

0010-40

Snapper 1716972ASM

ANGLE, Screen

$42.99

$

In Stock, only 2 left!

0

0010-50

Snapper 1716968SM

SEAL

$32.99

$

Usually ships in 2-12 days

0

0010-60

Snapper 1910531SM

WASHER

$3.99

$

Usually ships in 2-12 days

0

0010-70

Snapper 1717041SM

SCREEN

$43.99

$

Usually ships in 2-12 days

0

0010-80

Snapper 1717067ASM

PLATE ASSSEMBLY

$30.99

$

Usually ships in 2-12 days

0

0010-90

Snapper 1960241SM

RIVET

$5.49

$

Usually ships in 2-12 days

0

0010-100

Snapper 1717524ASM

CLAMP, Seal

$13.99

$

In Stock, only 2 left!

0

0020

Snapper 1716966ASM

PLATE ASSEMBLY

$225.99

$

Usually ships in 2-12 days

0

0030

Snapper 1717082SM

SEAL

$70.99

$

Usually ships in 2-12 days

0

0040

Snapper 1716973ASM

BRACKET ASSEMBLY

$370.99

$

Usually ships in 2-12 days

0

0050

Snapper 1925003SM

CAPSCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

0060

Snapper 1720945SM

BRACKET, Hinge

$

$

Not available

0070

Snapper 1720875SM

BRACKET, Hinge

$

$

Not available

0080

Snapper 1928707SM

RIVET, Pop
(Superseded to 703981)

$4.49

$

In Stock, only 2 left!

0

--

Snapper 1660518

HARDWARE BAG

Note: (Not a Serviceable part)

$

$

Not available

0090-10

Snapper 1672344SM

PIN, Rolled 3/8 x 2-3/4

$6.49

$

In Stock, only 2 left!

0

0090-20

Snapper 1960074SM

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0090-30

Snapper 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0090-40

Snapper 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

Usually ships in 2-12 days

0

0090-50

Snapper 1919438SM

NUT, Hex Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0110

Snapper 1717038SM

DUCT INLET

$125.99

$

Usually ships in 2-12 days

0

0120

Snapper 1725969SM

COVER

$29.99

$

Usually ships in 2-12 days

0

--

Snapper 1756624

HARDWARE BAG

Note: (Not a Serviceable part)

$

$

Not available

0140-10

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

0140-20

Snapper 1919438SM

LOCKNUT, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0140-30

Snapper 1921332SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0170

Snapper 1717039SM

DEFLECTOR

$96.99

$

Usually ships in 2-12 days

0

0180-10

Snapper 1703855ASM

HOOP, Basket Frame

$139.99

$

Usually ships in 2-12 days

0

0180-20

Snapper 1703764SM

BAG, Grass

$96.99

$

In Stock, Qty 12

0

0180-30

Snapper 1703807ASM

HANGER

$21.99

$

In Stock, only 1 left!

0

0180-40

Snapper 1672023ASM

CLAMP

$11.99

$

Usually ships in 2-12 days

0

0180-50

Snapper 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0180-60

Snapper 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0180-70

Snapper 1917372SM

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0180-100

Snapper 1675707SM

EDGING

$6.49

$

In Stock, only 3 left!

0

0185

Snapper 1704405SM

DECAL, Warning
(Superseded to 1732820SM)

$77.99

$

In Stock, only 1 left!

0

0186

Snapper 1667248SM

CLIP, Canoe

$3.49

$

Usually ships in 2-12 days

0

0190

Snapper 1719807SM

CHUTE, Grass Catcher

$152.99

$

Usually ships in 2-12 days

0

--

Snapper 1756332

HARDWARE BAG

Note: (Not a Serviceable part)

$

$

Not available

0200-10

Snapper 1672689SM

S HOOK

$31.99

$

Usually ships in 2-12 days

0

0200-20

Snapper 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0200-30

Snapper 703232

LOCKNUT, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0200-40

Snapper 1924009SM

CAPSCREW, Hex Head 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

0200-50

Snapper 2172744SM

STRAP, Rubber

$18.99

$

Usually ships in 2-12 days

0

0200-60

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0200-70

Snapper 1960223SM

BOLT, Carriage, 5/16-18 x 1 1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

0200-80

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0
