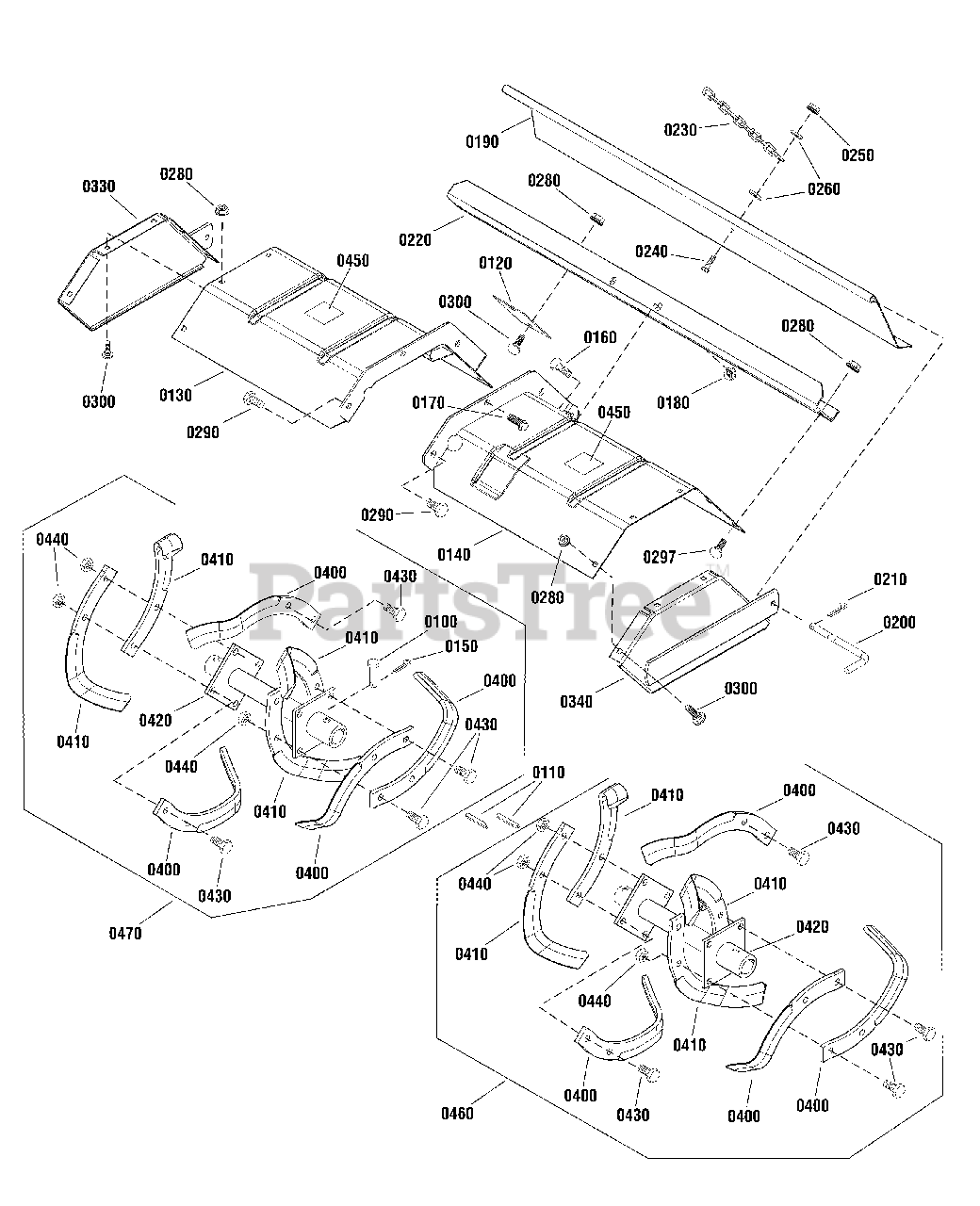

1696360-00 - Snapper 36" Tiller Attachment Tine & Deflector Group Parts Diagram

36" Tiller Attachment

Tine & Deflector Group Parts Diagram

  • Title

0100

Snapper 2105249SM

PIN

$16.99

$

Usually ships in 2-12 days

0

0110

Snapper 2105337SM

KEY

$8.49

$

In Stock, Qty 12

0

0120

Snapper 2105354ASM

SHIELD

$6.49

$

Usually ships in 2-12 days

0

0130

Snapper 2105369ASM

DEFLECTOR ASSEMBLY, R.H.

$233.99

$

Usually ships in 2-12 days

0

0140

Snapper 2105370ASM

DEFLECTOR ASSEMBLY, L.H.

$216.99

$

Usually ships in 2-12 days

0

0150

Snapper 1918451SM

PIN, Cotter

$3.99

$

Usually ships in 2-12 days

0

0160

Snapper 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

0170

Snapper 1933260SM

SCREW, Hex, Whizlock, 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

0180

Snapper 1930645SM

NUT, Hex, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0190

Snapper 1707945ASM

DEFLECTOR

$

$

Not available

0200

Snapper 1707939SM

ROD

$19.99

$

Usually ships in 2-12 days

0

0210

Snapper 1918448SM

PIN, Cotter

$4.49

$

Usually ships in 2-12 days

0

0220

Snapper 1707938ASM

CHANNEL

$70.99

$

Usually ships in 2-12 days

0

0230

Snapper 1707951SM

CHAIN

$

$

Not available

0240

Snapper 1924009SM

CAPSCREW, Hex Head, 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

0250

Snapper 1930642SM

NUT, Hex Head, Flange, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

0260

Snapper 1960353SM

WASHER
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

0280

Snapper 1927557SM

LOCKNUT, Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

0290

Snapper 1934654SM

CAPSCREW, Hex, Whizlock, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

0297

Snapper 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0300

Snapper 1931332SM

CARRIAGE BOLT, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0330

Snapper 1707990ASM

PLATE, End, R.H.

$45.99

$

Usually ships in 2-12 days

0

0340

Snapper 1707991ASM

PLATE, End, L.H.

$

$

Not available

0400

Snapper 2105375ASM

BLADE, Tine, L.H.

$

$

Not available

0410

Snapper 2105376ASM

BLADE, Tine, R.H.

$

$

Not available

0420

Snapper 1651504ASM

HUB & PLATE ASSEMBLY

$216.99

$

Usually ships in 2-12 days

0

0430

Snapper 1920353SM

CAPSCREW, Hex Head, 7/16-20 x 1-1/2

$3.99

$

Usually ships in 2-12 days

0

0440

Snapper 1928867SM

LOCKNUT, 7/16-20

$2.99

$

Usually ships in 2-12 days

0

0450

Snapper 1679700SM

DECAL, Safety

$18.99

$

Usually ships in 2-12 days

0

0460

Snapper 1650461SM

BLADE ASSEMBLY, Tine, L.H.

$

$

Not available

0470

Snapper 1650460SM

BLADE ASSEMBLY, Tine, R.H.

Note: (Excludes items 0100 & 0150)

$

$
