1696358-01 - Snapper Clean Sweep Triple Grass Catcher for 44" & 50" Mower Triple Catcher Assembly Parts Diagram

Clean Sweep Triple Grass Catcher for 44" & 50" Mower

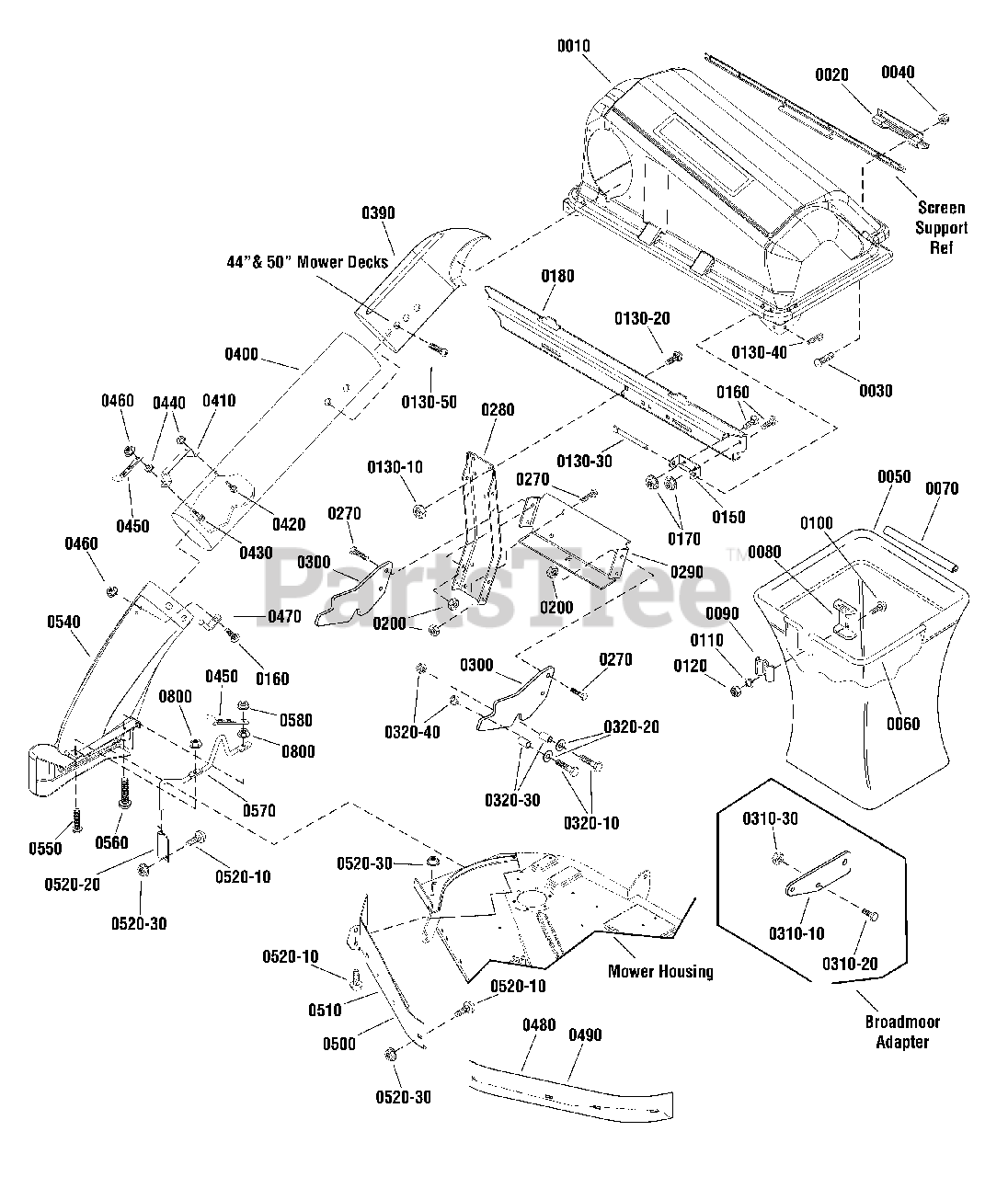

Triple Catcher Assembly Parts Diagram

  • Title

0010

Snapper 1736101SM

ASSEMBLY, Cover & Screen, Triple Catcher

$

$

Not available

0020

Snapper 720537

HANDLE, Plastic
(Superseded to 054537MA)

$18.99

$

Usually ships in 2-12 days

0

0030

Snapper 1960404SM

SCREW, Truss Head Phillips, 10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0

0040

Snapper 703412

NUT, Hex Lock, 10-24 w/Nylon Insert

$4.49

$

In Stock, only 2 left!

0

0050

Snapper 1733695SM

BAG, Triple Regular

$140.99

$

In Stock, only 2 left!

0

0060

Snapper 1733517SM

HOOP, Triple

$76.99

$

Usually ships in 2-12 days

0

0070

Snapper 1733709SM

EDGING, Tube Grass Bag

$16.99

$

In Stock, only 2 left!

0

0080

Snapper 1703807ASM

HANGER, Grass Bag

$21.99

$

In Stock, only 1 left!

0

0090

Snapper 1672023ASM

CLAMP, Grass Bag Plain

$11.99

$

Usually ships in 2-12 days

0

0100

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0110

Snapper 703116

LOCKWASHER, Spring, 5/16

$3.49

$

In Stock, Qty 20+

0

0120

Snapper 703465

NUT, Hex, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

--

Snapper 1756315

HARDWARE BAG, Catcher

Note: (Not a Serviceable part)

$

$

Not available

0130-10

Snapper 703793

NUT, Hex Whiz Lock Flange, 3/8-16

$4.49

$

In Stock, only 3 left!

0

0130-20

Snapper 1931350SM

BOLT, Carriage, 3/8-16 X 1, G5
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0130-30

Snapper 720525

PIN, Cover Hinge
(Superseded to 054407ZMA)

$14.99

$

In Stock, only 1 left!

0

0130-40

Snapper 1918196SM

PIN, Quick, 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

0130-50

Snapper 722855

SCREW, 1/4 X 3/4
(Superseded to 26X239MA)

$4.49

$

Usually ships in 2-12 days

0

0150

Snapper 1736886ASM

PIVOT, Hinge

$

$

Not available

0160

Snapper 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

0170

Snapper 703233

NUT, Serrated Flange, 1/4-20

$4.49

$

In Stock, Qty 5

0

0180

Snapper 1736080ASM

CROSS SUPPORT

$

$

Not available

0200

Snapper 703793

NUT, Hex Whiz Lock Flange, 3/8-16

$4.49

$

In Stock, only 3 left!

0

0270

Snapper 1920415SM

CAPSCREW, Hex-Head, 3/8-16 X 1-1/4, G5
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

0280

Snapper 1734223ASM

SUPPORT, Upright

$111.99

$

Usually ships in 2-12 days

0

0290

Snapper 1755433AYP

BRACKET, Lower Hitch

$189.99

$

Usually ships in 2-12 days

0

0300

Snapper 1755432AYP

SUPPORT, Side HItch

$117.99

$

Usually ships in 2-12 days

0

--

Snapper 1756310

HARDWARE BAG, Broadmoor Adapter

Note: (Not a Serviceable part)

$

$

Not available

0310-10

Snapper 1755436AYP

PLATE, Side

$80.99

$

Usually ships in 2-12 days

0

0310-20

Snapper 703407

CAPSCREW, Hex-Head, 3/8-16 X 1, G5

$11.99

$

In Stock, Qty 7

0

0310-30

Snapper 703793

NUT, Whiz Lock, 3/8-16

$4.49

$

In Stock, only 3 left!

0

--

Snapper 1756311

HARDWARE BAG, Hitch

Note: (Not a Serviceable part)

$

$

Not available

0320-10

Snapper 703794

CAPSCREW, Hex Head, 1/2-13 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

0320-20

Snapper 703451

WASHER, Flat, 17/32 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

0320-30

Snapper 1668662SM

SPACER, 1/2 ID x 1-9/32

$32.99

$

Usually ships in 2-12 days

0

0320-40

Snapper 703453

NUT, Hex Lock ESNA, 1/2-13

$5.99

$

Usually ships in 2-12 days

0

0390

Snapper 1733885SM

ELBOW, Upper Tube Poly

$103.99

$

Usually ships in 2-12 days

0

0400

Snapper 1734299SM

TUBE, Clear Poly

$140.99

$

In Stock, Qty 6

0

0410

Snapper 720533

HANDLE, Connect Tube
(Superseded to 720533FS)

$17.99

$

Usually ships in 2-12 days

0

0420

Snapper 720074

SCREW, 1/4-20 x 1/2
(Superseded to 004X24MA)

$4.49

$

Usually ships in 2-12 days

0

0430

Snapper 720076

SCREW, 1/4-20 x 1
(Superseded to 004X71MA)

$4.99

$

In Stock, only 4 left!

0

0440

Snapper 1928372SM

NUT, Hex Keps, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

0450

Snapper 2171600SM

STRAP, Hood

$7.99

$

In Stock, Qty 20+

0

0460

Snapper 1930642SM

NUT, Hex Flange Top-Lock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, Qty 6

0

0470

Snapper 720543

PIN, Latch
(Superseded to 054563MA)

$23.99

$

In Stock, only 2 left!

0

0480

Snapper 1716870ASM

BAFFLE, Blowout L.H. 50" Mower Deck

$164.99

$

In Stock, only 1 left!

0

0490

Snapper 1716879ASM

BAFFLE, Blowout L.H. 44" Mower Deck

$115.99

$

Usually ships in 2-12 days

0

0500

Snapper 1726364ASM

BAFFLE, Blowout R.H. 50" Mower Deck

$74.99

$

Usually ships in 2-12 days

0

0510

Snapper 1731990ASM

BAFFLE, Blowout R.H. 44" Mower Deck

$122.99

$

In Stock, only 1 left!

0

--

Snapper 1756313

HARDWARE BAG, Baffle & Boot

Note: (Not a Serviceable part)

$

$

Not available

0520-10

Snapper 703447

BOLT, Carriage, 5/16-18 x 5/8

$4.49

$

In Stock, Qty 20+

0

0520-20

Snapper 1726578ASM

PLATE, Chute Rod

$32.99

$

Usually ships in 2-12 days

0

0520-30

Snapper 703330

NUT, Hex Flange Whiz-Lock, 5/16-18

$4.99

$

In Stock, Qty 14

0

0540

Snapper 1734327SM

TUBE, Boot Poly

$

$

Not available

0550

Snapper 1960371SM

SCREW, Hex Head, 5/16-18 x 3/4

$5.49

$

Usually ships in 2-12 days

0

0560

Snapper 1930595SM

SCREW, Hex Whiz Lock Flange, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

0570

Snapper 1733946SM

ROD, Boot Mount, Deflector Prop, 44/50"

$44.99

$

Usually ships in 2-12 days

0

0580

Snapper 1935048SM

NUT, Hex Flange Two-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0800

Snapper 703793

NUT, Hex Whiz Lock Flange, 3/8-16

$4.49

$

In Stock, only 3 left!

0
