1696354-00 - Snapper Sleeve Hitch Kit 1696354-00 - Sleeve Hitch Parts Diagram

Sleeve Hitch Kit

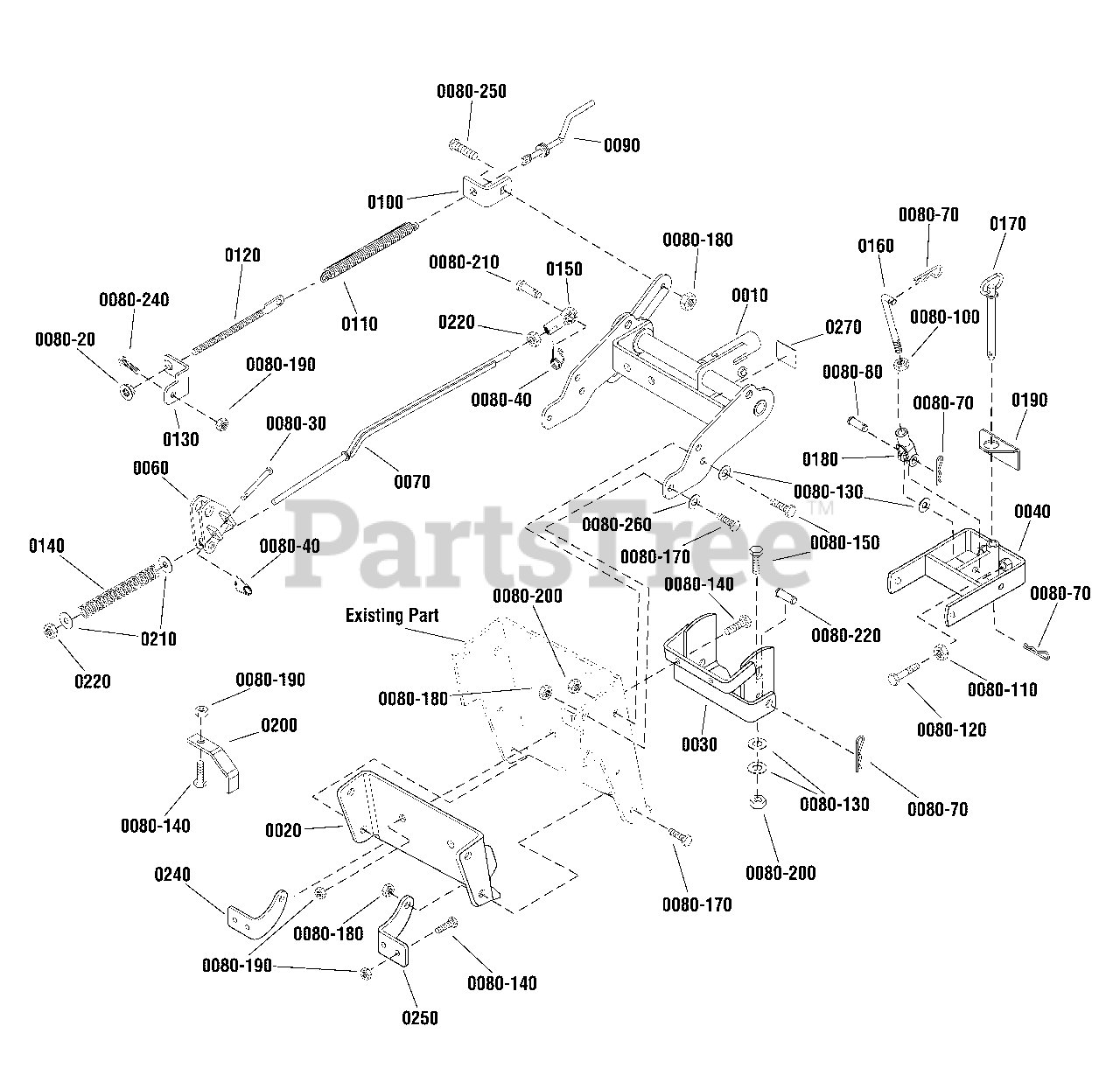

1696354-00 - Sleeve Hitch Parts Diagram

  • Title

0010

Snapper 1755746AYP

SLEEVE HITCH ASSEMBLY

$

$

Not available

0020

Snapper 1722608ASM

HITCH SUPPORT

$84.99

$

Usually ships in 2-12 days

0

0030

Snapper 1707470ASM

HITCH ASSEMBLY

$205.99

$

Usually ships in 2-12 days

0

0040

Snapper 1675373SM

CLEVIS ASSEMBLY

$

$

Not available

0060

Snapper 1756072AYP

LIFT LEVER ASSEMBLY

$626.99

$

Usually ships in 2-12 days

0

0070

Snapper 1756469YP

LIFT ROD ASSEMBLY

$843.99

$

Usually ships in 2-12 days

0

--

Snapper 1756703

HARDWARE BAG

Note: (Not a serviceable part, order parts seperately)

$

$

Not available

0080-20

Snapper 1960515SM

NUT, Hex Flange, 1/2-13

$5.49

$

Usually ships in 2-12 days

0

0080-30

Snapper 2105249SM

PIN, Round Head Drilled, 3/8 X 2 3/8

$16.99

$

Usually ships in 2-12 days

0

0080-40

Snapper 703852

PIN, Retainer

$4.49

$

In Stock, Qty 20+

0

0080-70

Snapper 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0

0080-80

Snapper 5025479YP

PIN, Clevis, 1/2 X 1.36

$3.99

$

In Stock, only 2 left!

0

0080-100

Snapper 703903

NUT, Hex, Jam 1/2-20

$3.49

$

In Stock, Qty 20+

0

0080-110

Snapper 703912

NUT, Hex, 5/8-11

$3.49

$

In Stock, Qty 5

0

0080-120

Snapper 1927430SM

CAPSCREW, Hex Head 5/8-11 x 2 1/4

$8.99

$

Usually ships in 2-12 days

0

0080-130

Snapper 703451

WASHER, 1/2

$4.49

$

In Stock, Qty 20+

0

0080-140

Snapper 703570

CAPSCREW, Hex Head, 5/16-18 X 1 1/4, GR5

$4.99

$

In Stock, Qty 10

0

0080-150

Snapper 703571

CAPSCREW, Hex Head, 1/2-13 1 1/2, GR5

$4.49

$

Usually ships in 2-12 days

0

0080-170

Snapper 703969

CAPSCREW, Hex Head, 3/8-16 X 1 1/4, GR8

$4.99

$

Usually ships in 2-12 days

0

0080-180

Snapper 703117

NUT, Ny Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0080-190

Snapper 703902

NUT, Ny Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0080-200

Snapper 703567

NUT, Lock, 1/2-13

$4.49

$

In Stock, only 2 left!

0

0080-210

Snapper 1756522YP

PIN, Yoke

$18.99

$

Usually ships in 2-12 days

0

0080-220

Snapper 2155037SM

PIN, Round Head Drilled, 7/16 X 1 3/4

$12.99

$

In Stock, only 1 left!

0

0080-240

Snapper 703410

BOLT, Serrated Flange, 5/16-18 X 1, GR5

$4.49

$

In Stock, only 2 left!

0

0080-250

Snapper 703815

BOLT, Round Head Short Neck, 3/8-16 X 1, GR5

$4.49

$

In Stock, only 4 left!

0

0080-260

Snapper 703590

WASHER, Flat, 3/8

$3.99

$

In Stock, Qty 12

0

0090

Snapper 1723840ASM

CRANK ASSEMBLY

$292.99

$

Usually ships in 2-12 days

0

0100

Snapper 1723841ASM

BRACKET, Crank

$75.99

$

Usually ships in 2-12 days

0

0110

Snapper 1723412SM

SPRING, Extension

$58.99

$

In Stock, only 1 left!

0

0120

Snapper 1757741YP

ROD, Threaded, 1/2-13 X 7 1/2

$187.99

$

Usually ships in 2-12 days

0

0130

Snapper 1757734AYP

BRACKET, Spring Anchor

$176.99

$

Usually ships in 2-12 days

0

0140

Snapper 1757487YP

SPRING, Compression

$182.99

$

Usually ships in 2-12 days

0

0150

Snapper 5103246YP

BALL JOINT, 3/4-16

$30.99

$

Usually ships in 2-12 days

0

0160

Snapper 1604349SM

ROD, Lift, 1/2 x 6 3/4

$

$

Not available

0170

Snapper 1716179SM

PIN, Hitch, 5/8 x 6 1/2

$33.99

$

Usually ships in 2-12 days

0

0180

2154304SM

YOKE, Adjusting

$

$

Not available

0190

Snapper 1603816SM

PLATE, Stabilizer

$24.99

$

Usually ships in 2-12 days

0

0200

Snapper 1757733AYP

DEFLECTOR, Lift Rod

$136.99

$

Usually ships in 2-12 days

0

0210

Snapper 1911386SM

WASHER, 3/4
(Superseded to 703992)

$4.49

$

Usually ships in 2-12 days

0

0220

Snapper 7092099YP

NUT, Hex, 3/4

$2.99

$

Usually ships in 2-12 days

0

0240

Snapper 1755917AYP

BRACKET, Suspension Lockout, RH

$95.99

$

Usually ships in 2-12 days

0

0250

Snapper 1755918AYP

BRACKET, Suspension Lockout, LH

$95.99

$

Usually ships in 2-12 days

0

0270

Snapper 1757810YP

DECAL, Caution

$13.99

$

Usually ships in 2-12 days
