1696323 YP - Simplicity Rear Weight Carrier Rear Weight Carrier Parts Diagram

Rear Weight Carrier

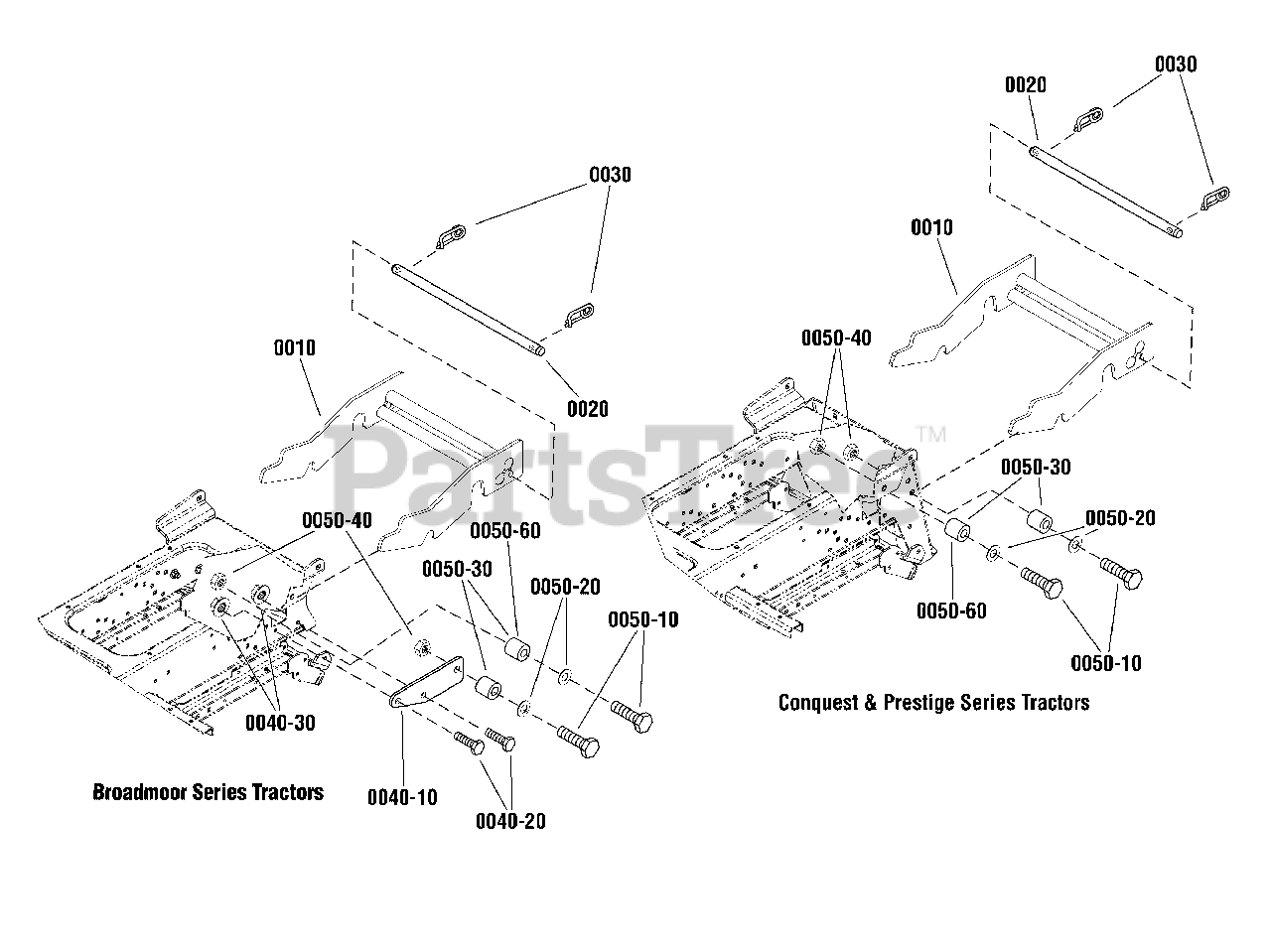

Rear Weight Carrier Parts Diagram

  • Title
0010

Simplicity 1755656AYP

HITCH, Rear Weight

$341.99

$

Usually ships in 2-12 days

0

0020

$

$

Not available

0030

Simplicity 703852

RETAINER, Pin Spring

$4.49

$

In Stock, Qty 20+

0

--

Simplicity 1756310

HARDWARE BAG

Note: (Not a Serviceable part.)

$

$

Not available

0040-10

Simplicity 1755436AYP

PLATE, Side Extension

$80.99

$

Usually ships in 2-12 days

0

0040-20

Simplicity 703407

CAPSCREW, Hex Head, 3/8-16 x 1

$11.99

$

In Stock, Qty 7

0

0040-30

Simplicity 703793

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 5

0

--

Simplicity 1756324

HARDWARE BAG

Note: (Not a Serviceable part.)

$

$

Not available

0050-10

Simplicity 703856

CAPSCREW, Hex Head, 1/2-13 x 2 1/4

$12.99

$

Usually ships in 2-12 days

0

0050-20

Simplicity 703451

WASHER, Flat

$4.49

$

In Stock, Qty 20+

0

0050-30

Simplicity 703450

SPACER, .75 OD X .5 ID x .77"

$8.49

$

Usually ships in 2-12 days

0

0050-40

Simplicity 703453

NUT, Lock, 1/2-13

$5.99

$

Usually ships in 2-12 days

0

0050-60

Simplicity 1722148SM

SPACER, .75 OD x .5 ID x 1.03"

Note: (Use on all Non-Suspensions Units)

$11.99

$

Usually ships in 2-12 days

0

--

Simplicity 1696323YP

KIT, Weight Carrier

$239.99

$

In Stock, only 2 left!

0
