1696303-00 - Snapper 46" Mower Deck 46" Mower Deck - Clutch Group Parts Diagram

46" Mower Deck

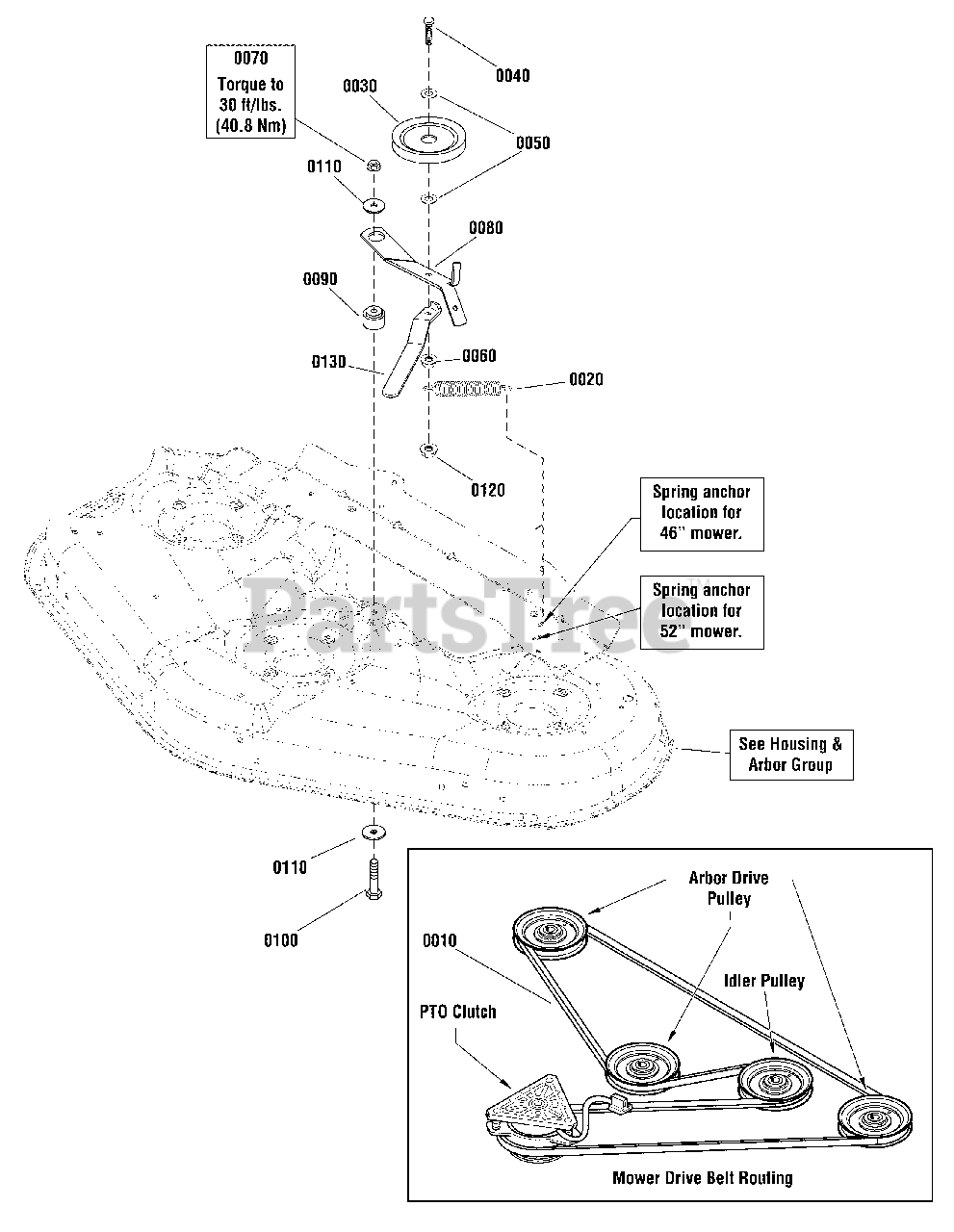

46" Mower Deck - Clutch Group Parts Diagram

  • Title

0010

Snapper 1719911SM

V-BELT, HA, A-Wedge, 117"

$56.99

$

In Stock, only 3 left!

0

0020

Snapper 1715772SM

SPRING, Extension, 5-1/4"

$13.99

$

In Stock, Qty 20+

0

0030

Snapper 1736540

PULLEY, Idler
(Superseded to 1736540YP)

$35.99

$

In Stock, only 2 left!

0

0040

Snapper 1933685

CAPSCREW, Hex Head, 3/8-16 x 2-1/2, G5
(Superseded to 1933685SM)

$5.49

$

In Stock, only 1 left!

0

0050

Snapper 1922755

WASHER, 3/8 x 1 OD
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

0060

Snapper 1931211

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0070

Snapper 1960339

NUT, Hex Flange, Mac Lock, Large, 3/8-16
(Superseded to 1922694SM)

$6.99

$

In Stock, Qty 20+

0

0080

Snapper 1736551A

ARM, Idler
(Superseded to 1736551AYP)

$31.99

$

In Stock, only 1 left!

0

0090

Snapper 1729007

SPACER, 0.387 ID x 1.50 OD x 1.04 LG
(Superseded to 1729007SM)

$11.99

$

In Stock, Qty 20+

0

0100

Snapper 1923701

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0110

Snapper 1924356

WASHER, 3/8 x 1-1/2 OD
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0120

Snapper 7091585

NUT, Center Lock, 3/8-16
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

0130

Snapper 1755653BMYP

HANDLE, Idler Arm

$24.99

$

Usually ships in 2-12 days

0
