1696282-00 - Brute 29" Snow Thrower, 14.5 Gross TP (2012) Auger Housing Group Parts Diagram

29" Snow Thrower, 14.5 Gross TP

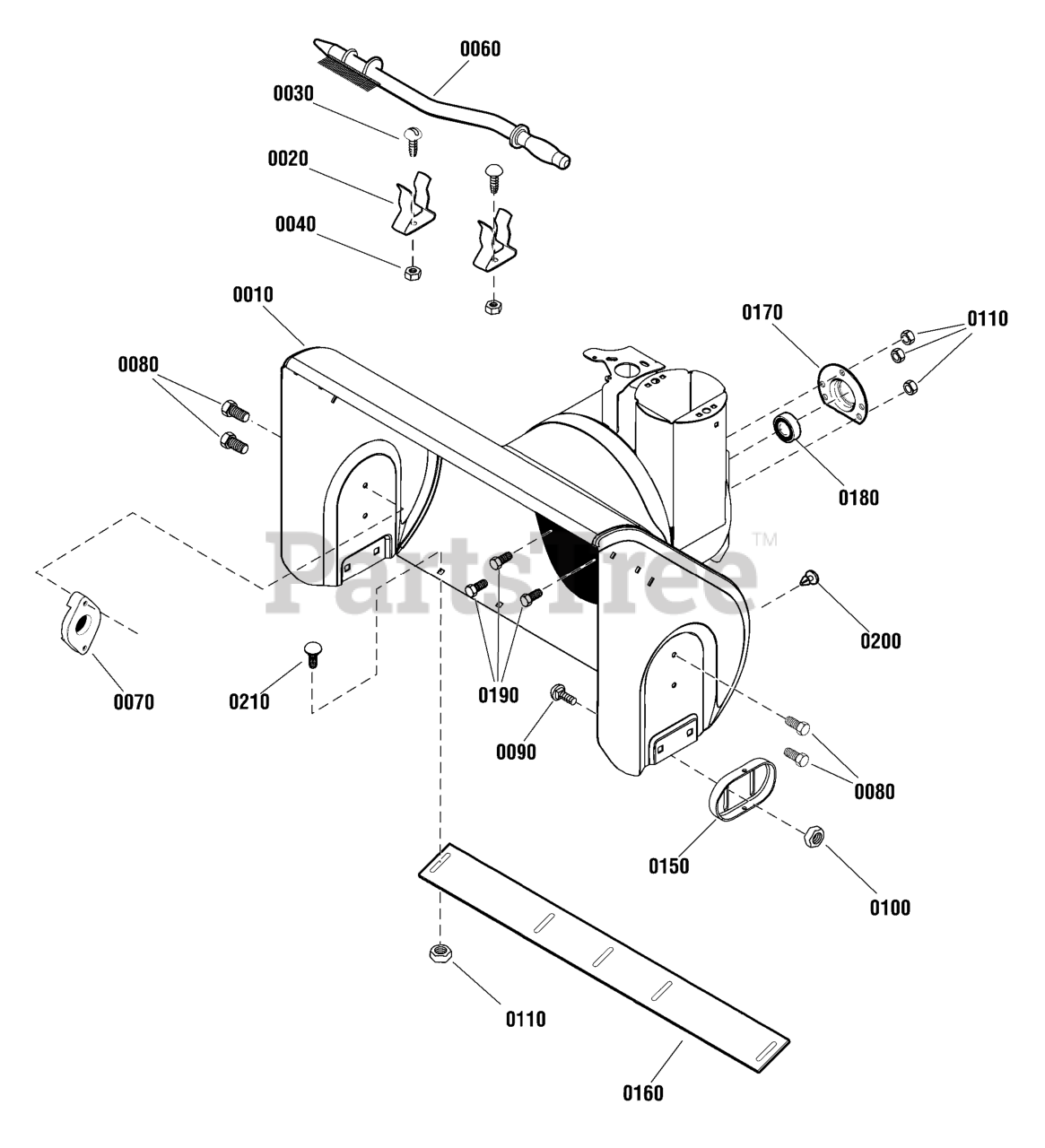

Auger Housing Group Parts Diagram

  • Title

0010

Murray 1687731YP

HOUSING, Auger, 29"

$712.99

$

Usually ships in 2-12 days

0

0020

Murray 1736620YP

CLAMP

$6.49

$

In Stock, only 2 left!

0

0030

Murray 1960569SM

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 703412

NUT, Nylock, 10 x 24

$4.49

$

In Stock, only 2 left!

0

0060

Murray 1736094YP

BRUSH, Cleanout

$34.99

$

In Stock, only 4 left!

0

0070

Murray 53757MA

BEARING, Auger Shaft

$9.99

$

In Stock, only 2 left!

0

0080

Murray 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0090

Murray 703130

BOLT, Carriage, 3/8-16 x 1-1/4

$3.99

$

In Stock, Qty 13

0

0100

Murray 703333

NUT, Hex Flange, 3/8-16

$4.99

$

In Stock, Qty 20+

0

0110

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0150

Murray 1750222YP

SKID, Height Adjust

$37.99

$

In Stock, only 3 left!

0

0160

Murray 1738334BMYP

BLADE, Scraper, 29"

$47.99

$

In Stock, only 4 left!

0

0170

Murray 582957YZMA

RETAINER, Ball Bearing
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

0180

Murray 1705897SM

BEARING, Ball

$8.49

$

In Stock, Qty 20+

0

0190

Murray 703822

CAPSCREW, Hex Head, 5/16-18 x 5/8

$4.49

$

In Stock, only 1 left!

0

0200

Murray 760040MA

PLUG, Panel

$4.49

$

Usually ships in 2-12 days

0

0210

Murray 703125

BOLT, Carriage, 5/16-18 x 5/8, G5

$3.99

$

In Stock, only 2 left!

0
