1696282-00 - Brute 29" Snow Thrower, 14.5 Gross TP (2012) Auger Drive Group Parts Diagram

29" Snow Thrower, 14.5 Gross TP

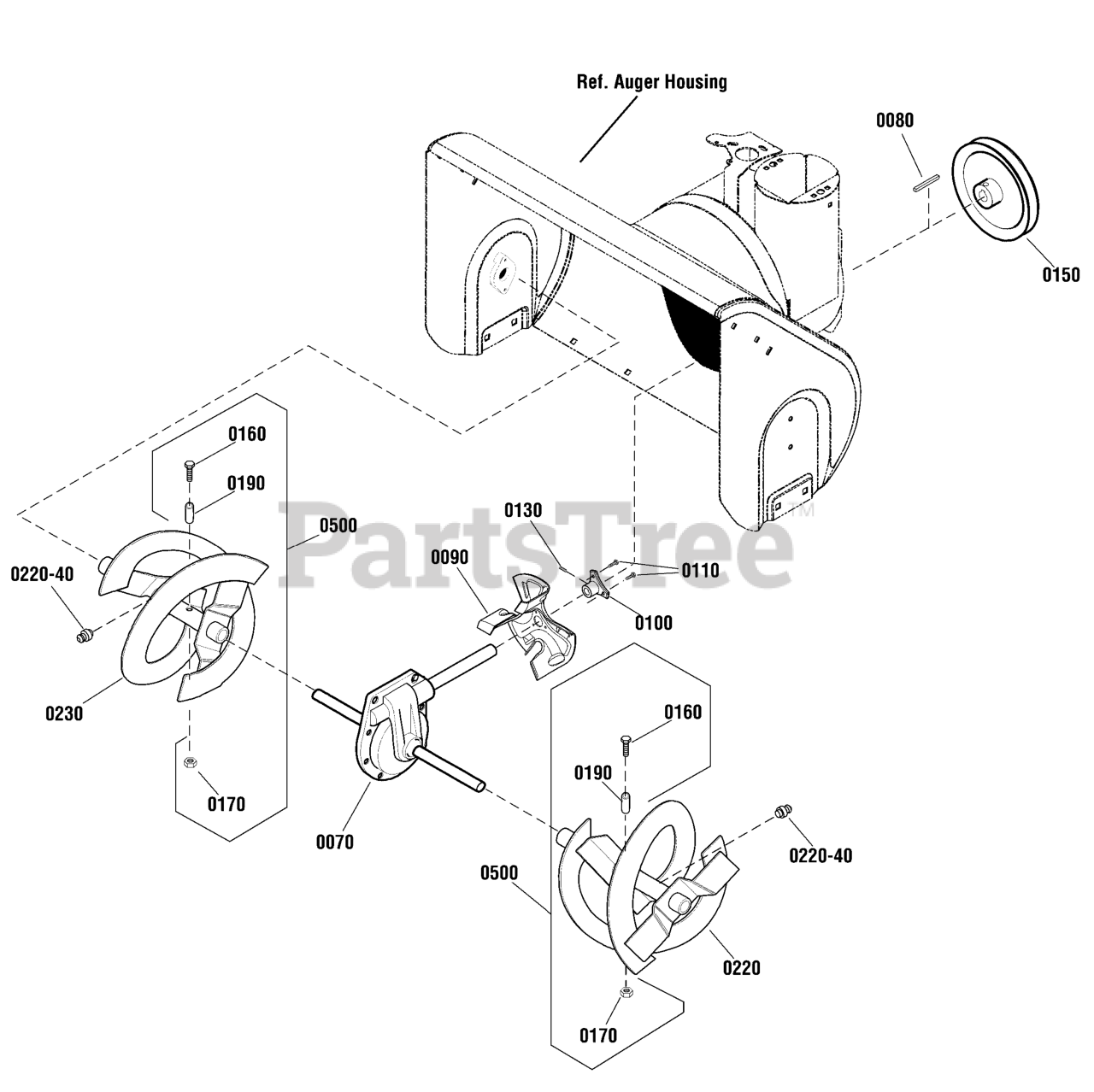

Auger Drive Group Parts Diagram

  • Title

0070

Murray 1752898YP

GEAR CASE ASSEMBLY, 29"

$706.99

$

Usually ships in 2-12 days

0

0080

Murray 056534MA

KEY, Square, 3/16 x 3/4

$4.99

$

In Stock, only 1 left!

0

0090

Murray 1739094BMYP

IMPELLER
(Superseded to 1687600YP)

$86.99

$

In Stock, Qty 17

0

0100

Murray 1739073YP

HUB, Impeller

$23.99

$

In Stock, only 4 left!

0

0110

Murray 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0130

Murray 7090848SM

SET SCREW, Socket Head, 5/16-18 x 1/2

$10.99

$

In Stock, only 1 left!

0

0150

Murray 1501211MA

PULLEY, 8.4 V4L .67 ID, Hybrid

$71.99

$

In Stock, only 3 left!

0

0160

Murray 703057

CAPSCREW, Hex Head, 1/4-20 x 1-3/4

$5.99

$

In Stock, only 3 left!

0

0170

Murray 703251

NUT, Hex Center Lock, 1/4-20

$4.99

$

In Stock, Qty 20+

0

0190

Murray 703058

SPACER, Sleeve, 1/4 x 1/2"

$7.49

$

In Stock, only 4 left!

0

0220

Murray 1738031BCYP

AUGER, L.H., 29"
(Superseded to 1738031BMYP)

Note: (Includes Ref. No. 0220-40)

$222.99

$

In Stock, only 1 left!

0

0230

Murray 1738032BCYP

AUGER, R.H., 29"

Note: (Includes Ref. No. 0220-40)

$

$

Not available

0220-40

Murray 10104MA

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0240

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, Qty 10

0

0500

Murray 1501216MA

KIT, Shear Bolt

Note: (Includes Ref. Nos. 0160, 0170 & 0190)

$4.99

$

In Stock, Qty 14

0
